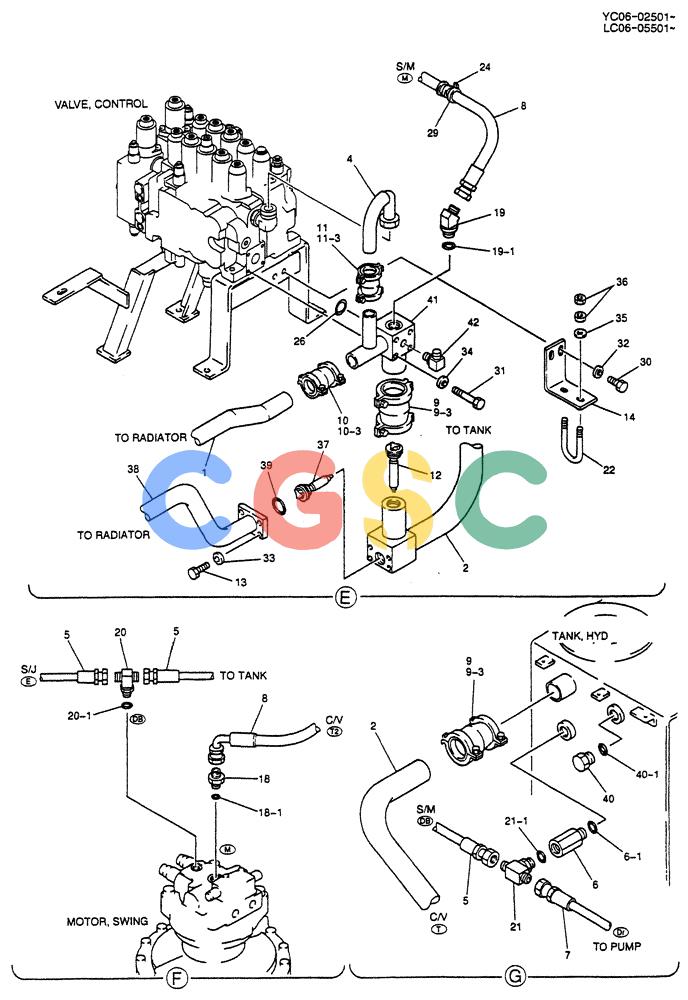

| . . | LC32H00010F3 | [1] | HYD LINES, RETURN (EXTRA) | |
| . . | LC32H00010F4 | [1] | HYD LINES, RETURN (EXTRA+NIBBLER & BREAKER | |
| 1. | LC32H01026P1 | [1] | TUBE | KOB |
| 2. | LC32H01032P1 | [1] | RIGID TUBE | KOB |
| 4. | LC32H01016P1 | [1] | RIGID TUBE | KOB |
| 5. | ZX21M12090 | [2] | FLEXIBLE HOSE | KOB900mm Long (35-7/16 in) |
| 6. | HH25R16016G2 | [1] | HYD CONNECTOR | KOB1" PF x 81mm Long (Incls. O-Ring ZD12P02900) |
| 6-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 7. | ZX41M12120 | [1] | FLEXIBLE HOSE | KOBHOSE |
| 8. | LC32H01013D1 | [1] | FLEXIBLE HOSE,4.76mm ID x 1300mm L | KOB1300mm Long (51-3/16 in) |
| 9. | ZG15F06400 | [2] | COUPLING | KOB |
| 9-3. | ZG15G06400 | [2] | GASKET | KOB Superseded by part number: R44P0089D15S3 |
| 10. | ZG15F05100 | [3] | COUPLING | KOB |
| 10-3. | ZG15G05100 | [2] | GASKET,50.85mm ID x 67.20mm OD | KOB Superseded by part number: R44P0089D4S3 |
| 11. | ZG15F03800 | [1] | COUPLING | KOB |
| 11-3. | ZG15G03800 | [2] | GASKET | KOBGASKET Superseded by part number: R44P0089D1S3 |
| 12. | LC21V00007F1 | [1] | VALVE | KOBCHECK |
| 13. | ZS18C12035 | [6] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 14. | LC32H01012P1 | [1] | SUPPORT | KOB |
| 15. | LC32H01019P1 | [1] | SUPPORT | KOBSUPPORT |
| 16. | LC32H01023P1 | [2] | SUPPORT | KOBSUPPORT |
| 17. | LC32H01027P1 | [1] | SUPPORT | KOBSUPPORT |
| 18. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 18-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 19. | HH45X16016G1 | [1] | ELBOW | KOB45° -- (Incls. O-Ring ZD12P02900) |
| 19-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 20. | 2444T3106 | [1] | TEE | KOB(Incls. O-Ring ZD12P01800) |
| 20-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 21. | 2444Z3973 | [1] | TEE | KOB |
| 21-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 22. | 2420T2948D6 | [1] | U-BOLT | KOBM08x1.25x ID 64 x 100mm Long |
| 23. | 2420T2948D4 | [5] | BOLT | KOBU-Bolt -- M08x1.25x ID 51 x 83.5mm Long |
| 24. | PY01P01043D6 | [1] | CABLE TIE,4.80mm W x 383mm L | KOBWire Ties -- 368mm Long |
| 25. | ZC46X31014 | [1] | CLIP | KOBClamp -- Ø31mm Single Cable |
| 26. | ZD11G04500 | [1] | O-RING,44.40mm ID x 50.60mm OD x 3.10mm | KOBID 44.40 ± 0.41 x OD 50mm |
| 27. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 28. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 29. | YX32H01011P1 | [1] | BUSHING,33mm ID x 49mm OD x 50mm L | KOBID 33 x OD 43 x 50mm Long |
| 30. | ZS18C12040 | [2] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| 31. | ZS18C10110 | [4] | SCREW,Hex, M10 x 110mm | KOBM10x1.50x110mm |
| 32. | 2418T10357 | [10] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 33. | ZW16H12000 | [5] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 34. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 35. | ZW16H08000 | [12] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 36. | ZN18C08007 | [24] | NUT | KOBM08x1.25mm |
| 37. | LC21V00006F1 | [1] | VALVE | KOBVALVE ASSY, CHECK |
| 38. | LC32H01035P1 | [1] | TUBE | KOB |
| 39. | 45Z91D84 | [1] | O-RING | KOBID 56.74 ± 0.25 OD 63.80mm |
| 40. | ZE72X16000 | [1] | PLUG | KOB(Incls. O-Ring ZD12P02900) (F3 Only) |
| 40-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 41. | LC32H01039P1 | [1] | TUBE | TUBE |
| 42. | ZH32X08000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/2" x PF 1/2", O-Ring | KOBElbow, 90° -- 1/2"PT (Incls. O-Ring ZD12P01800) |
