卡特零件查询（730） 485-1728: ENCLOSURE AR-HOOD
广数供应链运营团队, 15 02月, 2025，浏览：
457 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y | [1] | CONFIGURATION AR |
| | 504-3860Y | [1] | COVER GP-RADIATOR | |
| | 495-0156Y | [1] | FENDER & SUPPORT GP | |
| | 380-7598Y | [1] | GUARD GP-BOTTOM | |
| | 492-2285Y | [1] | GUARD GP-PLATFORM | |
| | 504-5592Y | [1] | HOOD GP-ENGINE | |
| | 416-2482Y | [1] | MOUNTING GP-DEF TANK | |
| | 500-1299Y | [1] | MOUNTING GP-ROPS | |
| | 493-2477Y | [1] | PANEL GP-FENDER(FRONT) | |
| | 392-7745Y | [1] | SHIELD GP-HEAT | |
| | 425-5754Y | [1] | STEP GP | |
| | 364-8698Y | [1] | TILT GP-HOOD | |
| | 364-8699Y | [1] | TILT GP-PLATFORM | |
| | 381-0071Y | [1] | WALKWAY GP(AUTOLUBE) | |

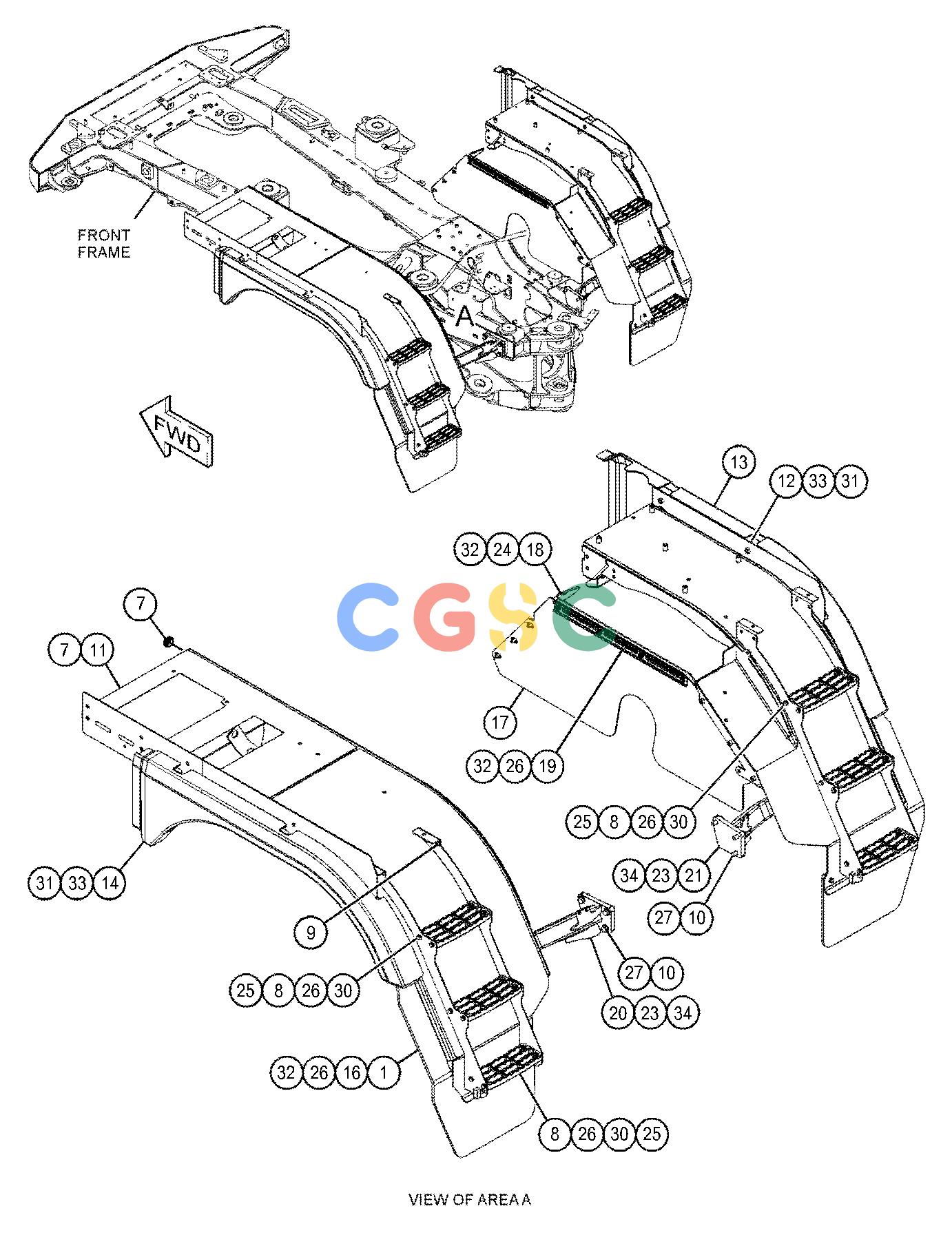

| | Y | | SEPARATE ILLUSTRATION |
