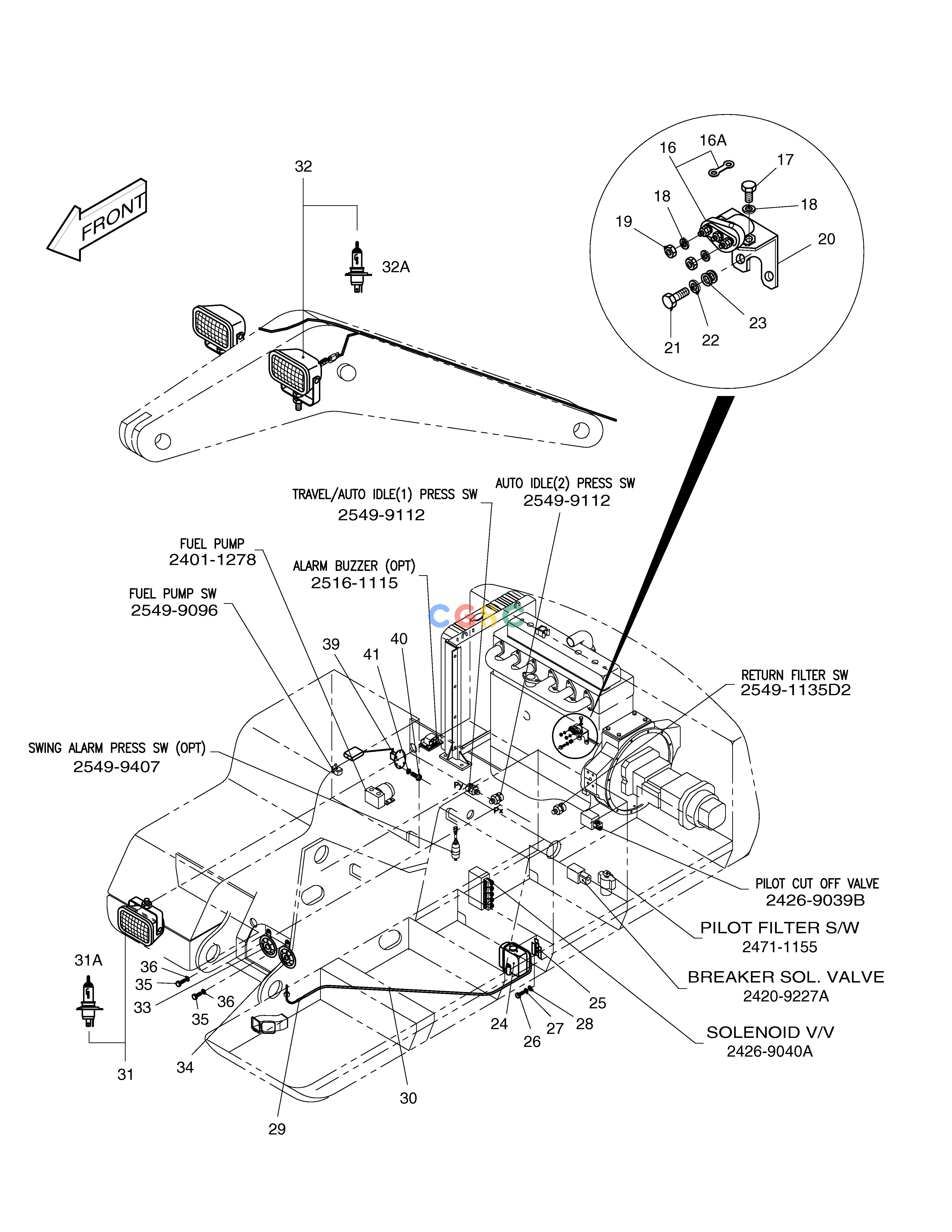

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1190
|
[-] |
ELECTRIC PARTS(2)
|
|
| 16. |
2544-9015
|
[1] |
RELAY;PREHEAT
|
2544-6020
|
| 16. |
2544-6020
|
[1] |
RELAY;PREHEAT
|
|
| 16A. |
2527-6001
|
[1] |
FUSE;LINK
|
|
| 17. |
S0504653
|
[2] |
. BOLT
|
|
| 18. |
S5102303
|
[4] |
. WASHER
|
|
| 19. |
S4012333
|
[2] |
NUT
|
|
| 20. |
4197-1954
|
[1] |
BRACKET;RELAY
|
|
| 21. |
S0686151
|
[2] |
BOLT M12X1.5X25
|
|
| 22. |
S5102703
|
[2] |
WASHER
|
|
| 23. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 24. |
2554-9005A
|
[1] |
WINDOW-WASHER
|
|
| 25. |
2195-1534
|
[1] |
BRACKET
|
|
| 26. |
S0504453
|
[2] |
BOLT
|
|
| 27. |
S5102303
|
[2] |
. WASHER
|
|
| 28. |
S5010313
|
[2] |
WASHER
|
|
| 29. |
2415-1018
|
[1] |
ADAPTER
|
|
| 30. |
2185-1681D1
|
[1] |
TUBE;CORRUGATE
|
|
| 31. |
2534-1160
|
[1] |
LAMP;WORKING
|
|
| 31A. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 32. |
2534-1160
|
[2] |
LAMP;WORKING
|
|
| 32A. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 33. |
2516-9015
|
[1] |
HORN(H.F)
|
|
| 33. |
2516-9018
|
[1] |
HORN(H.F)
|
|
| 34. |
2516-9016
|
[1] |
HORN(L.F)
|
|
| 34. |
2516-9019
|
[1] |
HORN(L.F)
|
|
| 35. |
S0511653
|
[2] |
BOLT
|
|
| 35. |
S0508653
|
[2] |
BOLT
|
|
| 36. |
S5102603
|
[2] |
. WASHER
|
|
| 36. |
S5102503
|
[2] |
. WASHER
|
|
| 39. |
2547-9035A
|
[1] |
SENSOR;FUEL
|
|
| 39. |
2547-9035
|
[1] |
SENSOR;FUEL
|
2547-9035A
|
| 40. |
S3450833
|
[6] |
BOLT
|
|
| 41. |
S5100203
|
[6] |
WASHER
|
|
