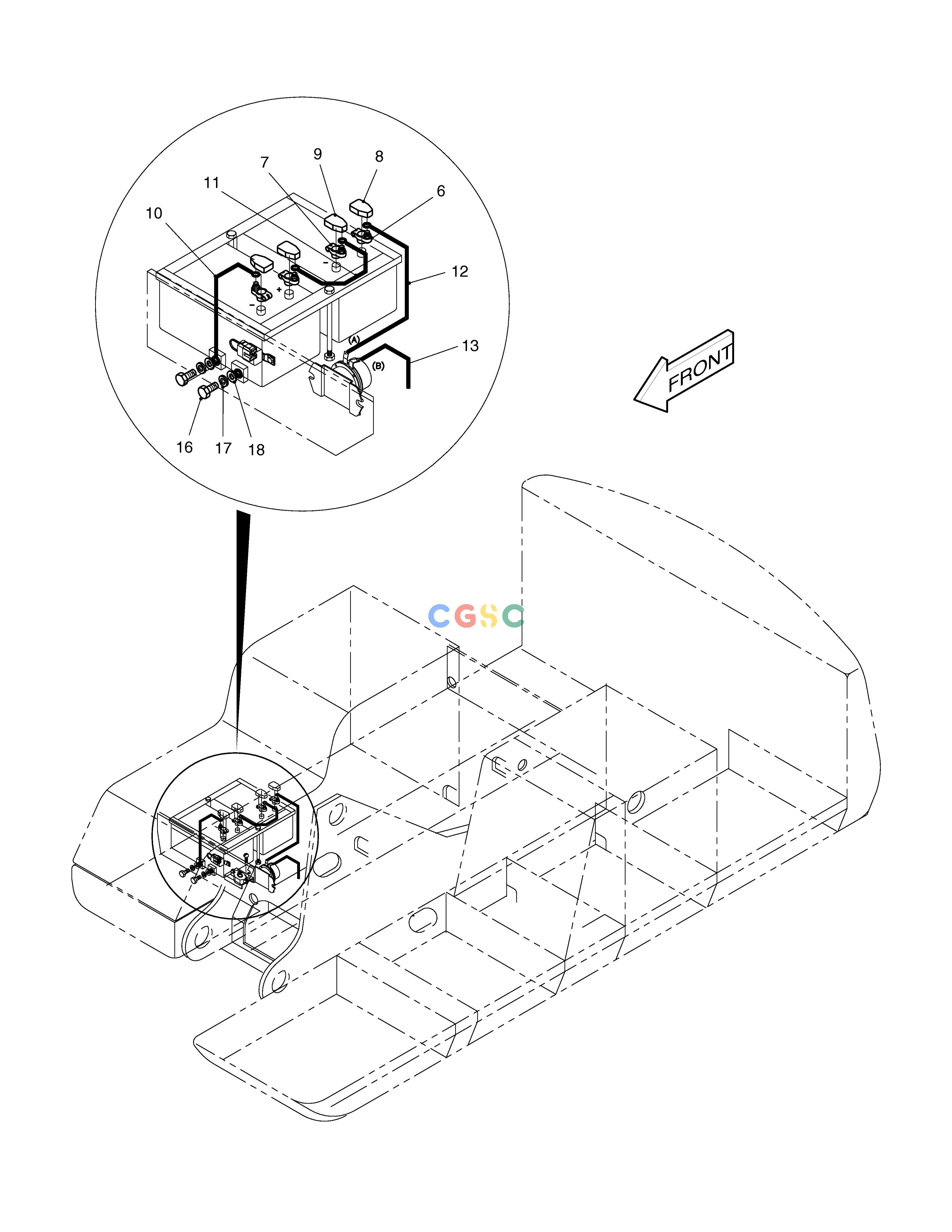

斗山零件查询ELECTRIC WIRING(2)-BATTERY PARTS SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1191
|
[-] |
ELECTRIC PARTS(3)
|
|
| 10. |
2553-1275D1
|
[1] |
CABLE;BATT-EARTH
|
|
| 11. |
2553-1275D2
|
[1] |
CABLE;BATT-BATT
|
|
| 12. |
2553-1275D18
|
[1] |
CABLE;BATT.-BATT. RELAY 85R-L600
|
2553-1275D48
|
| 12. |
2553-1275D48
|
[1] |
CABLE;BATT-BATT RELAY
|
|
| 13. |
2553-1275D11
|
[1] |
CABLE;BATT RY-STARTER
|
|
| 16. |
S0511653
|
[2] |
BOLT
|
|
| 17. |
S5102603
|
[2] |
. WASHER
|
|
| 18. |
S5010613
|
[2] |
WASHER
|
|
| 6. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 6. |
1550-1004
|
[2] |
TERMINAL;BATTERY(+)
|
2550-1014D1
|
| 7. |
1550-1003
|
[2] |
TERMINAL;BATTERY(-)
|
2550-1014D2
|
| 7. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 8. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 9. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
