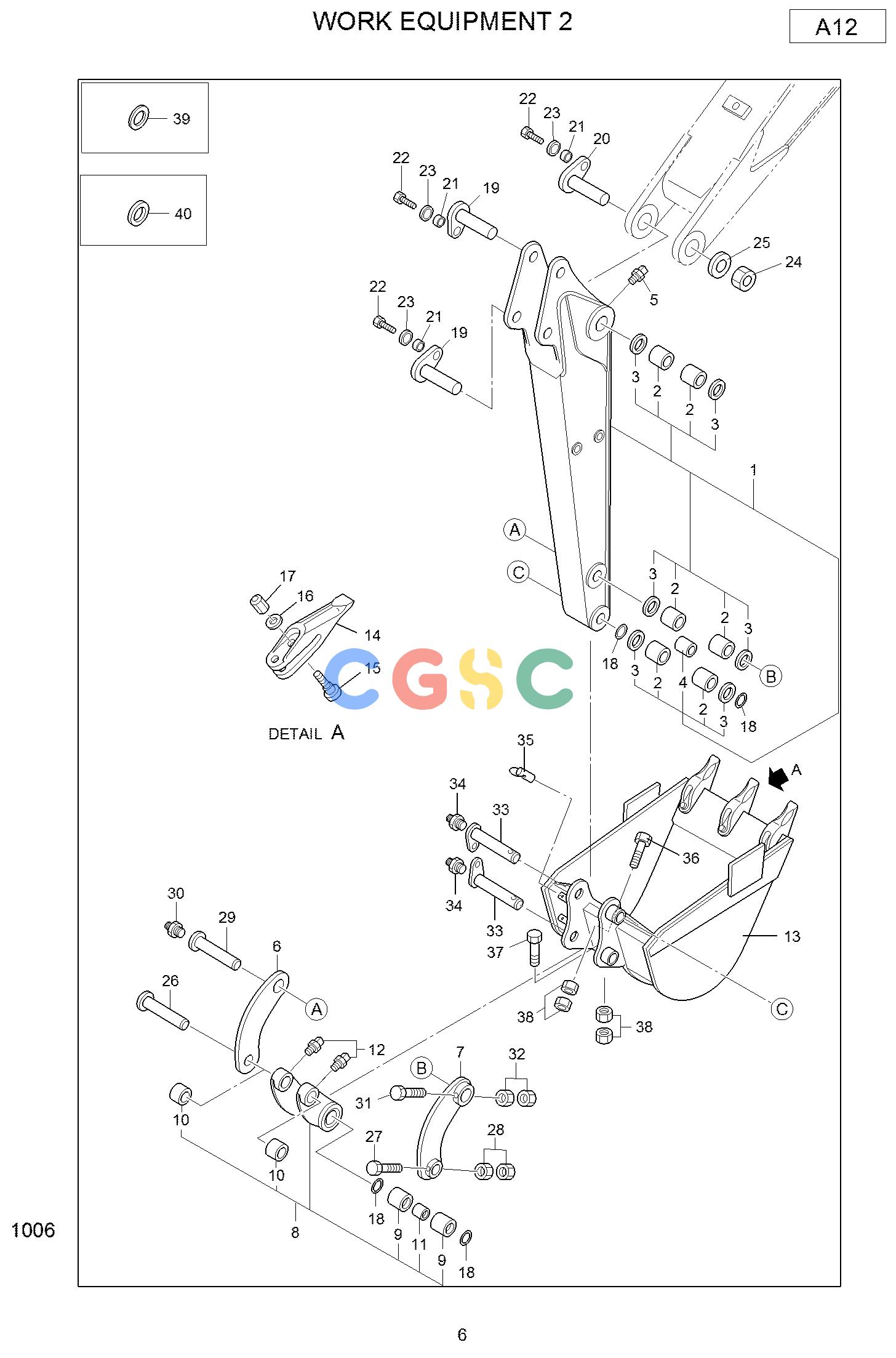

现代零件查询R22-7 WORK EQUIPMENT 2EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03988
|
[1] |
ARM ASSY
|
|
| 2. |
XJDH-01041
|
[6] |
BUSHING
|
|
| 3. |
XJDH-00362
|
[6] |
SEAL-DUST
|
|
| 4. |
XJDH-03989
|
[1] |
COLLAR
|
|
| 5. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 6. |
XJDH-03990
|
[1] |
LINK-BUCKET(R)
|
|
| 7. |
XJDH-03991
|
[1] |
LINK-BUCKET(L)
|
|
| 8. |
XJDH-03992
|
[1] |
DUMP LINK ASSY
|
|
| 9. |
XJDH-01041
|
[2] |
BUSHING
|
|
| 10. |
XJDH-01059
|
[2] |
BUSHING
|
|
| 11. |
XJDH-03993
|
[1] |
COLLAR
|
|
| 12. |
XJDH-00377
|
[2] |
NIPPLE-GREASE 90
|
|
| 13. |
XJDH-03994
|
[1] |
BUCKET ASSY
|
|
| 14. |
XJDH-03995
|
[3] |
TOOTH
|
|
| 15. |
XJDH-03996
|
[6] |
BOLT
|
|
| 16. |
XJDH-03997
|
[6] |
WASHER-SPRING
|
|
| 17. |
XJDH-03998
|
[6] |
NUT
|
|
| 18. |
XJDH-03999
|
[4] |
O-RING
|
|
| 19. |
XJDH-04000
|
[2] |
PIN
|
|
| 20. |
XJDH-04001
|
[1] |
PIN
|
|
| 21. |
XJDH-01181
|
[3] |
COLLAR
|
|
| 22. |
XJDH-00070
|
[3] |
BOLT
|
|
| 23. |
XJDH-00280
|
[3] |
WASHER
|
|
| 24. |
XJDH-00199
|
[1] |
NUT-U
|
|
| 25. |
XJDH-00260
|
[1] |
WASHER
|
|
| 26. |
XJDH-04002
|
[1] |
PIN
|
|
| 27. |
XJDH-04003
|
[1] |
BOLT
|
|
| 28. |
XJDH-00167
|
[2] |
NUT
|
|
| 29. |
XJDH-04004
|
[1] |
PIN
|
|
| 30. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 31. |
XJDH-04003
|
[1] |
BOLT
|
|
| 32. |
XJDH-00167
|
[2] |
NUT
|
|
| 33. |
XJDH-01060
|
[2] |
PIN-BUCKET
|
|
| 34. |
XJDH-00373
|
[2] |
NIPPLE-GREASE
|
|
| 35. |
XJDH-04005
|
[2] |
SPRING CLIP
|
|
| 36. |
XJDH-00067
|
[1] |
BOLT
|
|
| 37. |
XJDH-00064
|
[1] |
BOLT
|
|
| 38. |
XJDH-00167
|
[4] |
NUT
|
|
| 39. |
XJDH-01192
|
[AR] |
SHIM(A, 0.5T)
|
|
| 40. |
XJDH-01193
|
[AR] |
SHIM(B, 1.0T)
|
|
