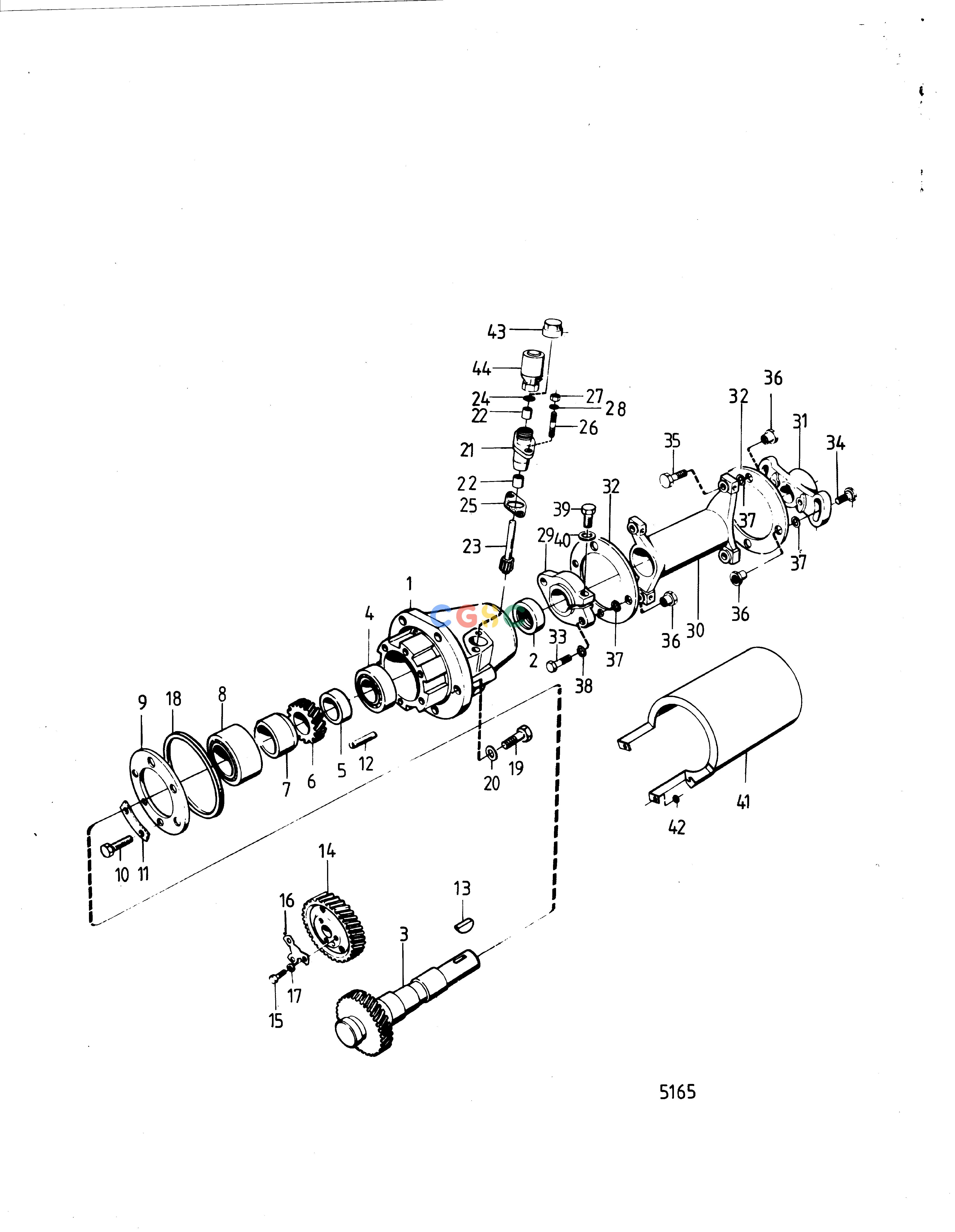

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BFuel SystemDrive Device, Fuel Injection Pump: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
344 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
421074
|
[1] |
Bearing housing
|
|
| 2. |
424580
|
[1] |
Sealing ring
|
|
| 3. |
422073
|
[1] |
Shaft
|
|
| 4. |
11013
|
[1] |
Ball bearing
|
|
| 5. |
469363
|
[1] |
Stop ring
|
|
| 6. |
469364
|
[1] |
Gear
|
|
| 7. |
421083
|
[1] |
Stop ring
|
Replaced by 1pc 469363, 1pc 469364.
|
| 8. |
181577
|
[1] |
Ball bearing
|
|
| 9. |
423074
|
[1] |
Washer
|
|
| 10. |
940100
|
[6] |
Hexagon screw
|
|
| 11. |
421415
|
[3] |
Lock washer
|
|
| 12. |
950586
|
[1] |
Pin
|
|
| 13. |
422329
|
[1] |
Woodruff key
|
|
| 14. |
421079
|
[1] |
Gear
|
See group 2A
|
| 15. |
102056
|
[3] |
Hexagon screw
|
|
| 16. |
467052
|
[1] |
Lock washer
|
|
| 17. |
467055
|
[3] |
Washer
|
|
| 18. |
423123
|
[1] |
Sealing ring
|
|
| 19. |
955525
|
[4] |
Hexagon screw
|
L=25mm
|
| 19. |
955527
|
[1] |
Hexagon screw
|
L=57mm
|
| 20. |
941907
|
[5] |
Spring washer
|
|
| 21. |
823474
|
[1] |
Bearing housing
|
|
| 22. |
191776
|
[2] |
Bearing bushing
|
|
| 23. |
422125
|
[1] |
Axle shaft
|
|
| 24. |
943821
|
[1] |
Sealing ring
|
|
| 25. |
422130
|
[1] |
Gasket
|
|
| 26. |
953224
|
[2] |
Stud
|
|
| 27. |
|
|
|
|
| 27. |
955825
|
[2] |
Hexagon nut
|
|
| 28. |
941906
|
[2] |
Spring washer
|
|
| 29. |
422184
|
[1] |
Companion flange
|
|
| 30. |
421188
|
[1] |
Intermediate section
|
|
| 31. |
422461
|
[1] |
Companion flange
|
|
| 31. |
421392
|
[1] |
Companion flange
|
Engine with cav fuel injection pump.
|
| 32. |
417512
|
[6] |
Dog clutch disc
|
|
| 33. |
955675
|
[2] |
Hexagon screw
|
|
| 34. |
422469
|
[2] |
Hexagon screw
|
|
| 35. |
955676
|
[4] |
Hexagon screw
|
|
| 36. |
422187
|
[8] |
Nut
|
|
| 37. |
417514
|
[8] |
Washer
|
|
| 38. |
940097
|
[2] |
Washer
|
|
| 39. |
940160
|
[1] |
Hexagon screw
|
|
| 40. |
955896
|
[1] |
Washer
|
|
| 41. |
822876
|
[1] |
Pump companion guard
|
|
| 42. |
955894
|
[1] |
Washer
|
|
| 43. |
822723
|
[1] |
Protecting cover
|
Alt
|
| 44. |
|
|
|
See group 3
|
