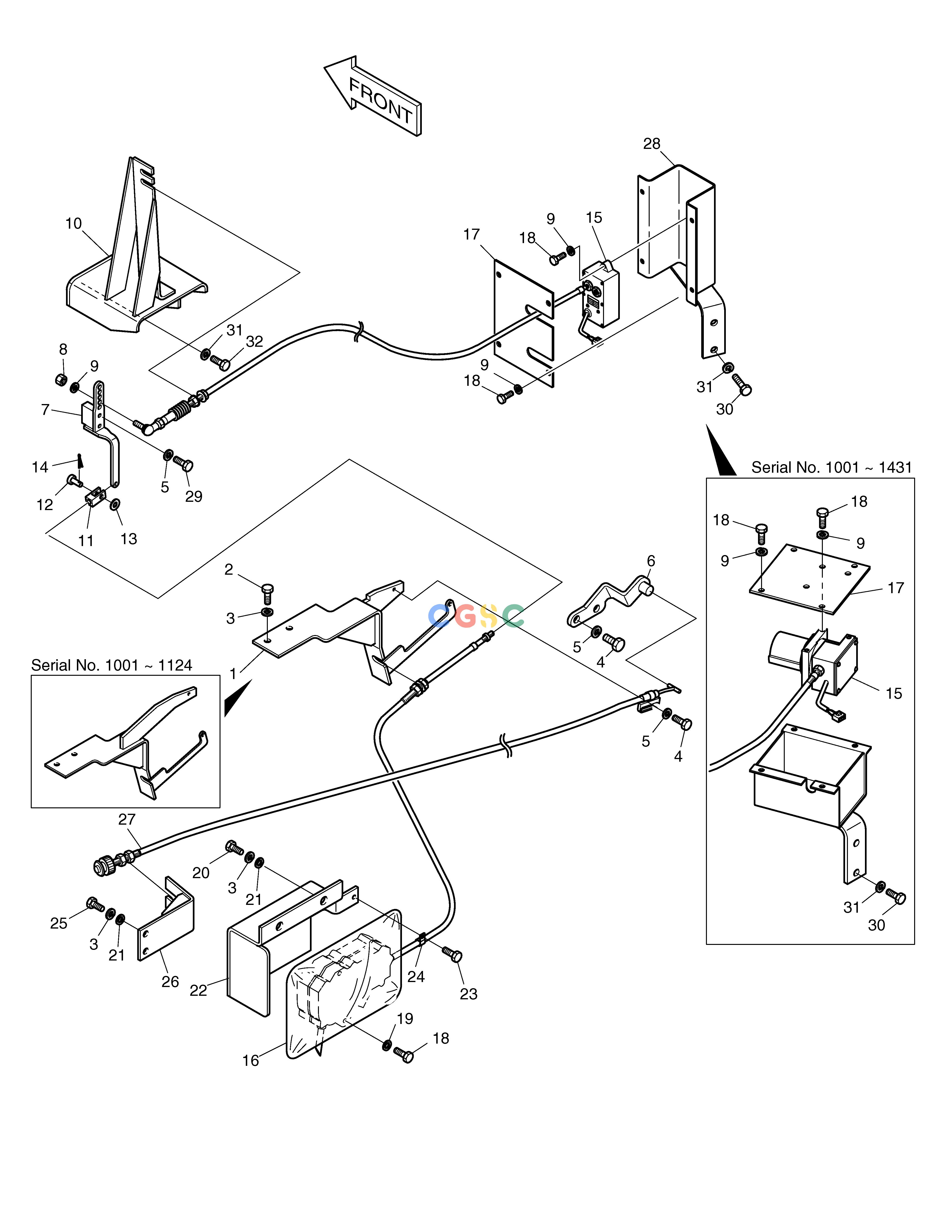

斗山零件查询ENGINE CONTROL SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
963 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2133-2067
|
[-] |
ENGINE CONTROL
|
|
| 1. |
2197-2238
|
[1] |
BRACKET
|
2197-2238A
|
| 1. |
2197-2238A
|
[1] |
BRACKET
|
2197-2238B
|
| 1. |
2197-2238B
|
[1] |
BRACKET
|
|
| 10. |
2197-2268
|
[1] |
BRACKET
|
2197-2327A
|
| 10. |
2197-2327A
|
[1] |
BRACKET
|
195-00331
|
| 10. |
195-00331
|
[1] |
BRACKET
|
195-00331A
|
| 10. |
195-00331A
|
[1] |
BRACKET
|
195-02390
|
| 10. |
195-02390
|
[1] |
BRACKET
|
195-02390A
|
| 10. |
195-02390A
|
[1] |
BRACKET
|
|
| 11. |
2135-1008D25
|
[1] |
END;FORK
|
|
| 12. |
2123-1888
|
[1] |
PIN
|
|
| 13. |
S5010313
|
[1] |
WASHER
|
|
| 14. |
S5735121
|
[1] |
PIN;SPLIT
|
|
| 15. |
2523-9014
|
[1] |
MOTOR;ENGINE CONTROL
|
|
| 15. |
523-00006
|
[1] |
MOTOR;E/G CONTROL
|
|
| 16. |
2523-9016
|
[1] |
MOTOR,E/G STOP
|
|
| 17. |
2197-2030
|
[1] |
PLATE
|
|
| 17. |
159-00124
|
[1] |
PLATE
|
|
| 18. |
S0508853
|
[9] |
. BOLT
|
|
| 18. |
S0508853
|
[6] |
. BOLT
|
|
| 19. |
S5010513
|
[2] |
WASHER
|
|
| 2. |
S0512053
|
[2] |
BOLT
|
|
| 20. |
S0511853
|
[2] |
BOLT
|
|
| 21. |
S5010613
|
[4] |
WASHER
|
|
| 22. |
2197-1802
|
[1] |
BRACKET
|
2197-1802A
|
| 22. |
2197-1802A
|
[1] |
BRACKET
|
|
| 23. |
S0508453
|
[1] |
BOLT
|
|
| 24. |
2124-1509D10
|
[1] |
CLIP
|
|
| 25. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 26. |
2197-1791A
|
[1] |
BRACKET
|
2197-1791B
|
| 26. |
2197-1791B
|
[1] |
BRACKET
|
|
| 27. |
2139-6055D11
|
[1] |
CABLE;CONTROL
|
|
| 28. |
2197-2246
|
[1] |
BRACKET
|
|
| 28. |
195-01558
|
[1] |
BRACKET
|
|
| 29. |
S0553853
|
[2] |
BOLT M6X1.0X60
|
|
| 3. |
S5102603
|
[6] |
. WASHER
|
|
| 30. |
S0515253
|
[2] |
. BOLT
|
|
| 31. |
S5102703
|
[2] |
WASHER
|
|
| 31. |
S5102703
|
[4] |
WASHER
|
|
| 32. |
2120-2231
|
[2] |
BOLT M12X1.5X75
|
|
| 4. |
S0504553
|
[3] |
BOLT
|
|
| 5. |
S5102303
|
[5] |
. WASHER
|
|
| 6. |
2150-1142A
|
[1] |
HOOK;CABLE
|
2150-1142B
|
| 6. |
2150-1142B
|
[1] |
HOOK;CABLE
|
|
| 7. |
2133-2086A
|
[1] |
LEVER
|
2133-2086B
|
| 7. |
2133-2086B
|
[1] |
LEVER
|
|
| 8. |
S4012533
|
[1] |
NUT
|
|
| 9. |
S5102503
|
[8] |
. WASHER
|
|
| 9. |
S5102503
|
[7] |
. WASHER
|
|
