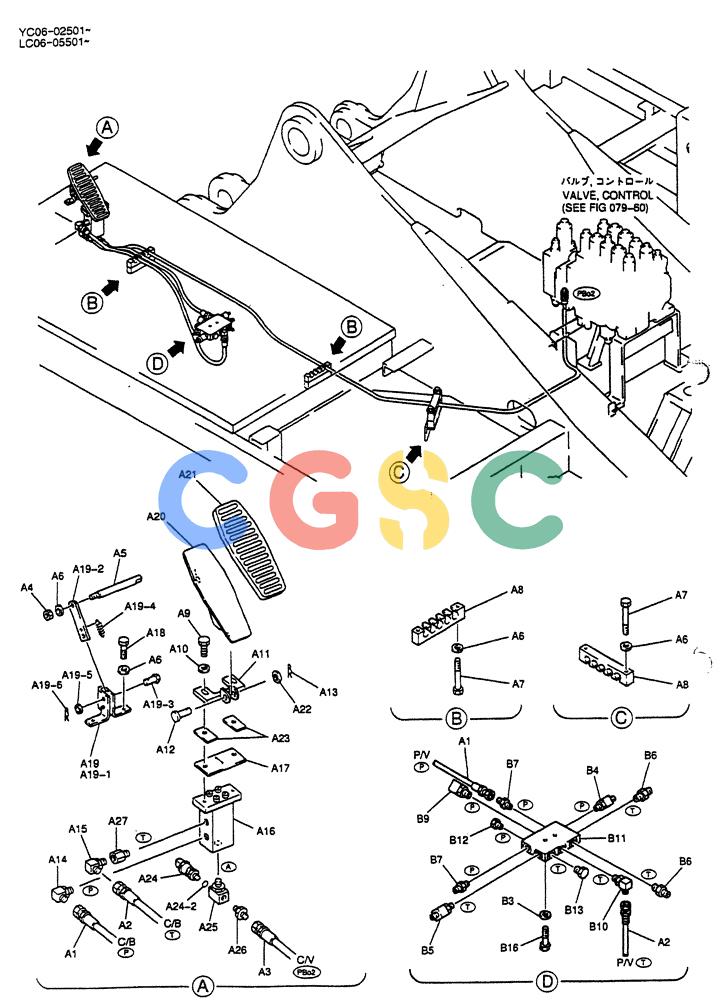

| . . | LC68H00009F1 | [1] | CONTROL LINES, REMOTE | |
| A1. | 2420R349D090 | [1] | HOSE,6.35mm ID x 900mm L | KOB900mm Long (35-7/16 in) |
| A2. | 2444R1120D110 | [1] | HOSE | KOB(1/4" PF) 1100mm Long (43-19/64 in) |
| A3. | 2420R349D320 | [1] | HOSE ASSY. | KOB3200mm Long (126 in) |
| A4. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| A5. | PY03M01026P1 | [1] | PIN | KOBM08x1.25x115mm Long |
| A6. | ZW16X08000 | [9] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A7. | ZS18C08065 | [6] | SCREW,Hex, M8 x 65mm | KOBM08x1.25x65mm |
| A8. | YN68H01035P1 | [3] | CLAMP | KOB |
| A9. | ZS18C08045 | [2] | SCREW,Hex, M8 x 45mm | KOBM08x1.25x45mm |
| A10. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| A11. | YN68H01038P1 | [1] | BRACKET | KOB |
| A12. | 2419T3757D6 | [1] | PIN | KOB |
| A13. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| AH. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| A15. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| A16. | YT30V00004F1 | [1] | PILOT VALVE | KOBAssembly |
| A17. | 2416Z566 | [1] | RUBBER BAND | KOB |
| A18. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| A19. | YT30M01002F1 | [1] | LOCK | KOBASSY |
| A19-1. | PY30M01004P1 | [1] | SUPPORT | KOB |
| A19-2. | YT30M01004P1 | [1] | LOCK | KOB |
| A19-3. | HP45X10022G1 | [1] | PIN | KOB Superseded by part number: PM55M01012P1 |
| A19-4. | HP26T09002G1 | [1] | SPRING | KOB |
| A19-5. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A19-6. | 2419R9D3 | [1] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| A20. | YN68H01039P2 | [1] | PEDAL | KOB |
| A21. | YR03M01134P1 | [1] | COVER | KOB |
| A22. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| A23. | 2418T18004 | [2] | PLATE | KOB |
| A24. | LC52S00001P2 | [1] | PRESSURE SWITCH | KOB(L.P.) Superseded by part number: LC52S00001P3 |
| A24-2. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| A25. | 2444Z4239 | [1] | TEE | KOB1/4" PT (Incls. O-Ring ZD12P01100) |
| A26. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A27. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| . . | YN64H00065F2 | [1] | REMOTE CONTROL VALVE | KOBCONTOROL LINES, BLOCK |
| B3. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B4. | 2444Z2336 | [1] | TEE | KOBTee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100) |
| B5. | 2444Z2359 | [1] | TEE | KOB3/8" PT (Incls. O-Ring ZD12P01400) |
| B6. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) (PF3/8) |
| B7. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| B9. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| B10. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 Alternate ZD12P01400) |
| B11. | 2416N6141 | [1] | BLOCK | KOB |
| B12. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| B13. | ZE72X06000 | [1] | PLUG | KOB3/8" PF, (Incls. O-Ring ZD12P01400) |
| B16. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
