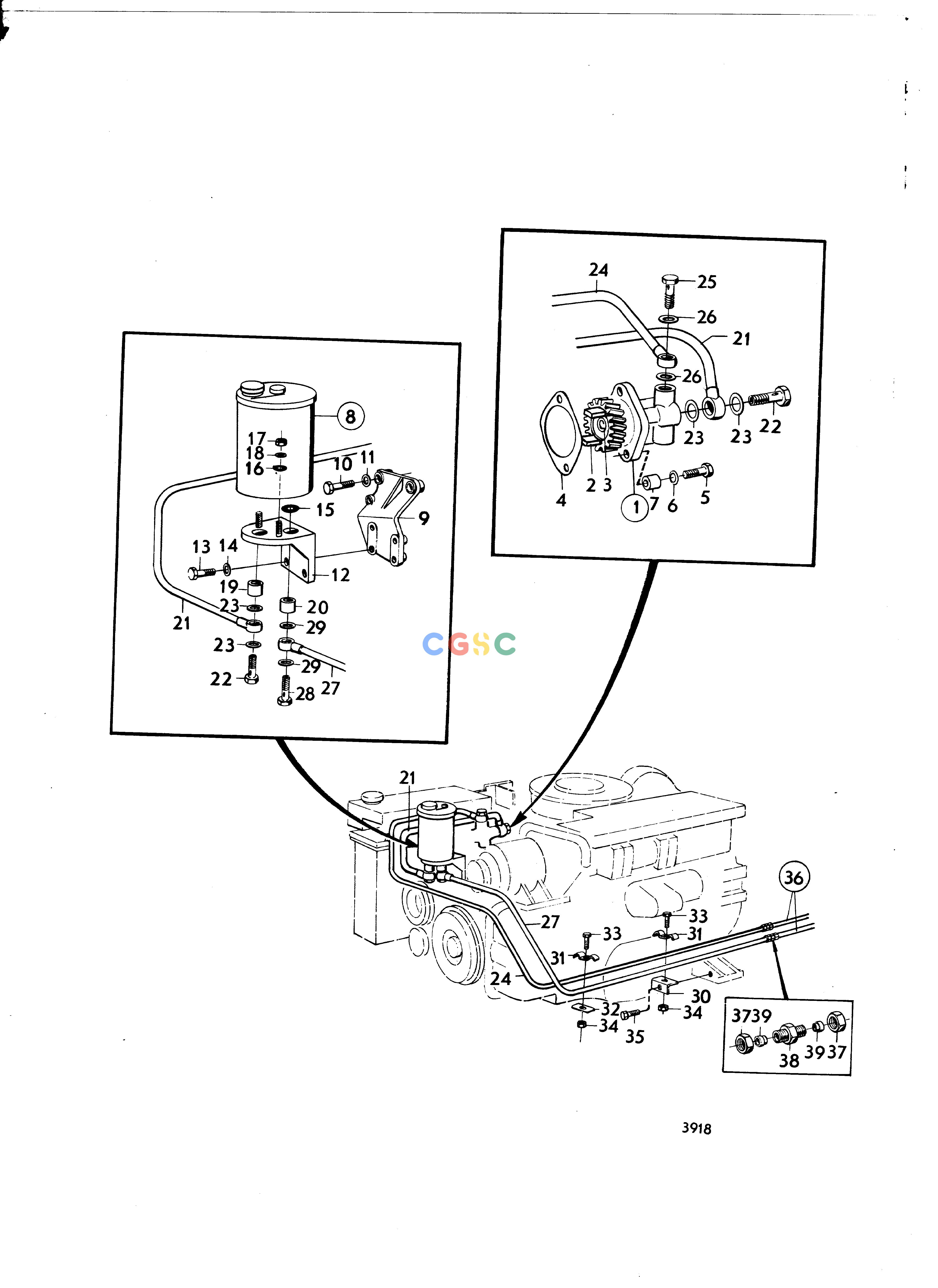

沃尔沃零件查询MD70B; MD70BK; TMD70B; THAMD70B; TAMD70B; AQD70BL; AQD70BSteering SystemHydraulic Pump and Oil Reservoir ProductionEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
356506
|
[1] |
Hydraulic pump
|
|
| 2. |
|
|
|
|
| 3. |
346918
|
[1] |
Castle nut
|
|
| 4. |
421187
|
[1] |
Gasket
|
|
| 5. |
940156
|
[1] |
Hexagon screw
|
L=89mm
|
| 5. |
955535
|
[1] |
Hexagon screw
|
L=32mm
|
| 6. |
942336
|
[2] |
Spring washer
|
|
| 7. |
822791
|
[1] |
Spacer sleeve
|
|
| 8. |
323138
|
[1] |
Oil cooler
|
Repl by 327194
|
| 8. |
327194
|
[1] |
Reservoir
|
|
| 9. |
836828
|
[1] |
Bracket
|
|
| 10. |
955525
|
[1] |
Hexagon screw
|
L=25mm
|
| 10. |
940136
|
[2] |
Hexagon screw
|
L=64mm
|
| 11. |
941907
|
[3] |
Spring washer
|
|
| 12. |
328378
|
[1] |
Bracket
|
|
| 13. |
940115
|
[4] |
Hexagon screw
|
|
| 14. |
942336
|
[4] |
Spring washer
|
|
| 15. |
328382
|
[2] |
O-ring
|
|
| 16. |
328381
|
[2] |
O-ring
|
|
| 17. |
955782
|
[2] |
Hexagon nut
|
|
| 18. |
941907
|
[2] |
Spring washer
|
|
| 19. |
328379
|
[1] |
Connecting sleeve
|
|
| 20. |
328380
|
[1] |
Connecting sleeve
|
|
| 21. |
836865
|
[1] |
Tube
|
|
| 22. |
191620
|
[2] |
Hollow screw
|
|
| 23. |
907137
|
[4] |
Gasket
|
|
| 24. |
836866
|
[1] |
Tube
|
|
| 25. |
190713
|
[1] |
Hollow screw
|
|
| 26. |
11996
|
[2] |
Gasket
|
|
| 27. |
836867
|
[1] |
Tube
|
|
| 28. |
26013
|
[1] |
Hollow screw
|
|
| 29. |
957181
|
[2] |
Gasket
|
|
| 30. |
|
|
|
|
| 31. |
836671
|
[4] |
Clamp
|
|
| 32. |
821076
|
[2] |
Anchorage
|
|
| 33. |
950060
|
[2] |
Cross recessed screw
|
MOXXXX/23140-
|
| 33. |
950047
|
[2] |
Cross recessed screw
|
MOXXXX/23140-
|
| 34. |
955826
|
[2] |
Hexagon nut
|
MOXXXX/23140-
|
| 34. |
955825
|
[2] |
Hexagon nut
|
MOXXXX/23140-
|
| 35. |
940113
|
[2] |
Hexagon screw
|
|
| 36. |
832394
|
[2] |
Hose
|
See group 4A
|
| 37. |
956985
|
[2] |
Fitting nut
|
|
| 38. |
957057
|
[2] |
Nipple
|
For early production of 832394
|
| 39. |
956971
|
[2] |
Ferrule
|
|
