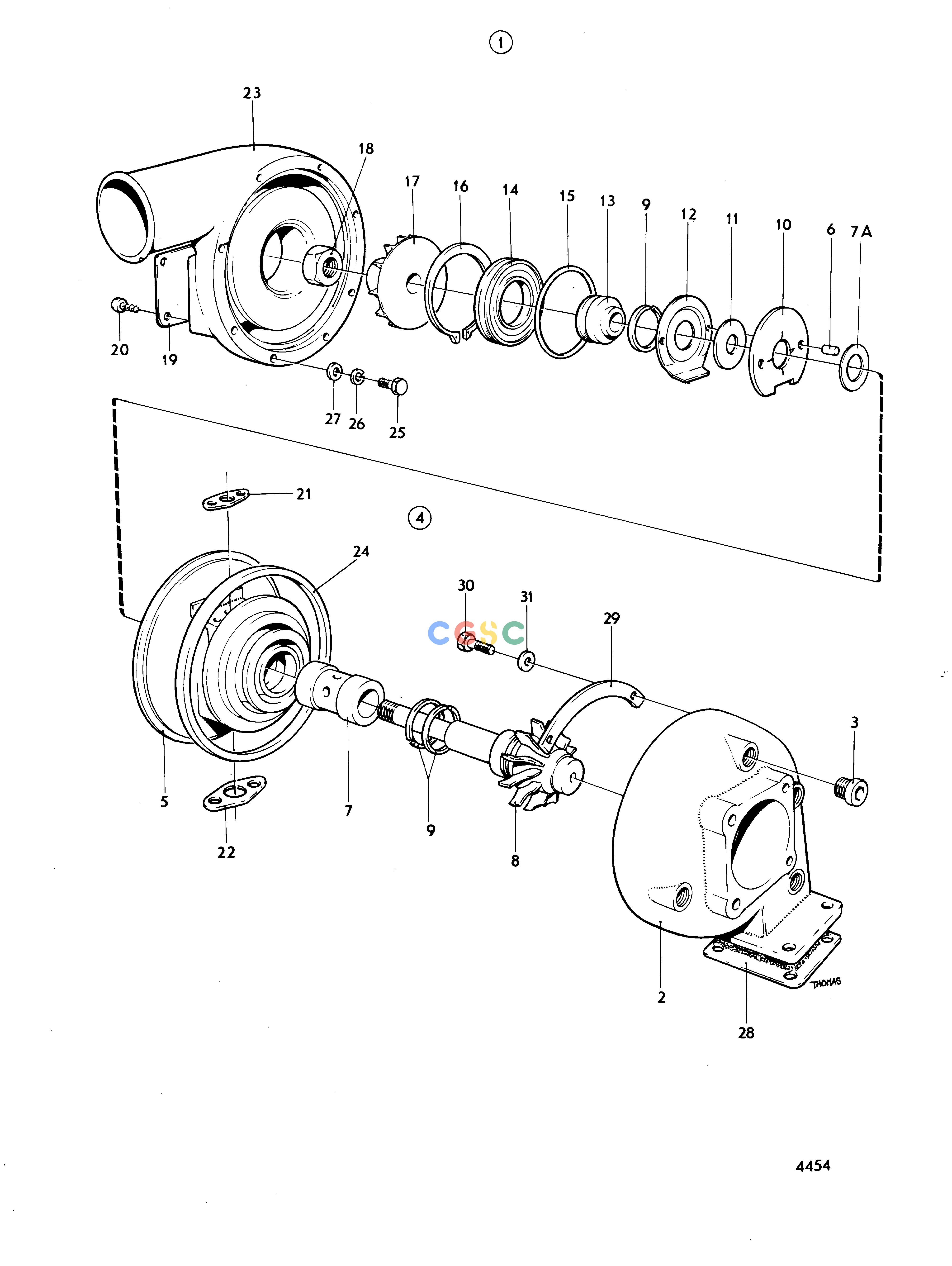

沃尔沃零件查询MD70C; TMD70C; TAMD70C; THAMD70C; AQD70BL; AQD70CLCooling SystemTurbo: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
837513
|
[1] |
Turbocharger
|
|
| 2. |
|
|
|
|
| 3. |
842064
|
[6] |
Plug
|
|
| 4. |
842832
|
[1] |
Rotor
|
|
| 5. |
|
|
|
|
| 6. |
842065
|
[2] |
Locating pin
|
|
| 7. |
|
|
|
|
| 7A. |
|
|
|
|
| 8. |
420461
|
[1] |
Shaft
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
420465
|
[1] |
Oil deflector
|
|
| 13. |
420462
|
[1] |
Ring retainer
|
|
| 14. |
420466
|
[1] |
Cover
|
|
| 15. |
465027
|
[1] |
O-ring
|
|
| 16. |
420467
|
[1] |
Lock ring
|
|
| 17. |
842061
|
[1] |
Compressor wheel
|
|
| 18. |
420464
|
[1] |
Nut
|
|
| 19. |
|
|
|
|
| 20. |
420309
|
[3] |
Screw
|
|
| 21. |
420641
|
[1] |
Gasket
|
|
| 22. |
420423
|
[1] |
Gasket
|
|
| 23. |
|
|
|
|
| 24. |
842056
|
[1] |
Clamp
|
|
| 25. |
842057
|
[8] |
Screw
|
|
| 26. |
411809
|
[8] |
Spring washer
|
|
| 27. |
420469
|
[8] |
Washer
|
|
| 28. |
421324
|
[1] |
Gasket
|
|
| 29. |
842059
|
[3] |
Clamp
|
|
| 30. |
842054
|
[6] |
Screw
|
|
| 31. |
842060
|
[6] |
Washer
|
|
| 31. |
842836
|
[1] |
Repair kit
|
|
