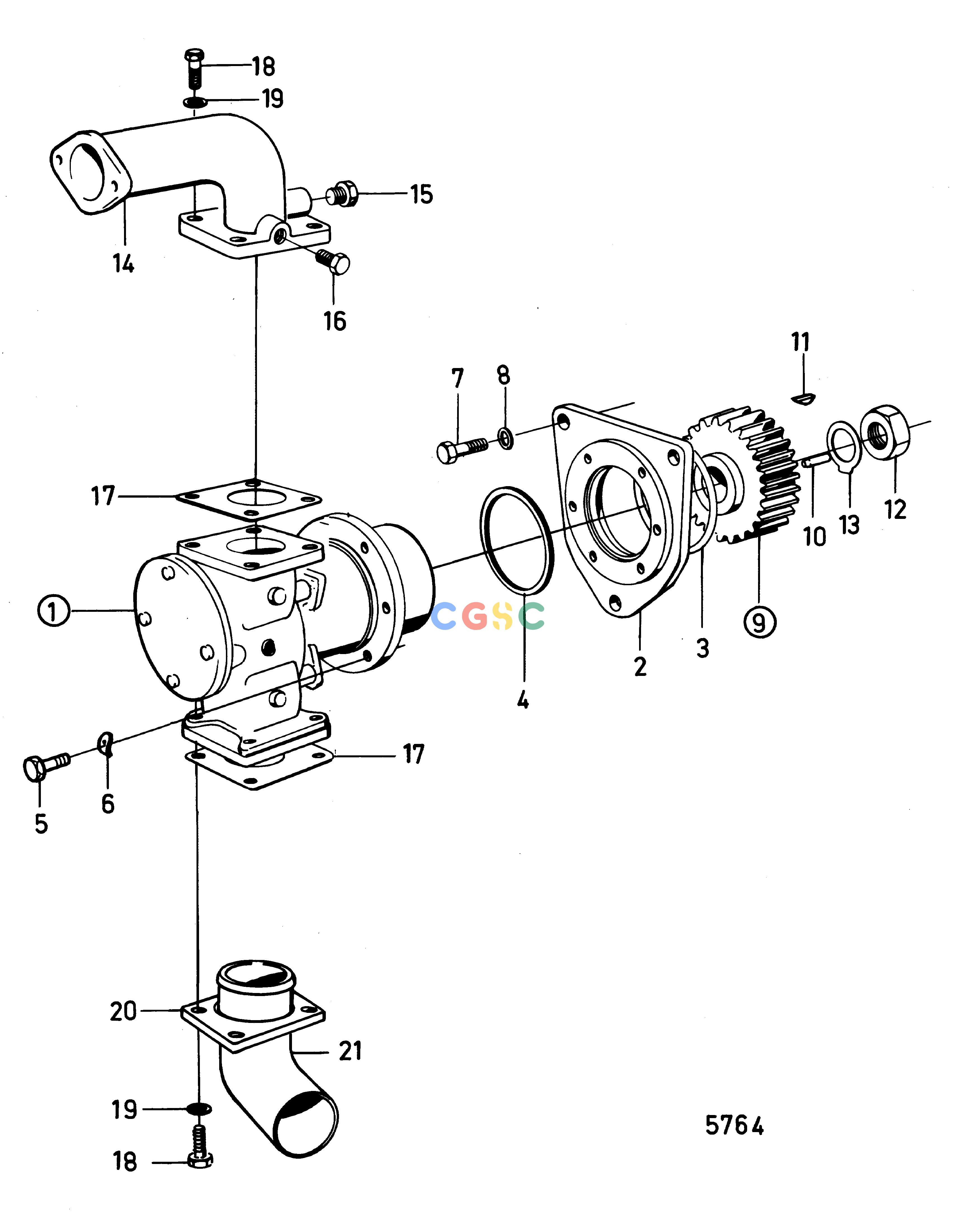

沃尔沃零件查询TAMD103ACooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
117 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3829313
|
[1] |
Sea water pump
|
|
| 1. |
|
|
|
|
| 2. |
820695
|
[1] |
Spacer
|
|
| 3. |
967344
|
[1] |
O-ring
|
|
| 4. |
975610
|
[1] |
O-ring
|
|
| 5. |
940114
|
[3] |
Hexagon screw
|
|
| 6. |
942336
|
[3] |
Spring washer
|
|
| 7. |
955576
|
[3] |
Hexagon screw
|
|
| 8. |
941911
|
[3] |
Spring washer
|
|
| 9. |
3825716
|
[1] |
Gear
|
|
| 10. |
950564
|
[1] |
Pin
|
|
| 11. |
942406
|
[1] |
Woodruff key
|
|
| 12. |
955860
|
[1] |
Hexagon nut
|
|
| 13. |
942735
|
[1] |
Tab washer
|
|
| 14. |
842866
|
[1] |
Pipe elbow
|
|
| 15. |
981749
|
[1] |
Plug
|
|
| 16. |
861551
|
[1] |
Plug
|
|
| 17. |
862583
|
[2] |
Gasket
|
|
| 18. |
940114
|
[8] |
Hexagon screw
|
|
| 19. |
942336
|
[8] |
Spring washer
|
|
| 20. |
842867
|
[1] |
Flange
|
|
| 21. |
842868
|
[1] |
Hose attachment
|
I.D=63mm, H.E
|
| 21. |
863294
|
[1] |
Pipe elbow
|
I.D=57mm, K.C
|
