神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (02-005) - HYD LINES, BOOM 6.5M (21FT 4IN ) (EXTRA + NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
759 次

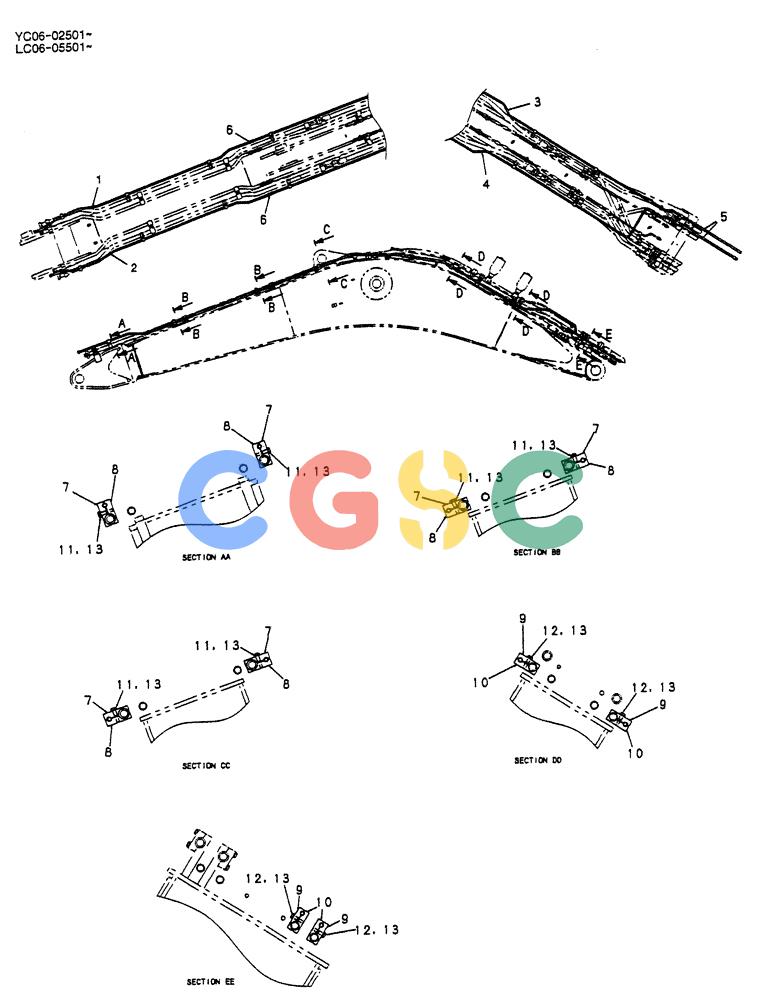

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC42H00041F1 | [1] | HYD LINES, BOOM 6.5M | |
| 1. | LC42H01160P1 | [1] | TUBE | |
| 2. | LC42H01161P1 | [1] | HYD TUBE | KOB |
| 3. | LC42H01162P1 | [1] | HYD TUBE | KOB |
| 4. | LC42H01163P1 | [1] | HYD TUBE | KOB |
| 5. | 2444R950D30 | [2] | HOSE | |
| 6. | ZA23B18000 | [2] | HYD CONNECTOR | KOB |
| 7. | LC42H01164P1 | [8] | CLIP | KOB |
| 8. | LC42H01165P1 | [8] | CLIP | KOB |
| g. | LQ42H01092P1 | [6] | CLAMP | KOB |
| 10. | LQ42H01093P1 | [6] | CLAMP | KOB |
| 11. | ZS18C12055 | [8] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| 12. | ZS18C12050 | [6] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 13. | ZW16H12000 | [14] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
