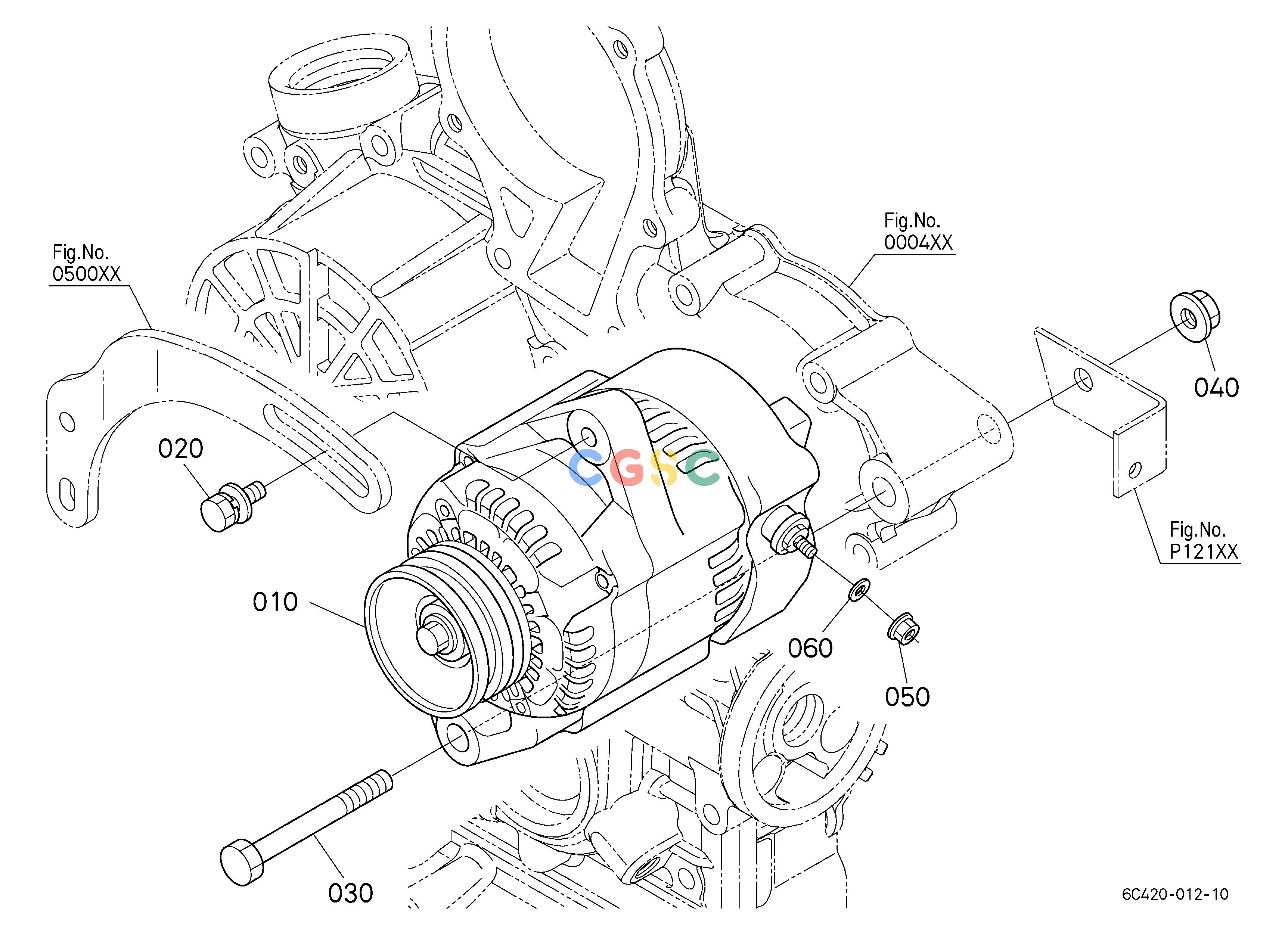

久保田零件查询A51500 ALTERNATOR ## NOTE:[CANADA SPEC] ORDER BY REF.No.010 NEW PART. ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
798 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K756161910
|
[1] |
ALTERNATOR,ASSY
|
7.1500(lbs); 3.250
|
| 010. |
K756161913
|
[1] |
ASSY ALTERNATOR
|
7.1500(lbs); 3.250
|
| 010. |
K756161914
|
[1] |
ALTERNATOR,ASSY
|
7.1500(lbs); 3.250
|
| 020. |
0112750825
|
[1] |
BOLT,W SEMS(LARGE WASHER)
|
0.0220(lbs); 0.010
|
| 030. |
0177451090
|
[1] |
BOLT,FLANGE
|
0.1320(lbs); 0.060
|
| 040. |
0213150100
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 050. |
0202150060
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0401350060
|
[1] |
WASHER, PLAIN
|
0.0022(lbs); 0.001
|
