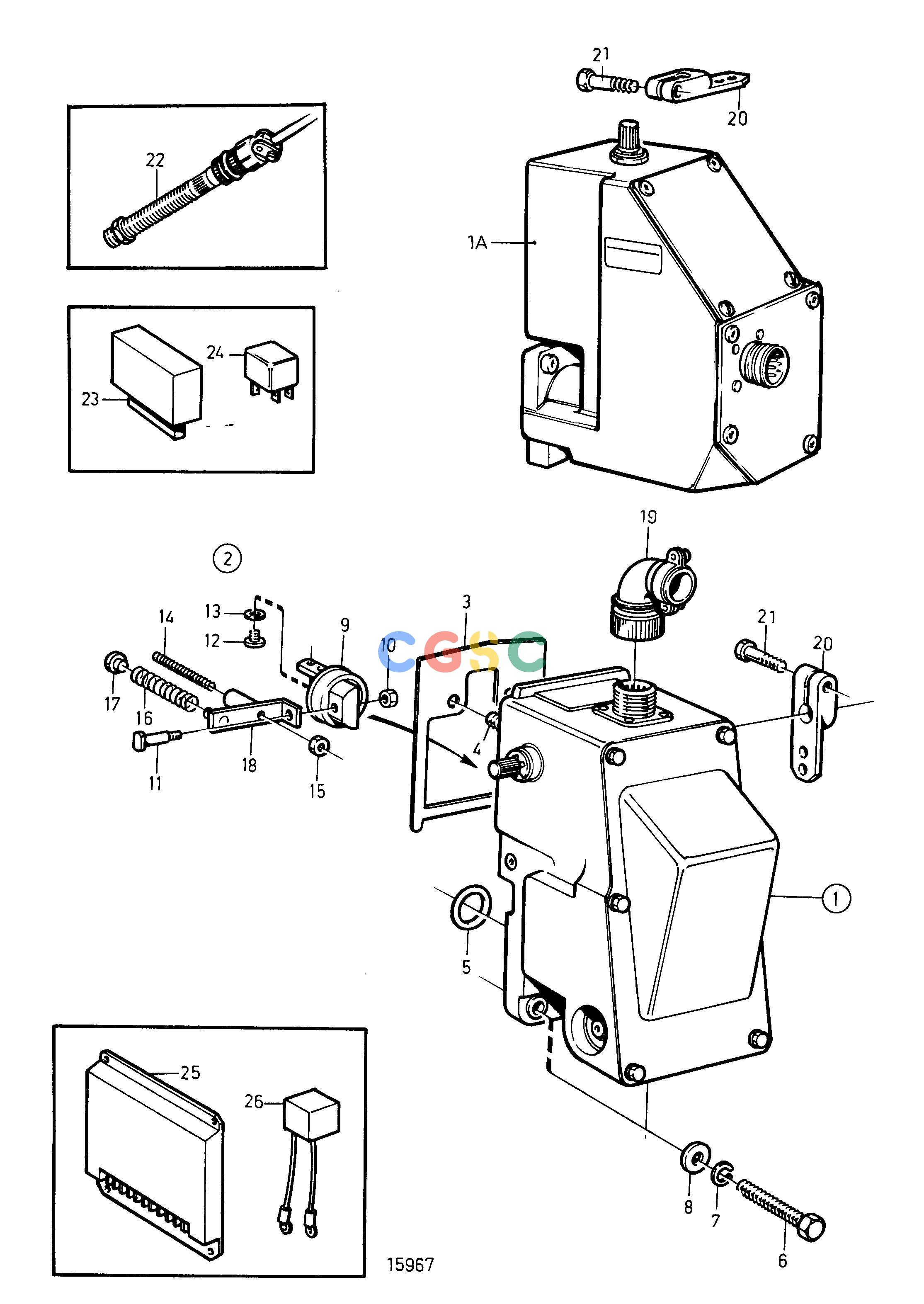

沃尔沃零件查询TAMD122A; TMD122A; TAMD122P-A; TAMD122P-B; TAMD122P-C; TMD122A/C; TAMD122AFControlsElectronic Speed ControlEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
848990
|
[1] |
Actuator
|
Replaced by governor 866167 + mounting kit 866169., Ambac
|
| 1A. |
866167
|
[1] |
Actuator
|
Replaced by 3825454., GAC. ACB275D
|
| 1. |
3825454
|
[1] |
Actuator
|
GAC. ACB275H
|
| 1. |
|
|
|
|
| 2. |
848989
|
[1] |
Mounting kit
|
For 848990
|
| 2. |
866169
|
[1] |
Mounting kit
|
For 866167
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
963103
|
[1] |
Lock nut
|
(847755)
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
|
|
|
|
| 18. |
|
|
|
|
| 19. |
846580
|
[1] |
Contact
|
|
| 20. |
846426
|
[1] |
Intermediate lever
|
|
| 21. |
955637
|
[1] |
Hexagon screw
|
|
| 22. |
863618
|
[1] |
Impulse sensor
|
(834551)
|
| 23. |
843910
|
[1] |
Speed monitor
|
|
| 24. |
877306
|
[1] |
Relay
|
(8153600)
|
| 25. |
881616
|
[1] |
Control unit
|
(865414)
|
| 26. |
849394
|
[1] |
Transient protector
|
For unit control..
|
