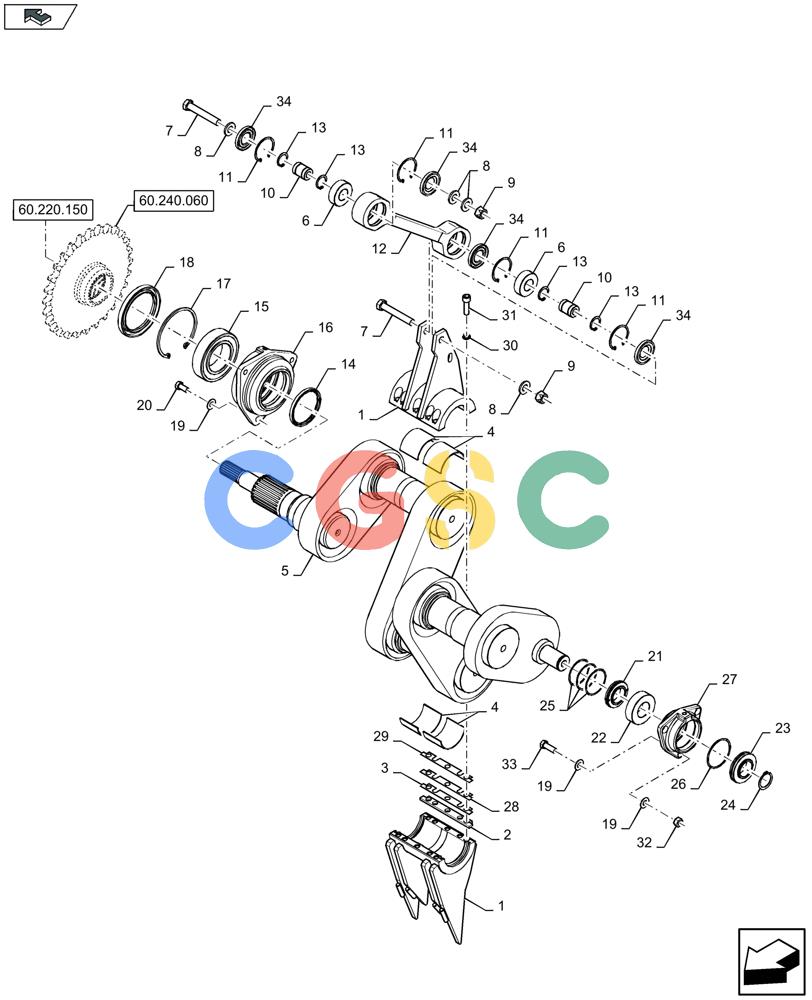

凯斯零件查询(LB324P) - BALER (9/12-) (60.240.020) - PACKER Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
981 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87325595
|
[3] |
FINGER
|
ZED
|
| 2. |
87324637
|
[6] |
SHIM
|
ZED
|
| 3. |
87324678
|
[6] |
SHIM
|
ZED
|
| 4. |
87325607
|
[6] |
SLEEVE
|
ZED
Set of 2
|
| 5. |
84320487
|
[1] |
CRANKSHAFT
|
ZED
, Serial Range: -C121 Superseded by part number: 47740498
|
| 5. |
47740498
|
[1] |
CRANKSHAFT
|
ZED
, Serial Range: -F122150
|
| 5. |
47969734
|
[1] |
CRANKSHAFT
|
ZED
, Start Serial: D151
|
| 6. |
84039251
|
[6] |
SPHERICAL BEARING,30mm ID x 62mm OD x 20mm W
|
ZED
|
| 7. |
374889
|
[6] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 8. |
394631
|
[12] |
WASHER,17mm ID x 34mm OD x 4mm Thk
|
NH
|
| 9. |
86000441
|
[6] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 10. |
84039273
|
[6] |
BUSHING
|
ZED
|
| 11. |
370012
|
[12] |
RING,M62, Internal
|
NH
|
| 12. |
84074860
|
[3] |
LINK CONROD
|
ZED
|
| 13. |
370003
|
[12] |
SNAP RING,M30, External
|
NH
|
| 14. |
84004409
|
[1] |
SEAL,85mm ID x 100mm OD x 9mm Thk
|
ZED
|
| 15. |
84074235
|
[1] |
SPHERICAL BEARING,75mm ID x 130mm OD x 31mm W
|
ZED
|
| 16. |
84074364
|
[1] |
BEARING HOUSING,95 mm ID x 152 mm OD x 76 mm
|
ZED
|
| 17. |
370014
|
[1] |
SNAP RING,M130, Internal
|
ZED
|
| 18. |
84074233
|
[1] |
SEAL,100mm ID x 135mm OD x 13mm Thk
|
ZED
|
| 19. |
140046
|
[9] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 20. |
300388
|
[3] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 21. |
84037892
|
[1] |
FLANGE
|
ZED
|
| 22. |
323327
|
[1] |
SPHERICAL BEARING,40mm ID x 80mm OD x 23mm W
|
ZED
|
| 23. |
84037895
|
[1] |
FLANGE
|
ZED
|
| 24. |
370006
|
[1] |
SNAP RING,M40, Ext
|
NH
|
| 25. |
84037891
|
[3] |
SNAP RING
|
ZED
|
| 26. |
9850345
|
[1] |
RING
|
ZED
|
| 27. |
84074862
|
[1] |
BEARING HOUSING,70 mm ID x 98 mm OD x 61 mm
|
ZED
|
| 28. |
84039433
|
[6] |
SHIM
|
ZED
|
| 29. |
84039432
|
[6] |
SHIM
|
ZED
|
| 30. |
84039421
|
[30] |
SPRING WASHER,12.2mm ID x 18mm OD x 2.5mm Thk
|
ZED
|
| 31. |
84039422
|
[30] |
HEX SOC SCREW,M12 x 1.25 x 40mm, Cl 8.8
|
ZED
|
| 32. |
9706685
|
[3] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 33. |
300389
|
[3] |
BOLT,M12 x 1.75 x 35mm, Cl 8.8
|
NH
Superseded by part number: 628-12035
|
| 34. |
417722
|
[12] |
SEAL,30mm ID x 62mm OD x 7mm Thk
|
ZED
|
