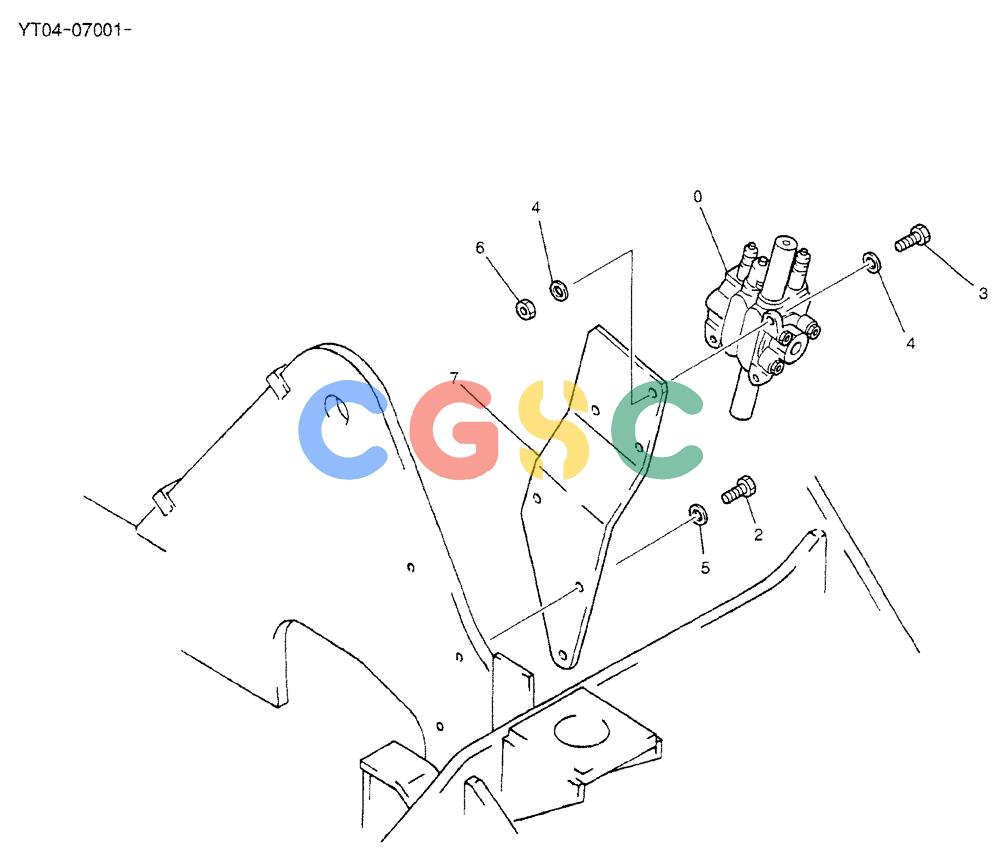

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (01-006) - VALVE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YT30V00021F1 | [1] | CONTROL VALVE | KOB(EXTRA & DOZER), (EXTRA & DOZER & BREAKER) |
| 2. | ZS18C12035 | [3] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 3. | ZS28C08035 | [3] | SCREW,Hex Socket Head, M8 x 35mm | KOBM08x1.25x35mm |
| 4. | ZW16H08000 | [6] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 5. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 6. | ZN18C08007 | [3] | NUT | KOBM08x1.25mm |
| 7. | YT64H01053P1 | [1] | BRACKET | KOB |
