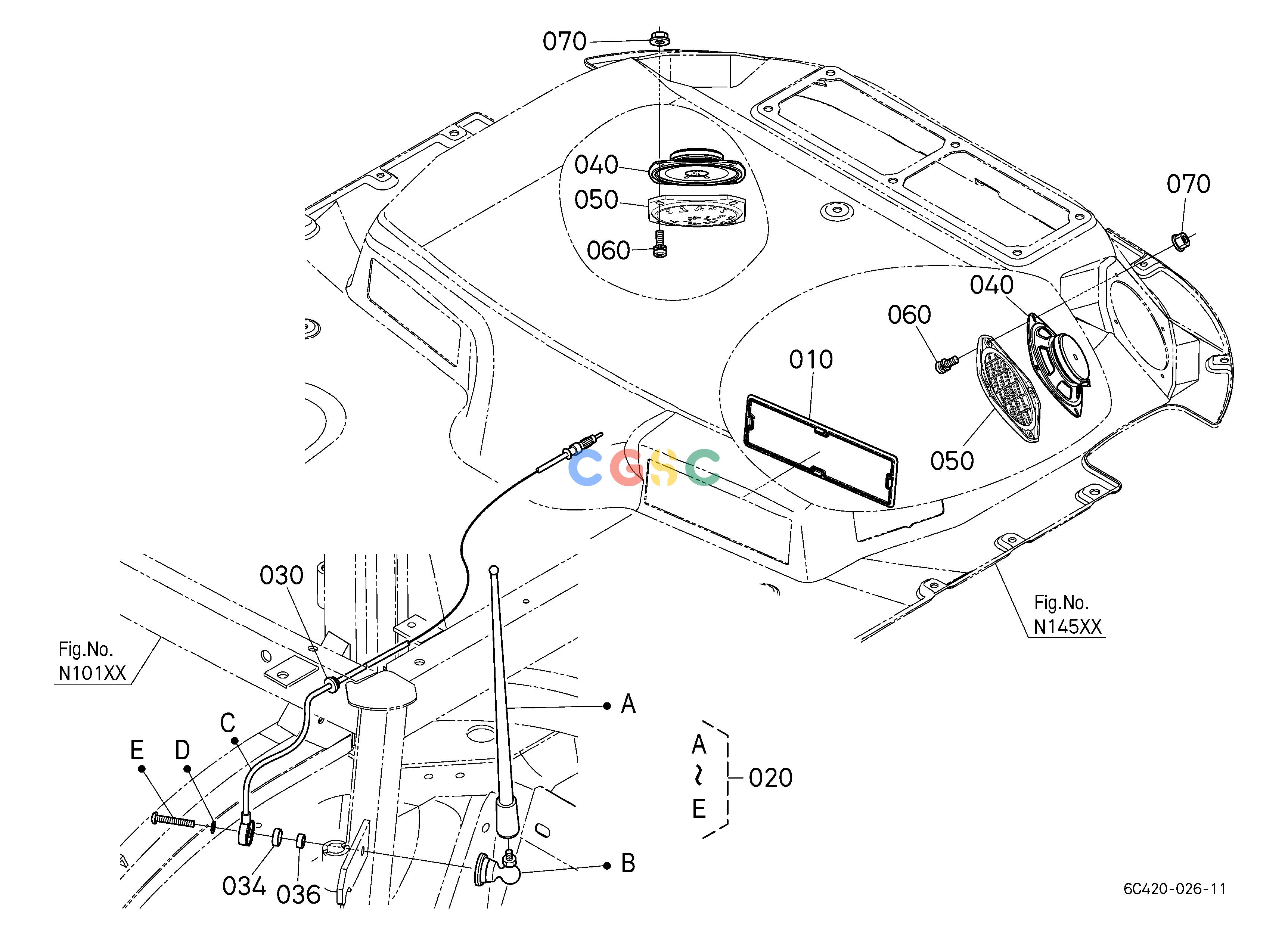

久保田零件查询B41500 ANTENNA/SPEAKER ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3C58172610
|
[1] |
COVER,RADIO CASSETTE
|
0.0660(lbs); 0.030
|
| 020. |
T185572690
|
[1] |
ANTENNA
|
0.3300(lbs); 0.150
|
| 030. |
6C23074060
|
[1] |
GROMMET
|
0.0066(lbs); 0.003
|
| 034. |
3Y20054150
|
[1] |
COLLAR(ANTENNA)
|
0.0022(lbs); 0.001
|
| 034. |
3C08112160
|
[1] |
WASHER, PLAIN
|
0.0176(lbs); 0.008
|
| 036. |
RC41838432
|
[1] |
SPACER(RUBBER)
|
0.0022(lbs); 0.001
|
| 040. |
3R60054130
|
[2] |
SPEAKER
|
0.6160(lbs); 0.280
|
| 050. |
T189572630
|
[2] |
COVER,SPEAKER
|
0.0660(lbs); 0.030
|
| 060. |
3691950670
|
[8] |
SCREW,WITH WASHER
|
0.0044(lbs); 0.002
|
| 070. |
0276150040
|
[8] |
NUT,FLANGE
|
0.0044(lbs); 0.002
|
