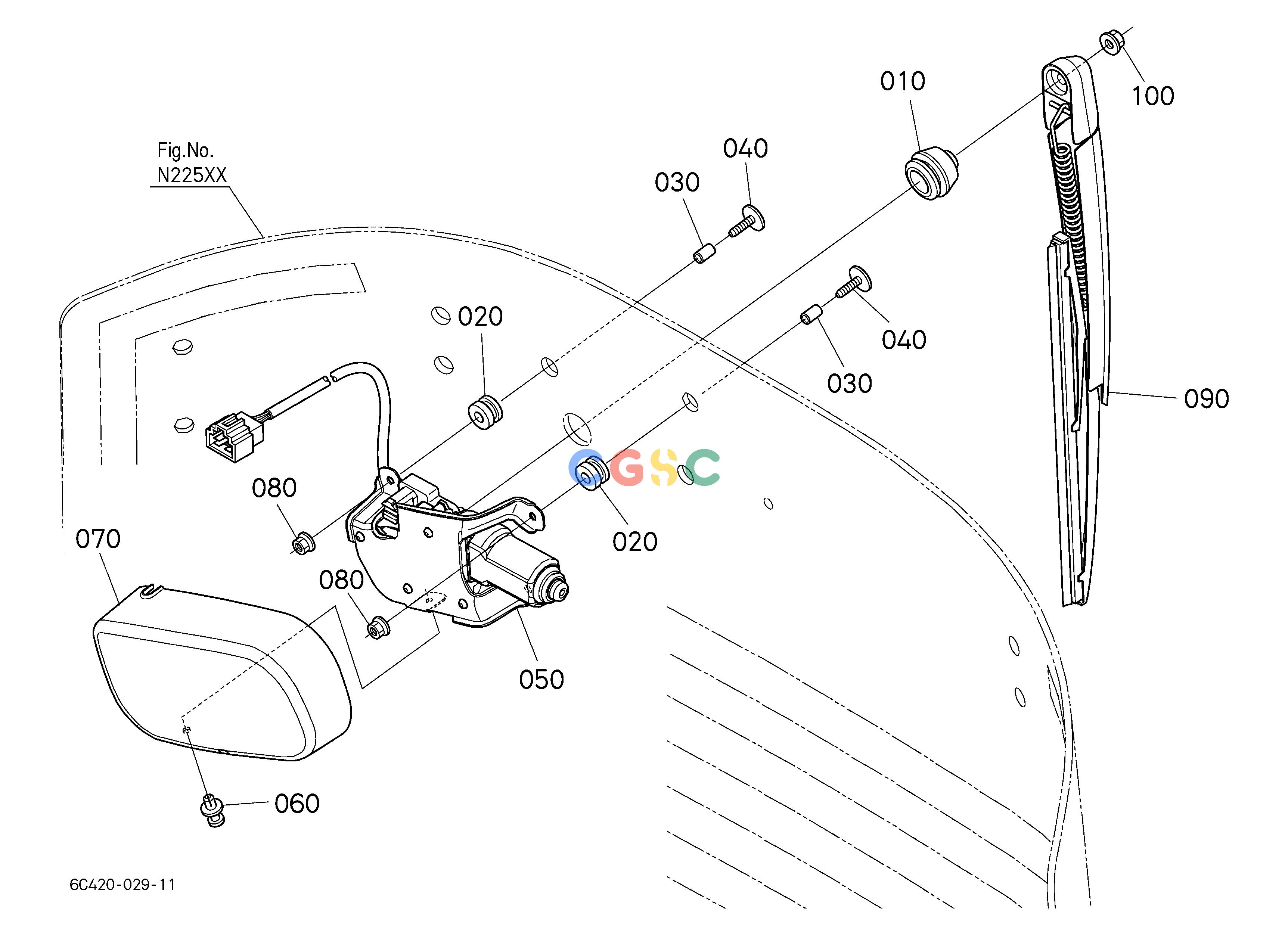

久保田零件查询B43200 WIPER (REAR) ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
574 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T185572680
|
[1] |
GASKET
|
0.0242(lbs); 0.011
|
| 020. |
T127572690
|
[3] |
PACKING
|
0.0110(lbs); 0.005
|
| 030. |
T127572710
|
[3] |
COLLAR(REAR WIPER)
|
0.0044(lbs); 0.002
|
| 040. |
T127572720
|
[3] |
BOLT(REAR WIPER)
|
0.0176(lbs); 0.008
|
| 050. |
T185572730
|
[1] |
MOTOR,REAR WIPER
|
1.4300(lbs); 0.650
|
| 060. |
T127572740
|
[1] |
RIVET(PUSH)
|
0.0022(lbs); 0.001
|
| 070. |
T185572750
|
[1] |
COVER,REAR WIPER
|
0.1650(lbs); 0.075
|
| 080. |
0202150060
|
[3] |
NUT
|
0.0110(lbs); 0.005
|
| 090. |
T225571122
|
[1] |
ASSY WIPER,FRONT
|
0.4070(lbs); 0.185
|
| 100. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
