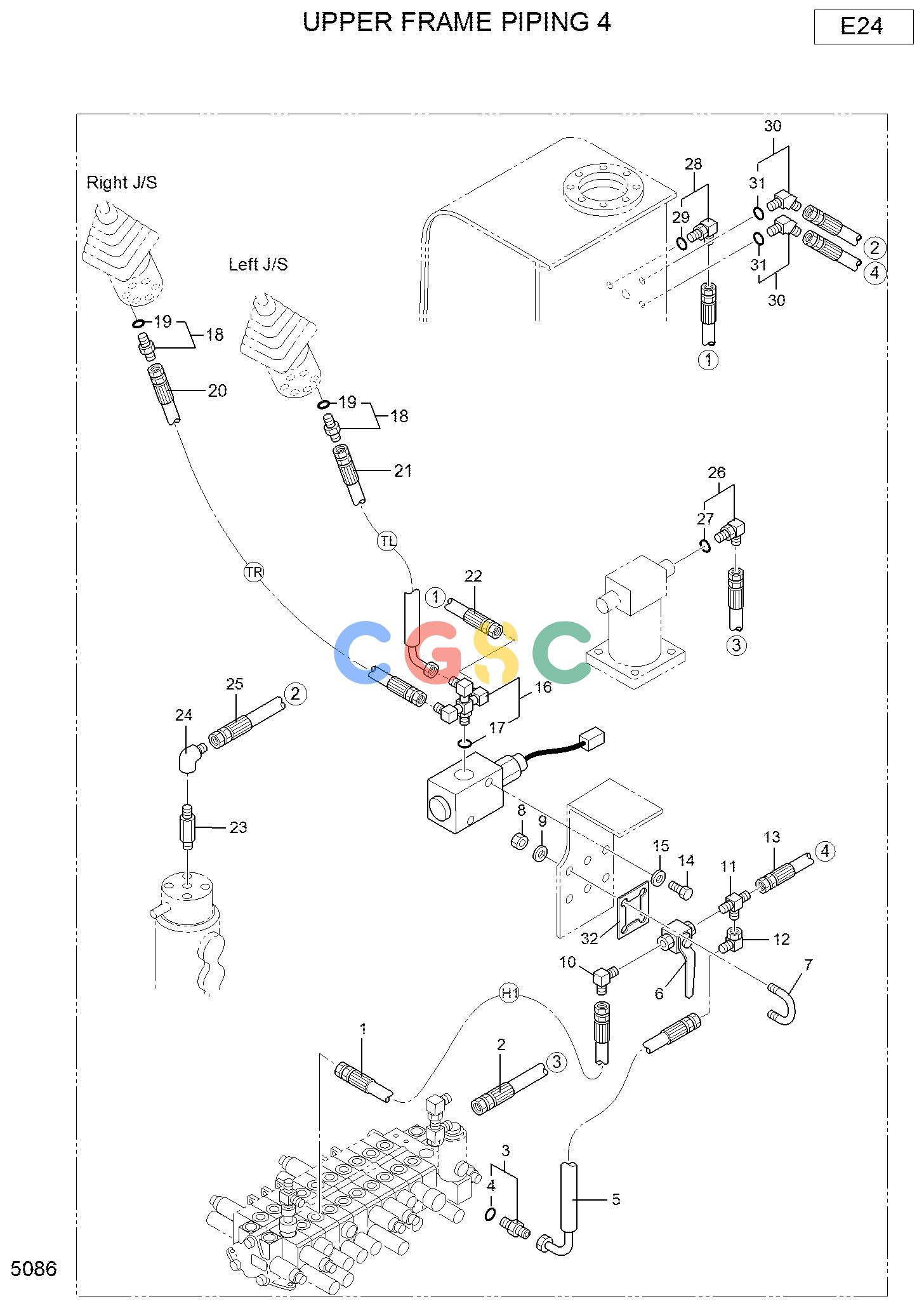

现代零件查询R22-7 UPPER FRAME PIPING 4EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-03468
|
[1] |
HOSE
|
|
| 2. |
XJDH-03469
|
[1] |
HOSE
|
|
| 3. |
XJDH-00445
|
[1] |
CONNECTOR-MALE
|
|
| 4. |
XJDH-00328
|
[1] |
O-RING
|
|
| 5. |
XJDH-03470
|
[1] |
HOSE
|
|
| 6. |
XJDH-02808
|
[1] |
VALVE-BALL
|
|
| 7. |
XJDH-03471
|
[2] |
BOLT-U
|
|
| 8. |
XJDH-00167
|
[4] |
NUT
|
|
| 9. |
XJDH-00278
|
[4] |
WASHER
|
|
| 10. |
XJDH-00424
|
[1] |
ELBOW-HOSE 45
|
|
| 11. |
XJDH-03472
|
[1] |
TEE
|
|
| 12. |
XJDH-03473
|
[1] |
ELBOW-UNION 90
|
|
| 13. |
XJDH-03474
|
[1] |
HOSE
|
|
| 14. |
XJDH-02874
|
[2] |
BOLT
|
|
| 15. |
XJDH-00274
|
[2] |
WASHER
|
|
| 16. |
XJDH-02823
|
[1] |
CROSS
|
|
| 17. |
XJDH-00328
|
[1] |
O-RING
|
|
| 18. |
XJDH-00503
|
[2] |
NIPPLE-HOSE
|
|
| 19. |
XJDH-00328
|
[1] |
O-RING
|
|
| 20. |
XJDH-00780
|
[1] |
HOSE
|
|
| 21. |
XJDH-03475
|
[1] |
HOSE
|
|
| 22. |
XJDH-03476
|
[1] |
HOSE
|
|
| 23. |
XJDH-03477
|
[1] |
NIPPLE-LONG
|
|
| 24. |
XJDH-02932
|
[1] |
ELBOW 90
|
|
| 25. |
XJDH-03478
|
[1] |
HOSE
|
|
| 26. |
XJDH-00465
|
[1] |
ELBOW-MALE 45
|
|
| 27. |
XJDH-00331
|
[1] |
O-RING
|
|
| 28. |
XJDH-00472
|
[1] |
ELBOW-MALE 90
|
|
| 29. |
XJDH-00331
|
[1] |
O-RING
|
|
| 30. |
XJDH-00462
|
[2] |
ELBOW-MALE 45
|
|
| 31. |
XJDH-00328
|
[1] |
O-RING
|
|
| 32. |
XJDH-03479
|
[1] |
SPACER
|
|
