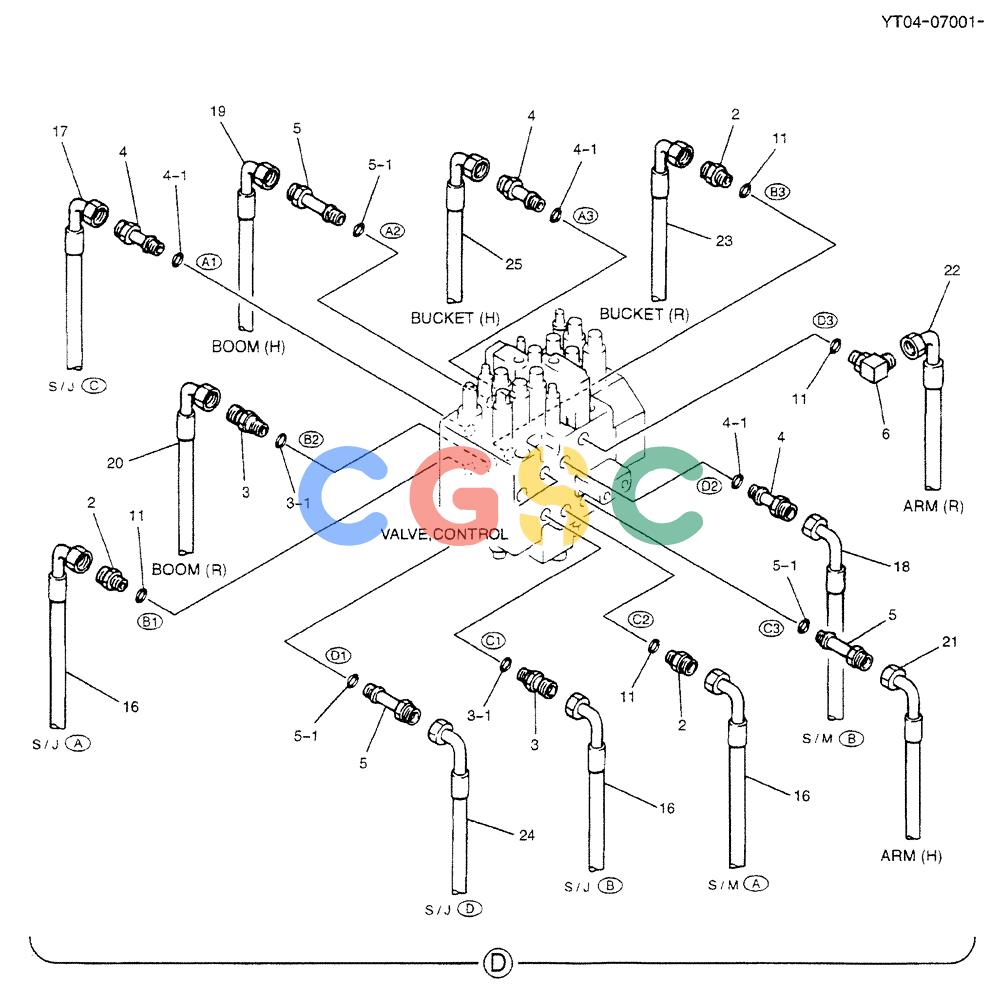

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (01-010[02]) - HYD LINES, UPP (BREAKER, NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
133 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT03H00027F2 | [1] | HYD LINES, UPP | |
| 1. | 2444Z3713 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 1-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 2. | ZA23F18008 | [3] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 3. | YT03H01028P1 | [2] | CONNECTION | KOB |
| 3-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 4. | YT03H01053P1 | [3] | CONNECTION | KOB |
| 4-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 5. | YT03H01054P1 | [3] | CONNECTION | KOB(Incls. O-Ring ZD12P01800) |
| 5-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 6. | ZA33F18008 | [1] | ELBOW | KOB |
| 7. | YT03H01036P1 | [2] | CLAMP | KOB |
| 8. | YT03H01021P1 | [1] | CLAMP | KOB |
| 9. | YT03H01031P1 | [1] | CLAMP | KOB |
| 10. | YT32H01030P1 | [6] | BUSHING | KOB |
| 11. | ZD12P01800 | [6] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | ZS18C08040 | [4] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 13. | YT03H01041P1 | [1] | CLAMP | KOB |
| 14. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 15. | YT03H01040P1 | [2] | GROMMET | KOB |
| 16. | YT03H01080D1 | [3] | HOSE | KOB |
| 17. | YT03H01080D2 | [1] | HOSE | KOB |
| 18. | YT03H01080D3 | [1] | HOSE | KOB |
| 19. | YT03H01039D7 | [1] | HOSE | KOB Superseded by part number: YT03H01082D6 |
| 20. | YT03H01039D8 | [1] | HOSE | KOB Superseded by part number: YT03H01082D7 |
| 21. | YT03H01039DA | [1] | HOSE | KOB Superseded by part number: YT03H01082D8 |
| 22. | YT03H01039D3 | [1] | HOSE | KOB Superseded by part number: YT03H01082D3 |
| 23. | YT03H01039DB | [1] | HOSE | KOB Superseded by part number: YT03H01082D9 |
| 24. | YT03H01080D4 | [1] | HOSE | KOB |
| 25. | YT03H01039D1 | [1] | HOSE | KOB Superseded by part number: YT03H01082D1 |
| 29. | YT19H01015P1 | [2] | ELBOW | KOB Superseded by part number: ZA38F18008 |
