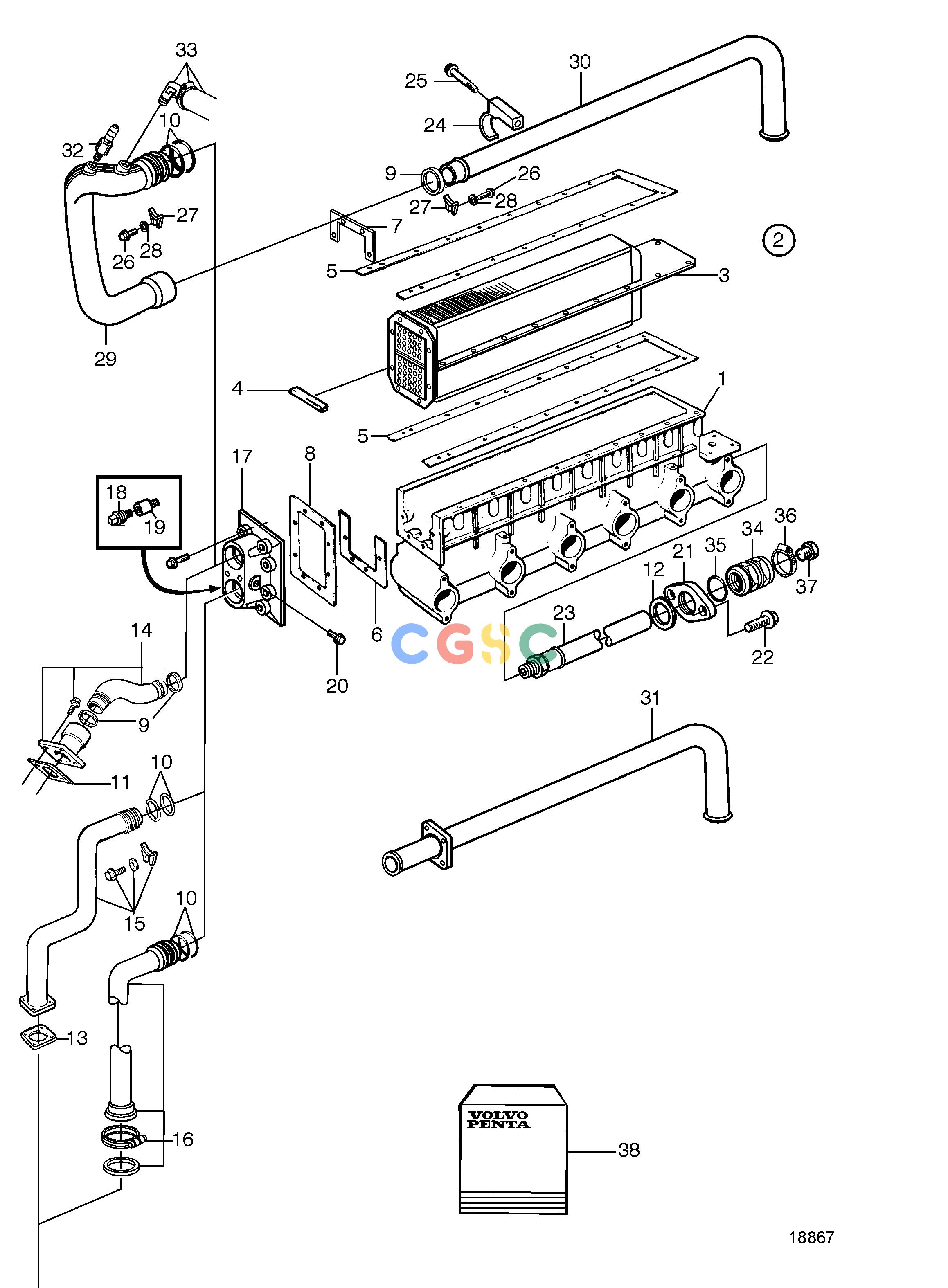

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-ACooling SystemAfter Cooler and Installation Components: SN-XXXXXXXXXX/19705EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7746600_052
|
|
Inlet pipe
|
|
| 2. |
|
|
|
Repl by 877389
|
| 2. |
877389
|
[1] |
Charge air cooler ki
|
(876832)
|
| 3. |
|
|
|
Included in after cooler kit 877389., TH=4,0mm, (3825902)
|
| 4. |
7746600_052
|
|
Sealing strip
|
|
| 5. |
7746600_052
|
|
Gasket
|
|
| 6. |
7746600_052
|
|
Gasket
|
|
| 7. |
7746600_052
|
|
Gasket
|
|
| 8. |
7746600_052
|
|
Gasket
|
|
| 9. |
863209
|
[1] |
Sealing ring
|
Included in after cooler kit 877389.
|
| 10. |
925072
|
[1] |
O-ring
|
Included in after cooler kit 877389.
|
| 11. |
842137
|
[1] |
Gasket
|
Included in after cooler kit 877389.
|
| 12. |
949722
|
[1] |
O-ring
|
Included in after cooler kit 877389.
|
| 13. |
862583
|
[1] |
Gasket
|
|
| 14. |
7746600_065
|
|
Connector, heat exchanger
|
|
| 15. |
7746600_095
|
|
Connector, sea water pump
|
|
| 15. |
7746600_098
|
|
Connector, sea water pump
|
|
| 16. |
7746600_097
|
|
Connector, sea water pump
|
|
| 17. |
7746600_052
|
|
Lock
|
|
| 18. |
838928
|
[1] |
Plug
|
|
| 19. |
838929
|
[1] |
Anode
|
|
| 20. |
981749
|
[1] |
Plug
|
(180759)
|
| 21. |
3836047
|
[1] |
Cap
|
Included in after cooler kit 877389.
|
| 22. |
946173
|
[2] |
Flange screw
|
|
| 23. |
3837714
|
[1] |
Hose
|
Included in after cooler kit 877389.
|
| 24. |
849401
|
[2] |
Clamp
|
For engines in keel cooled version.
|
| 25. |
965178
|
[2] |
Flange screw
|
For engines in keel cooled version.
|
| 26. |
944926
|
[2] |
Flange screw
|
For engines in keel cooled version.
|
| 27. |
864559
|
[2] |
Clamp
|
For engines in keel cooled version.
|
| 28. |
976944
|
[2] |
Washer
|
For engines in keel cooled version.
|
| 29. |
3825919
|
[1] |
Pipe elbow
|
For engines in keel cooled version.
|
| 30. |
866771
|
[1] |
Coolant pipe, oil cooler-rev.gear
|
For engines in keel cooled version.
|
| 31. |
866772
|
[1] |
Coolant pipe, oil cooler-rev.gear
|
For engine mounted heat exchanger.
|
| 32. |
966871
|
[1] |
Shut-off cock
|
|
| 33. |
|
|
|
|
| 34. |
874583
|
[1] |
Grommet
|
Included in after cooler kit 877389.
|
| 35. |
941705
|
[1] |
O-ring
|
Included in after cooler kit 877389.
|
| 36. |
961663
|
[1] |
Hose clamp
|
Included in after cooler kit 877389.
|
| 37. |
3582636
|
[1] |
Plug
|
Included in after cooler kit 877389.
|
| 38. |
7746600_052
|
|
Gasket kit
|
|
