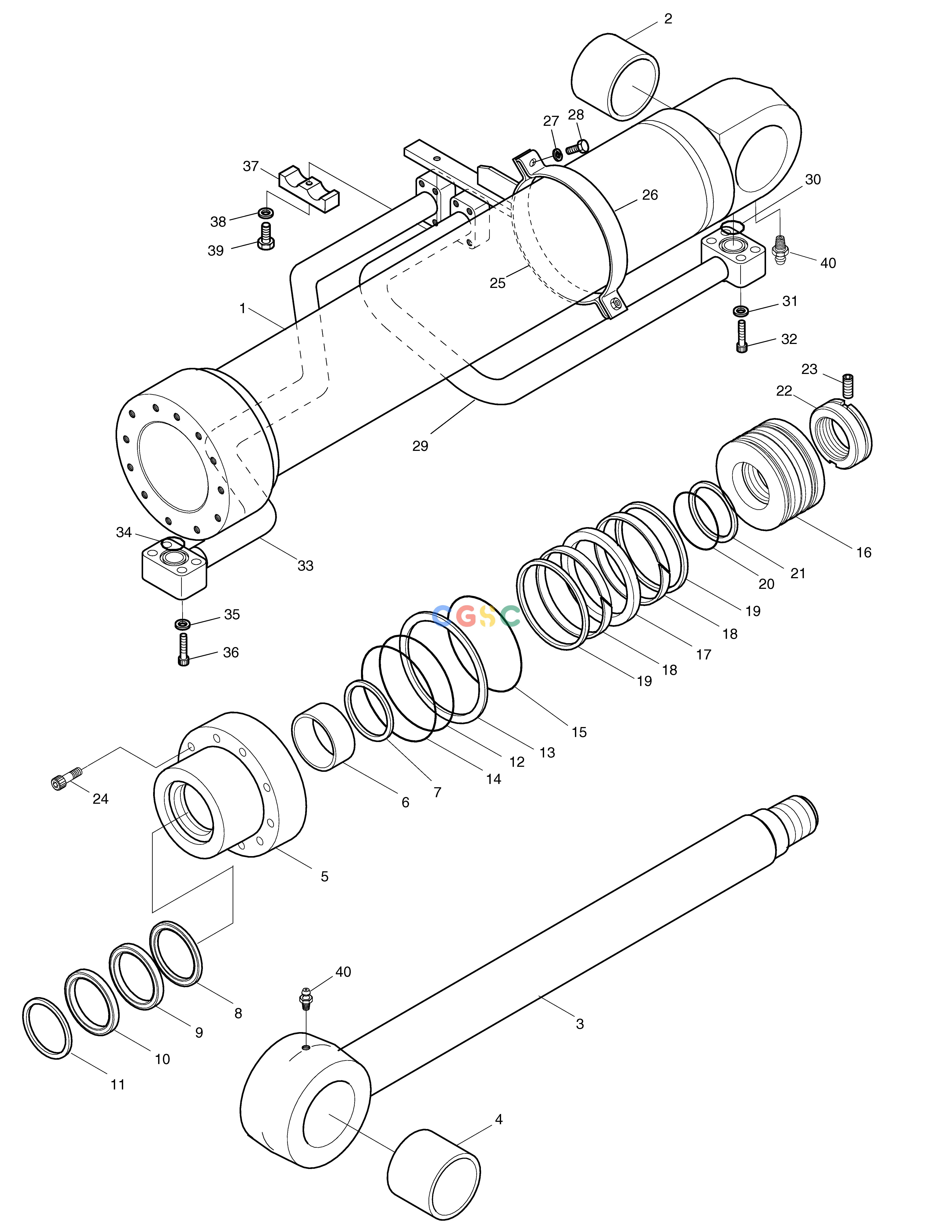

斗山零件查询BOOM CYLINDER-L.H. SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9279BKT
|
[1] |
SEAL KIT;BOOM CYL.
|
|
| -. |
2440-9279A
|
[1] |
CYLINDER;BOOM(L.H.)
|
|
| 1. |
53A424-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020320
|
[1] |
WIPER;DUST
|
|
| 11. |
00M498-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311781
|
[1] |
O-RING
|
|
| 13. |
53A359-0
|
[1] |
RING;BACK UP
|
|
| 14. |
E6490060
|
[1] |
O-RING
|
|
| 15. |
00C311-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53B430-0
|
[1] |
PISTON
|
|
| 17. |
E5130340
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00W272-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R103-0
|
[2] |
RING;SLYD
|
|
| 2. |
03B606-1
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6311441
|
[1] |
O-RING
|
|
| 21. |
53B441-0
|
[2] |
RING;BACK UP
|
|
| 22. |
53B432-0
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
E0502439
|
[12] |
BOLT;HEX SOCKET
|
|
| 25. |
53B438-0
|
[1] |
PIPE BAND ASS'Y
|
|
| 26. |
00P376-0
|
[1] |
BAND;PIPE
|
|
| 27. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 28. |
E0020673
|
[2] |
BOLT;HEX
|
|
| 29. |
53B267-2
|
[1] |
PIPE ASS'Y-H(L.H.)
|
|
| 3. |
53B428-0
|
[1] |
ROD ASS'Y
|
|
| 30. |
E6300761
|
[1] |
O-RING
|
|
| 31. |
E3110112
|
[4] |
WASHER;SPRING
|
|
| 32. |
E0501546
|
[4] |
BOLT;SOCKET
|
|
| 33. |
53B437-0
|
[1] |
PIPE ASS'Y-R(L.H.)
|
|
| 34. |
E6300761
|
[1] |
O-RING
|
|
| 35. |
E3110112
|
[4] |
WASHER;SPRING
|
|
| 36. |
E0501566
|
[4] |
BOLT;HEX SOCKET
|
|
| 37. |
00C260-0
|
[1] |
CLAMP;PIPE
|
|
| 38. |
E3110112
|
[1] |
WASHER;SPRING
|
|
| 39. |
E0021023
|
[1] |
BOLT;HEX
|
|
| 4. |
03B606-1
|
[1] |
BUSH;STEEL
|
|
| 40. |
E8841022
|
[2] |
NIPPLE;GREASE
|
|
| 5. |
53B433-0
|
[1] |
ROD COVER
|
|
| 6. |
E8412283
|
[1] |
DU-BUSH
|
|
| 7. |
00M315-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500320
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303320
|
[1] |
U-PACKING
|
|
