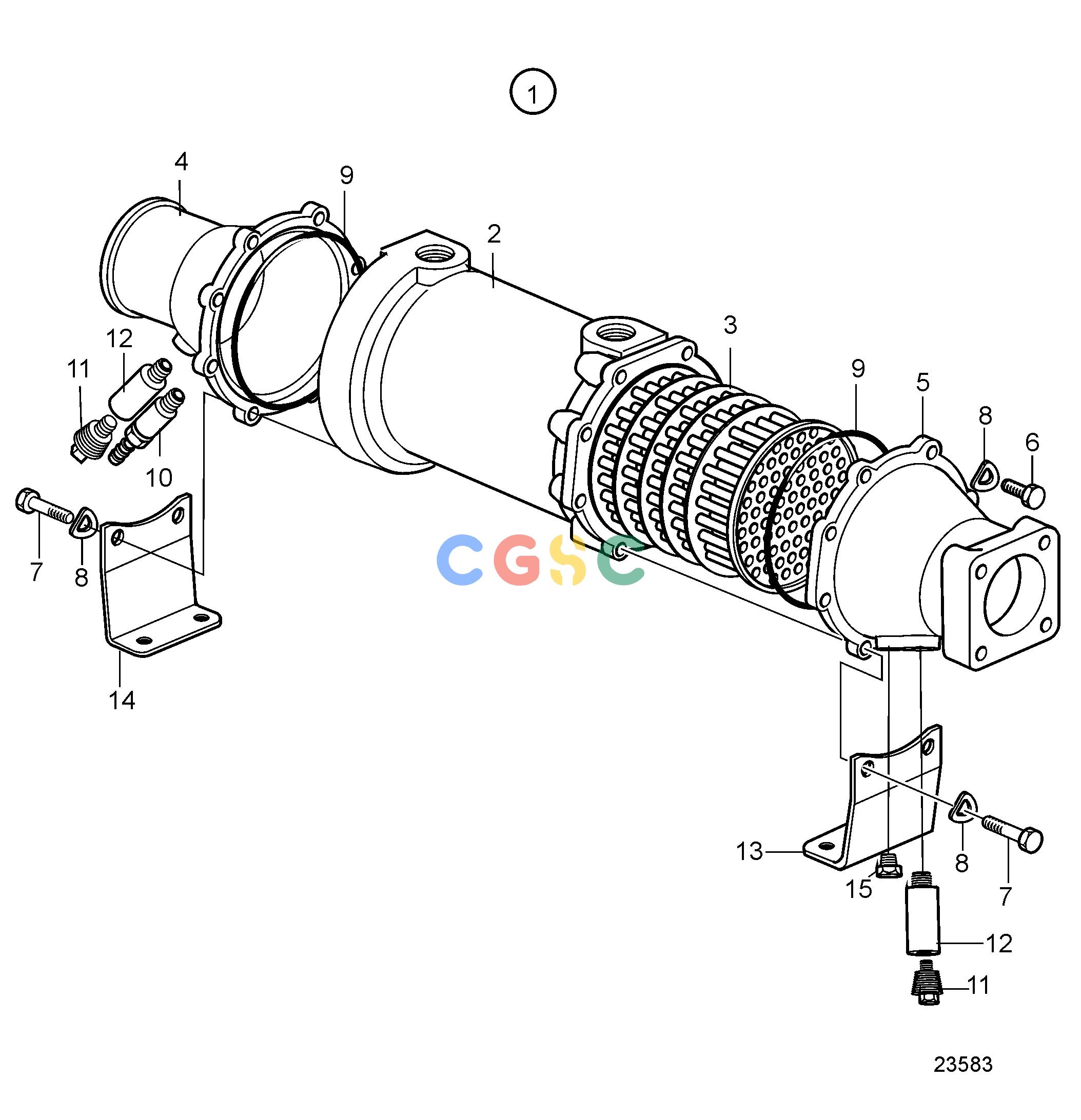

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-ACooling SystemOil Cooler for Reverse Gear, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3825936
|
[1] |
Oil cooler
|
|
| 2. |
849618
|
[1] |
Housing
|
|
| 3. |
3825932
|
[1] |
Insert
|
|
| 4. |
836888
|
[1] |
End cover
|
|
| 5. |
849402
|
[1] |
End cover
|
Replaced by end cover 3826210 and plug 861551.
|
| 5. |
3826210
|
[1] |
End cover
|
|
| 6. |
955514
|
[12] |
Hexagon screw
|
|
| 7. |
940117
|
[4] |
Hexagon screw
|
|
| 8. |
941906
|
[16] |
Spring washer
|
|
| 9. |
925027
|
[2] |
O-ring
|
|
| 10. |
949918
|
[1] |
Shut-off cock
|
|
| 11. |
838928
|
[2] |
Plug
|
|
| 12. |
838929
|
[2] |
Anode
|
|
| 13. |
836112
|
[1] |
Base
|
|
| 14. |
836113
|
[1] |
Base
|
|
| 15. |
861551
|
[1] |
Plug
|
|
