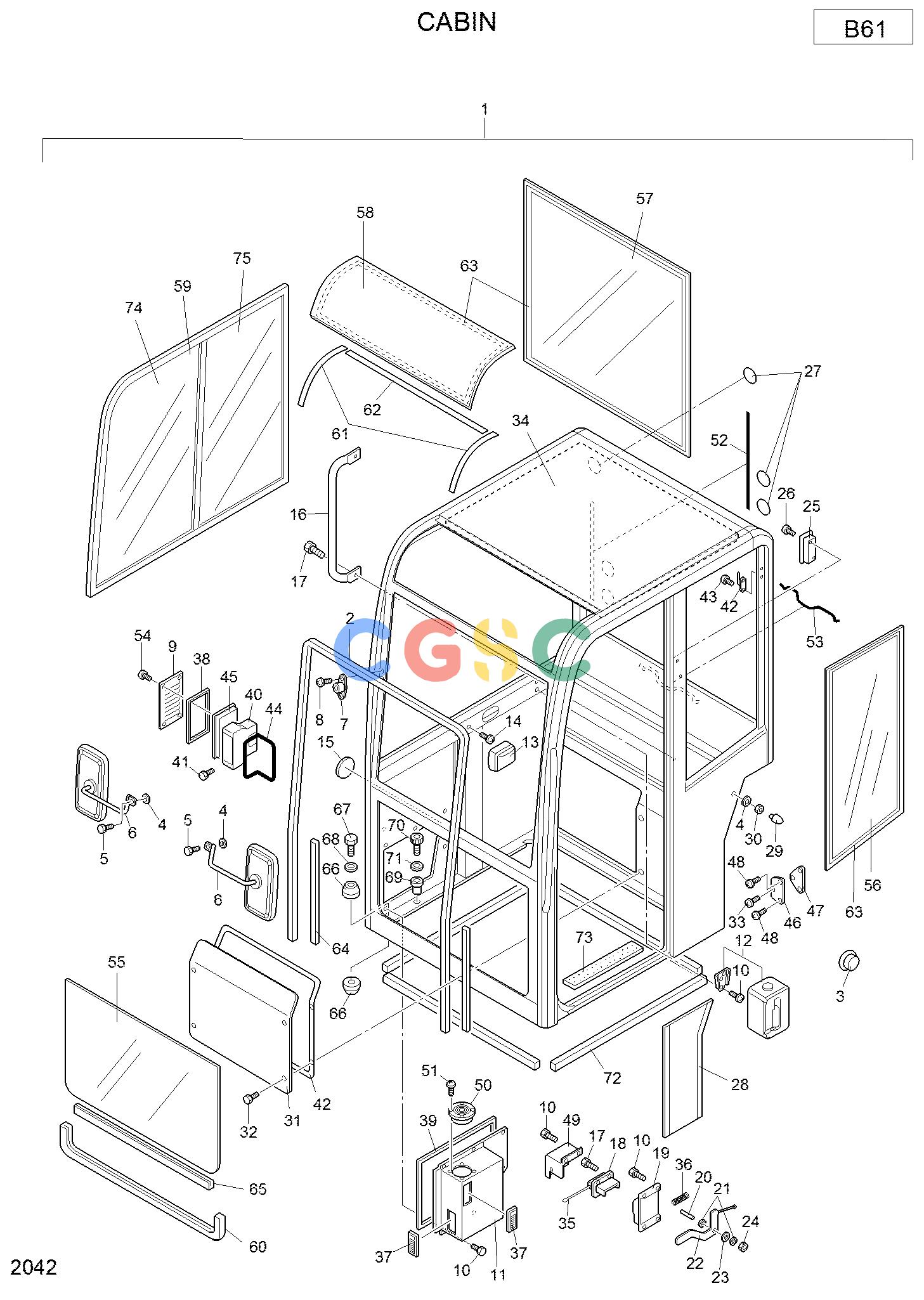

现代零件查询R22-7 CABINEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-04141
|
[1] |
CABIN ASSY
|
|
| 2. |
XJDH-00939
|
[1] |
SEAL-RUBBER
|
|
| 3. |
XJDH-04142
|
[1] |
GROMMET
|
|
| 4. |
XJDH-01106
|
[3] |
WASHER
|
|
| 5. |
XJDH-04143
|
[2] |
BOLT
|
|
| 6. |
XJDH-00957
|
[2] |
MIRROR ASSY
|
|
| 7. |
XJDH-00930
|
[1] |
NOZZLE HOSE ASSY
|
|
| 8. |
XJDH-00972
|
[2] |
SCREW-SET
|
|
| 9. |
XJDH-04144
|
[1] |
COVER-INTAKE AIR
|
|
| 10. |
XJDH-01091
|
[14] |
BOLT
|
|
| 11. |
XJDH-04145
|
[1] |
COVER-HEATER
|
|
| 12. |
XJDH-00929
|
[1] |
TANK-WASHER
|
|
| 13. |
XJDH-04146
|
[1] |
ASHTRAY
|
|
| 14. |
XJDH-04147
|
[2] |
SCREW
|
|
| 15. |
XJDH-04148
|
[1] |
GROMMET
|
|
| 16. |
XJDH-00909
|
[1] |
HANDLE-ASSIST
|
|
| 17. |
XJDH-01074
|
[6] |
BOLT-SET
|
|
| 18. |
XJDH-00854
|
[1] |
DOOR CATCH ASSY
|
|
| 19. |
XJDH-00893
|
[1] |
COVER-CATCH LEVER
|
|
| 20. |
XJDH-00852
|
[1] |
PIPE
|
|
| 21. |
XJDH-00971
|
[2] |
WASHER
|
|
| 22. |
XJDH-00851
|
[1] |
LEVER CATCH DOOR
|
|
| 23. |
XJDH-00853
|
[1] |
WASHER
|
|
| 24. |
XJDH-01101
|
[1] |
NUT-FLANGE
|
|
| 25. |
XJDH-00931
|
[1] |
LAMP-ROOM
|
|
| 26. |
XJDH-01090
|
[2] |
SCREW
|
|
| 27. |
XJDH-00965
|
[3] |
COVER-SEAL
|
|
| 28. |
XJDH-04149
|
[1] |
PAD(LH)
|
|
| 29. |
XJDH-00944
|
[1] |
STOPPER-RUBBER
|
|
| 30. |
XJDH-01099
|
[1] |
NUT
|
|
| 31. |
XJDH-04150
|
[1] |
COVER-REAR PANEL
|
|
| 32. |
XJDH-04151
|
[4] |
BOLT-SET
|
|
| 33. |
XJDH-00969
|
[1] |
SCREW
|
|
| 34. |
XJDH-04152
|
[1] |
PAD-ROOF
|
|
| 35. |
XJDH-04153
|
[1] |
WIRE ASSY-RELEASE
|
|
| 36. |
XJDH-00966
|
[1] |
SPRING
|
|
| 37. |
XJDH-04154
|
[2] |
LOUVER ASSY
|
|
| 38. |
XJDH-04155
|
[1] |
SEAL-RUBBER
|
|
| 39. |
XJDH-04156
|
[2] |
SEAL-RUBBER
|
|
| 40. |
XJDH-04157
|
[1] |
HEATER ASSY
|
|
| 41. |
XJDH-04158
|
[3] |
BOLT
|
|
| 42. |
XJDH-00961
|
[1] |
HOOK-COAT
|
|
| 43. |
XJDH-01095
|
[2] |
SCREW
|
|
| 44. |
XJDH-04159
|
[1] |
SEAL
|
|
| 45. |
XJDH-04160
|
[1] |
FILTER-RETURN
|
|
| 46. |
XJDH-04089
|
[1] |
HOLDER-GLASS UP
|
|
| 47. |
XJDH-04120
|
[1] |
PLATE ASSY-LOW GLASS
|
|
| 48. |
XJDH-04121
|
[2] |
SCREW
|
|
| 49. |
XJDH-04122
|
[1] |
COVER-DOOR CATCH
|
|
| 50. |
XJDH-04161
|
[1] |
ROUND LOUVER
|
|
| 51. |
XJDH-04191
|
[4] |
SCREW
|
|
| 52. |
XJDH-04192
|
[1] |
GLASS RUN
|
|
| 53. |
XJDH-04193
|
[1] |
FINISHER
|
|
| 54. |
XJDH-01098
|
[10] |
SCREW
|
|
| 55. |
XJDH-04194
|
[1] |
GLASS-FRONT LOW
|
|
| 56. |
XJDH-04195
|
[1] |
GLASS(LH)
|
|
| 57. |
XJDH-04196
|
[1] |
GLASS-REAR
|
|
| 58. |
XJDH-04197
|
[1] |
COVER-ROOF
|
|
| 59. |
XJDH-04198
|
[1] |
SASH ASSY-SIDE RH
|
|
| 60. |
XJDH-04199
|
[1] |
SEAL
|
|
| 61. |
XJDH-00941
|
[2] |
MOULDING
|
|
| 62. |
XJDH-04200
|
[1] |
MOULDING
|
|
| 63. |
XJDH-04201
|
[1] |
DUM
|
|
| 64. |
XJDH-00943
|
[2] |
GLASS-RUN
|
|
| 65. |
XJDH-04202
|
[1] |
FINISHER
|
|
| 66. |
XJDH-01044
|
[8] |
RUBBER-ABSORBRT
|
|
| 67. |
XJDH-00076
|
[4] |
BOLT
|
|
| 68. |
XJDH-01525
|
[4] |
WASHER
|
|
| 69. |
XJDH-00850
|
[4] |
SPACER
|
|
| 70. |
XJDH-00095
|
[4] |
BOLT
|
|
| 71. |
XJDH-00283
|
[4] |
WASHER
|
|
| 72. |
XJDH-00734
|
[5] |
SEAL
|
|
| 73. |
XJDH-00849
|
[1] |
NON SLIP
|
|
| 74. |
XJDH-03017
|
[1] |
GLASS-(F)SASH,RH
|
|
| 75. |
XJDH-03018
|
[1] |
GLASS-(R)SASH,RH
|
|
