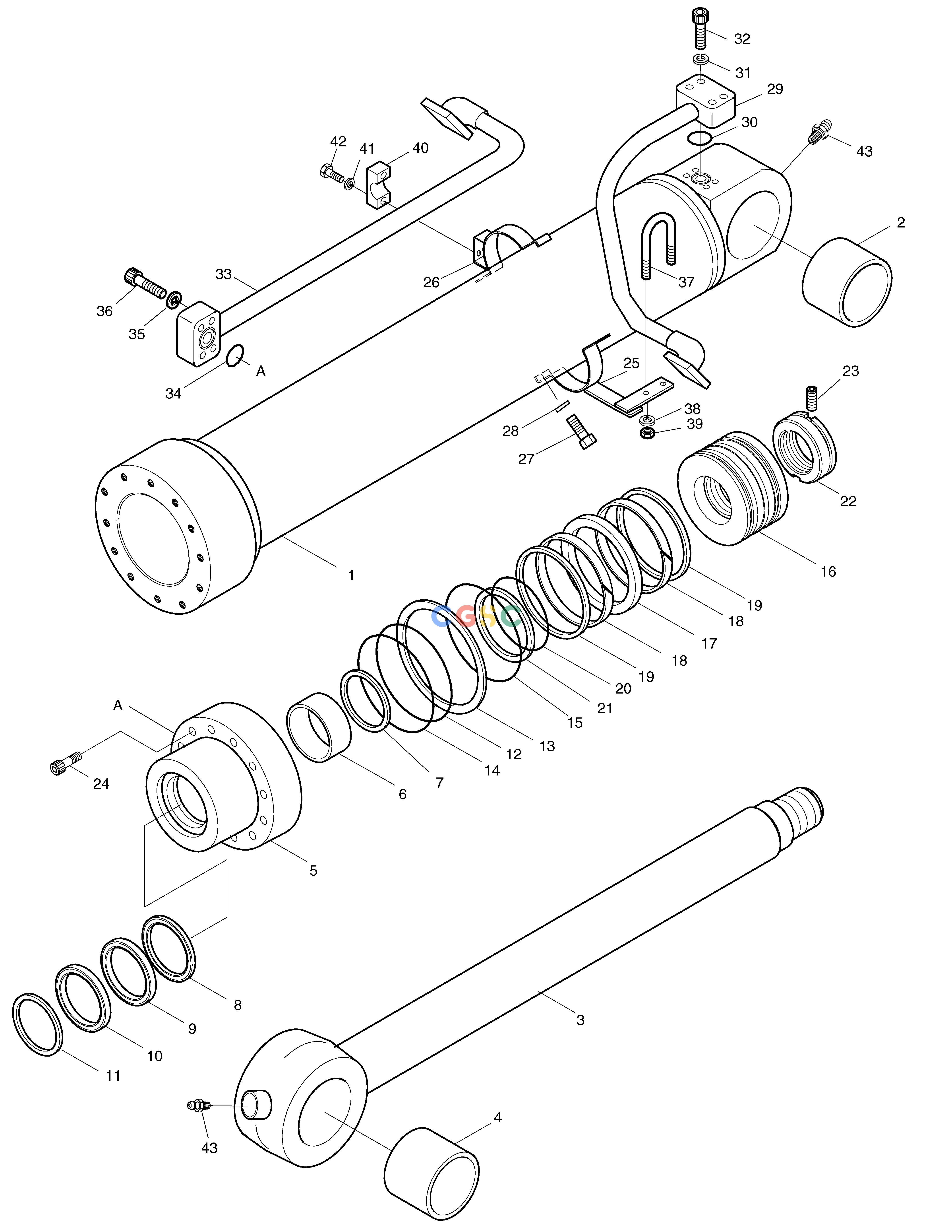

斗山零件查询BUCKET CYLINDER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
590 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2440-9281AKT
|
[1] |
SEAL KIT;BUCKET CYL.
|
|
| -. |
2440-9281A
|
[1] |
CYLINDER;BUCKET
|
2440-9281B
|
| 1. |
53U388-0
|
[1] |
TUBE ASS'Y
|
|
| 10. |
E6020320
|
[1] |
WIPER;DUST
|
|
| 11. |
00M498-0
|
[1] |
RING;RETAINING
|
|
| 12. |
E6311781
|
[1] |
O-RING
|
|
| 13. |
53A359-0
|
[1] |
RING;BACK UP
|
|
| 14. |
E6490060
|
[1] |
O-RING
|
|
| 15. |
00C310-0
|
[1] |
RING;CUSHION
|
|
| 16. |
53B430-0
|
[1] |
PISTON
|
|
| 17. |
E5130340
|
[1] |
SEAL;SLIPPER
|
|
| 18. |
00W272-0
|
[2] |
RING;WEAR
|
|
| 19. |
00R103-0
|
[2] |
RING;SLYD
|
|
| 2. |
03B606-1
|
[1] |
BUSH;STEEL
|
|
| 20. |
E6311441
|
[1] |
O-RING
|
|
| 21. |
53B441-0
|
[2] |
RING;BACK UP
|
|
| 22. |
53B432-0
|
[1] |
NUT;PISTON
|
|
| 23. |
E1330544
|
[1] |
SCREW;SET
|
|
| 24. |
E0502439
|
[12] |
BOLT;HEX SOCKET
|
|
| 25. |
53U396-0
|
[1] |
PIPE BAND ASS'Y-A
|
|
| 26. |
53U405-0
|
[1] |
PIPE BAND ASS'Y-B
|
|
| 27. |
E0020683
|
[2] |
BOLT;HEX
|
|
| 28. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 29. |
53U394-0
|
[1] |
PIPE ASS'Y-H
|
|
| 3. |
53U391-0
|
[1] |
ROD ASS'Y
|
|
| 30. |
E6300761
|
[1] |
O-RING
|
|
| 31. |
E3110112
|
[4] |
WASHER;SPRING
|
|
| 32. |
E0501546
|
[4] |
BOLT;SOCKET
|
|
| 33. |
53U395-0
|
[1] |
PIPE ASS'Y-R
|
|
| 34. |
E6300761
|
[1] |
O-RING
|
|
| 35. |
E3110112
|
[4] |
WASHER;SPRING
|
|
| 36. |
E0501566
|
[4] |
BOLT;HEX SOCKET
|
|
| 37. |
03A534-0
|
[1] |
U-BOLT
|
|
| 38. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 39. |
E2022033
|
[2] |
NUT;HEX
|
|
| 4. |
03B606-1
|
[1] |
BUSH;STEEL
|
|
| 40. |
00C270-0
|
[1] |
CLAMP;PIPE
|
|
| 41. |
E3110102
|
[2] |
WASHER;SPRING
|
|
| 42. |
E0020733
|
[2] |
BOLT;HEX
|
|
| 43. |
E8841022
|
[2] |
NIPPLE;GREASE
|
|
| 5. |
53U409-0
|
[1] |
ROD COVER
|
|
| 6. |
E8412283
|
[1] |
DU-BUSH
|
|
| 7. |
00M315-0
|
[1] |
RING;RETAINING
|
|
| 8. |
E5500320
|
[1] |
SEAL;BUFFER
|
|
| 9. |
E5303320
|
[1] |
U-PACKING
|
|
