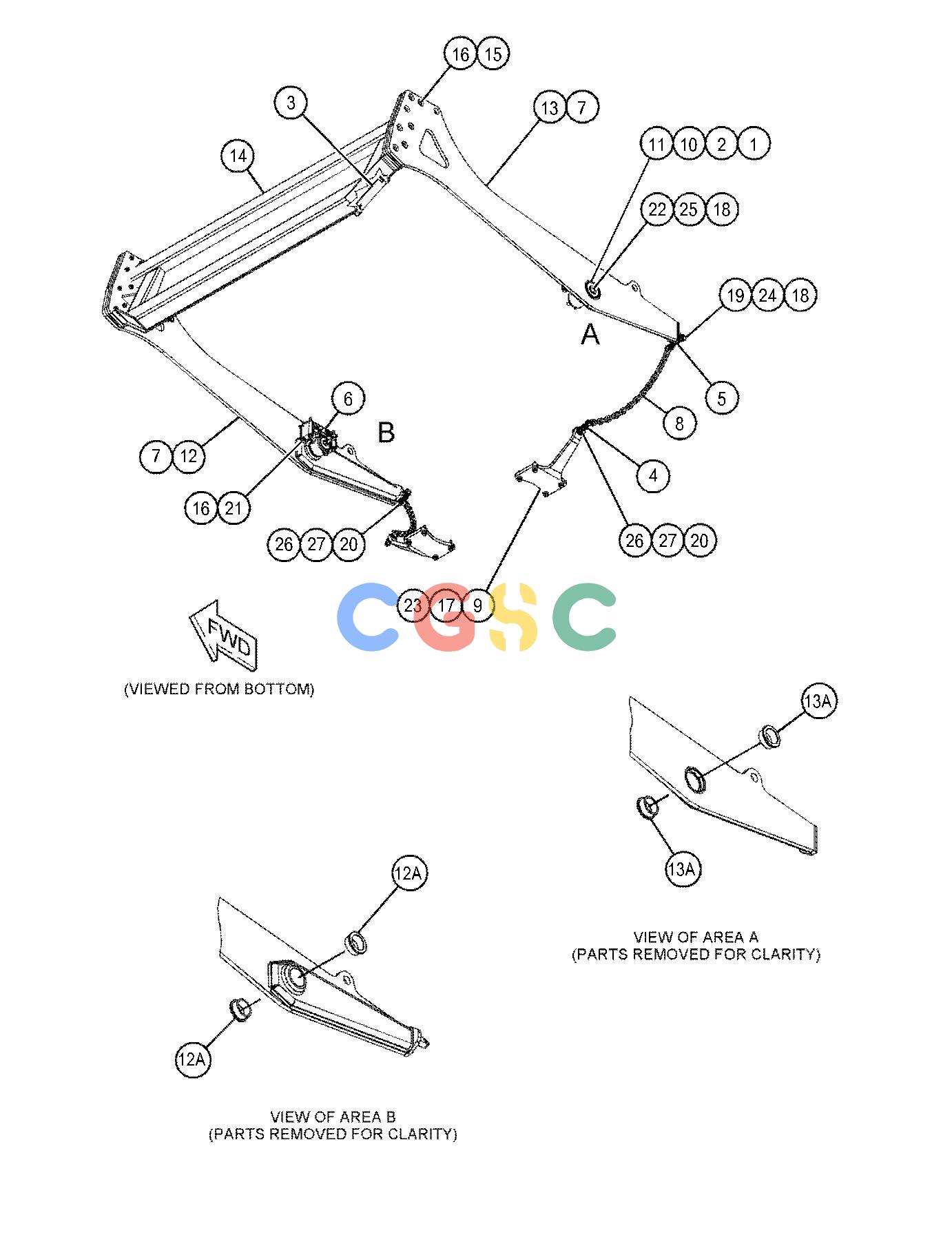

卡特零件查询（730） 489-1756: TAILGATE AR
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 2. | 5U-7151 | [2] | CAP-GREASE | |
| 3. | 169-4040B | [4] | SHIM(2-MM THK) | |
| 4. | 257-7244 | [2] | LINK(LONG) | |
| 5. | 257-7245 | [2] | LINK(SHORT) | |
| 6. | 337-0716B | [4] | SHIM(6-MM THK) | |
| 7. | 489-1783B | [6] | SHIM(3-MM THK) | |
| 8. | 498-9069 | [2] | CHAIN AS | |
| | | | (EACH INCLUDES) |
| | 3U-2838 | [25] | CHAIN | |
| 9. | 517-5043 | [2] | PLATE | |
| 10. | 530-1313 | [2] | PIVOT | |
| 11. | 523-5763 | [2] | PIN | |
| 12. | 538-3267 | [1] | ARM AS(LH) | |
| 12A. | 523-3016 | [2] | BUSHING | |
| | 489-1759 | [1] | PLATE AS | |
| 13. | 538-3269 | [1] | ARM AS(RH) | |
| 13A. | 523-3016 | [2] | BUSHING | |
| | 489-1758 | [1] | PLATE AS | |
| 14. | 538-3270Y | [1] | TAILGATE GP | |
| 15. | 118-7313M | [14] | BOLT(M16X2X70-MM) | |
| 16. | 198-4780 | [22] | WASHER-HARD(17.5X32X8-MM THK) | |
| 17. | 267-8821 | [8] | WASHER(17X36X12-MM THK) | |
| 18. | 6V-7676M | [6] | NUT(M24X3-THD) | |
| 19. | 7X-2489M | [4] | BOLT(M24X3X100-MM) | |
| 20. | 7X-2554M | [4] | BOLT(M16X2X70-MM) | |
| 21. | 7X-2559M | [8] | BOLT(M16X2X160-MM) | |
| 22. | 7X-2579M | [2] | BOLT(M24X3X240-MM) | |
| 23. | 8T-0357M | [8] | BOLT(M16X2X70-MM) | |
| 24. | 8T-1482 | [2] | WASHER-HARD(26X50X8-MM THK) | |
| 25. | 8T-4167 | [12] | WASHER-HARD(26X44X4-MM THK) | |
| 26. | 8T-4778M | [4] | LOCKNUT(M16X2-THD) | |
| 27. | 8T-6385M | [8] | BOLT(M16X2X180-MM) | |
| 28. | 9X-8257 | [8] | WASHER(17.5X30X3.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
