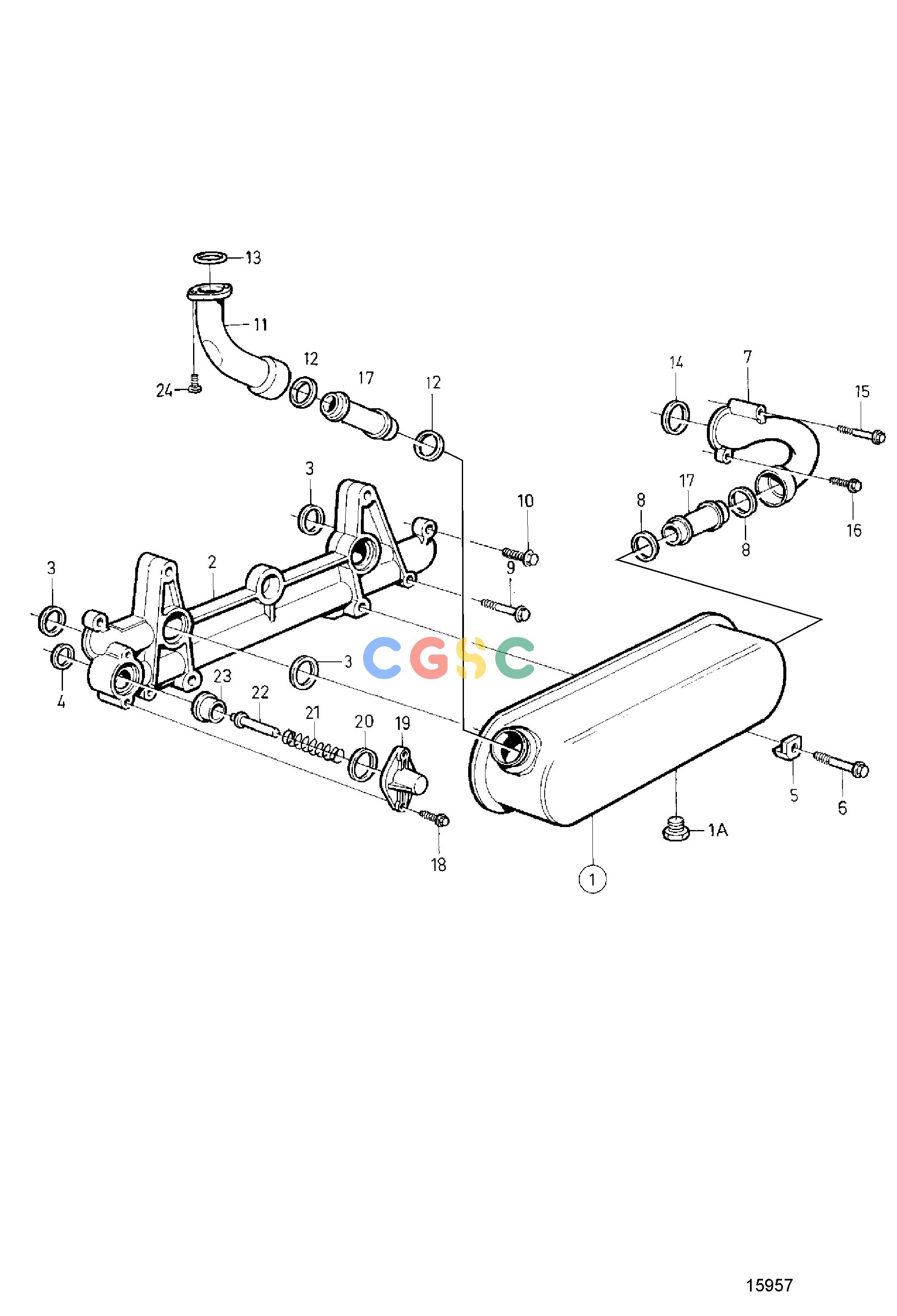

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-ACooling SystemOil Cooler, Engine: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
236 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1A. |
981749
|
[1] |
Plug
|
|
| 2. |
1556594
|
[1] |
Plate
|
|
| 3. |
8192187
|
[4] |
Sealing ring
|
|
| 4. |
8192189
|
[1] |
Sealing ring
|
|
| 5. |
471804
|
[4] |
Retainer
|
|
| 6. |
965189
|
[4] |
Flange screw
|
|
| 7. |
866565
|
[1] |
Pipe connection, cylinder block
|
|
| 8. |
1556905
|
[2] |
Sealing ring
|
|
| 9. |
965216
|
[2] |
Flange screw
|
|
| 10. |
946671
|
[2] |
Flange screw
|
|
| 11. |
866564
|
[1] |
Pipe connection, exhaust manifold
|
|
| 12. |
1556905
|
[2] |
Sealing ring
|
|
| 13. |
925066
|
[1] |
O-ring
|
|
| 14. |
1556949
|
[1] |
Sealing ring
|
|
| 15. |
965217
|
[1] |
Flange screw
|
|
| 16. |
946671
|
[1] |
Flange screw
|
|
| 17. |
471634
|
[2] |
Tube
|
|
| 18. |
946671
|
[2] |
Flange screw
|
|
| 19. |
1543608
|
[1] |
Housing
|
|
| 20. |
1543577
|
[1] |
Sealing ring
|
|
| 21. |
1543615
|
[1] |
Compression spring
|
|
| 22. |
1543610
|
[1] |
Peg
|
|
| 23. |
1543964
|
[1] |
Seat
|
|
| 24. |
946934
|
[2] |
Flange screw
|
|
