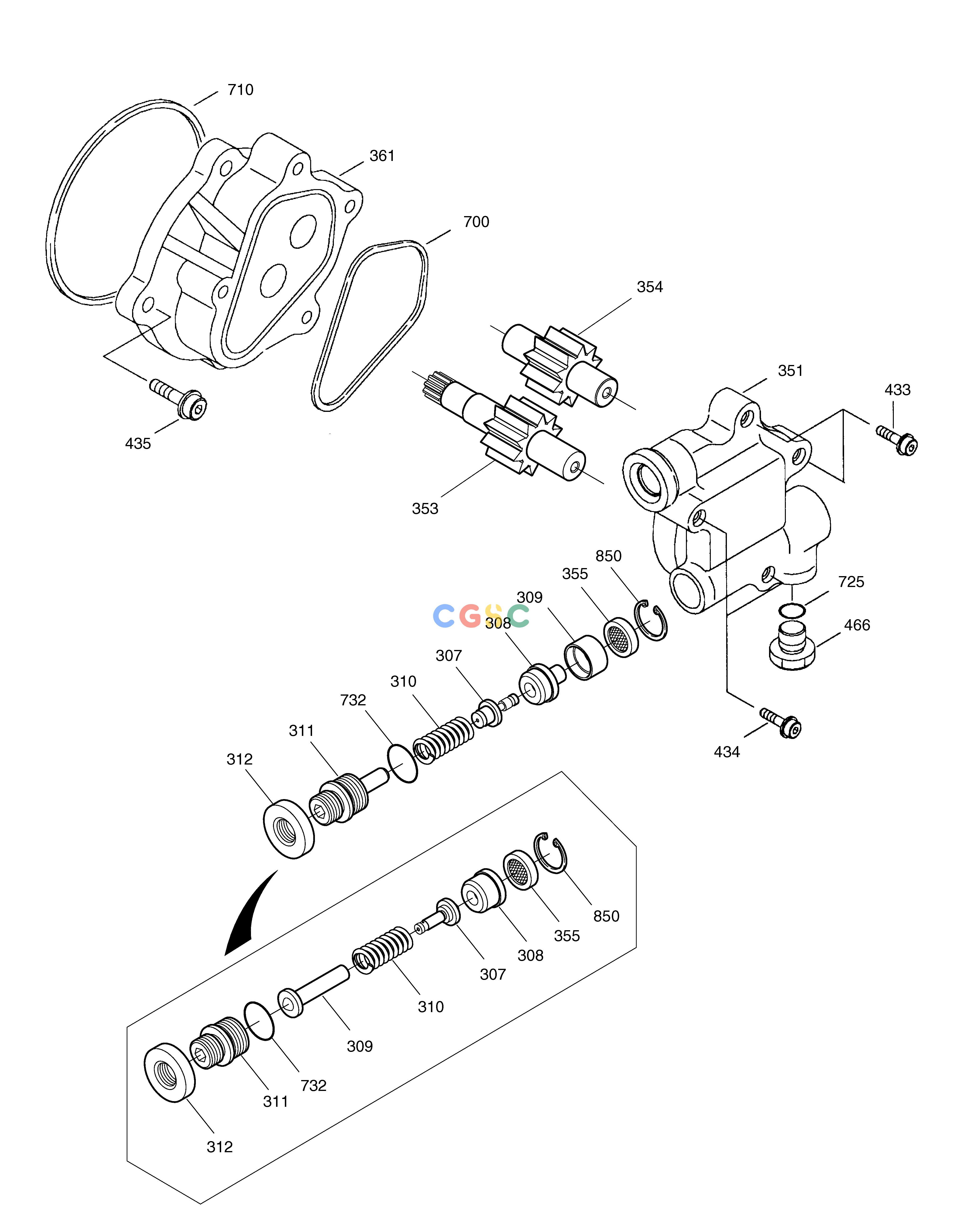

斗山零件查询GEAR PUMP SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
719213KT
|
[1] |
SEAL KIT;GEAR PUMP
|
|
| -. |
716656
|
[1] |
GEAR PUMP
|
719213
|
| -. |
719213
|
[1] |
PUMP;GEAR
|
|
| 307. |
130421
|
[1] |
POPPET
|
|
| 307. |
136300
|
[1] |
POPPET
|
|
| 308. |
130388
|
[1] |
SEAT
|
|
| 308. |
136301
|
[1] |
SEAT
|
|
| 309. |
130389
|
[1] |
SEAT;SPRING
|
|
| 309. |
139302
|
[1] |
RING
|
|
| 310. |
117400
|
[1] |
SPRING
|
|
| 311. |
130390
|
[1] |
SCREW;ADJUSTING
|
|
| 311. |
136299
|
[1] |
SCREW;ADJUSTING
|
|
| 312. |
130391
|
[1] |
NUT;LOCK
|
|
| 351. |
130908A
|
[1] |
CASE;GEAR
|
|
| 351. |
136298
|
[1] |
CASE;GEAR
|
|
| 353. |
131028
|
[1] |
GEAR;DRIVE
|
|
| 354. |
131030
|
[1] |
GEAR;DRIVEN
|
|
| 355. |
129640
|
[1] |
FILTER
|
|
| 361. |
130397
|
[1] |
CASE;FRONT
|
|
| 361. |
130397A
|
[1] |
CASE;FRONT
|
|
| 433. |
130400
|
[2] |
BOLT;SOCKET
|
|
| 434. |
130402
|
[2] |
BOLT;SOCKET
|
|
| 435. |
130404
|
[4] |
BOLT;SOCKET
|
|
| 466. |
108844
|
[1] |
PLUG;VP
|
OVP14
|
| 700. |
129642
|
[1] |
RING
|
|
| 710. |
201675
|
[1] |
O-RING 1BG85
|
|
| 725. |
206598
|
[1] |
O-RING 1BP11
|
|
| 732. |
201706
|
[1] |
O-RING 1BP16
|
OORBP16
|
| 850. |
202596
|
[1] |
RING;SNAP
|
|
