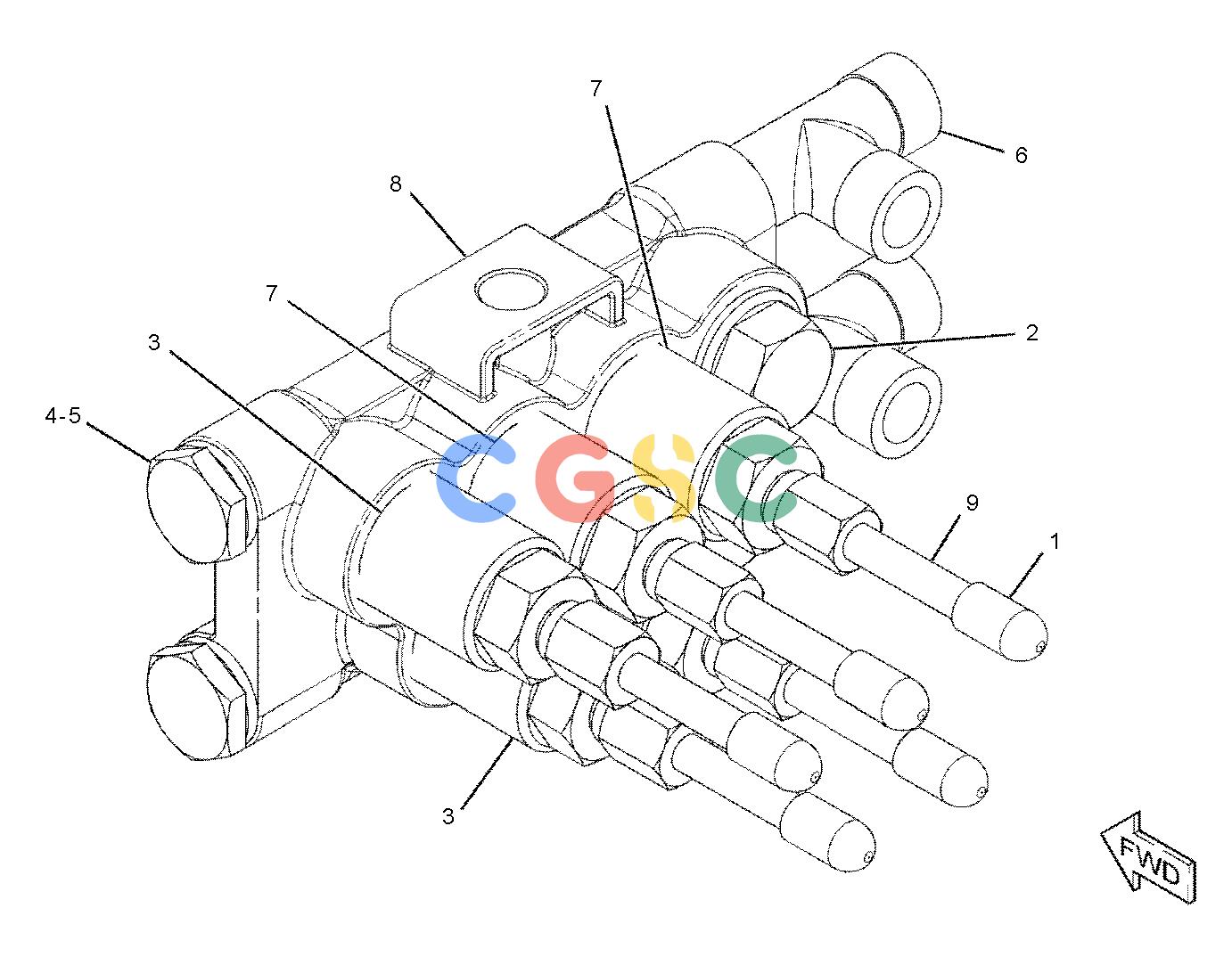

卡特零件查询（730） 220-7502: VALVE GP-LUBE DISTRIBUTION
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-3518 | [2] | INJECTOR AS-GREASE(NO. 8) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 2. | 161-9030E | | HOSE(34.2-CM) | |
| 2A. | 161-9030E | | HOSE(31.3-CM) | |
| 2B. | 161-9030E | | HOSE(32.6-CM) | |
| 2C. | 161-9030E | | HOSE(140.2-CM) | |
| 2D. | 161-9030E | | HOSE(40.2-CM) | |
| 2E. | 161-9030E | | HOSE(36-CM) | |
| 2F. | 161-9030E | | HOSE(190.8-CM) | |
| 3. | 178-2746 | [2] | INJECTOR AS-GREASE(NO. 9) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 4. | 220-8573 | [1] | BLOCK(7-INJECTOR) | |
| 5. | 192-5987 | [2] | GASKET | |
| 6. | 221-1584 | [2] | COUPLING | |
| 7. | 221-1585 | [3] | INJECTOR AS-GREASE(NO. 8.5) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 8. | 179-1660 | [2] | PLUG | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
