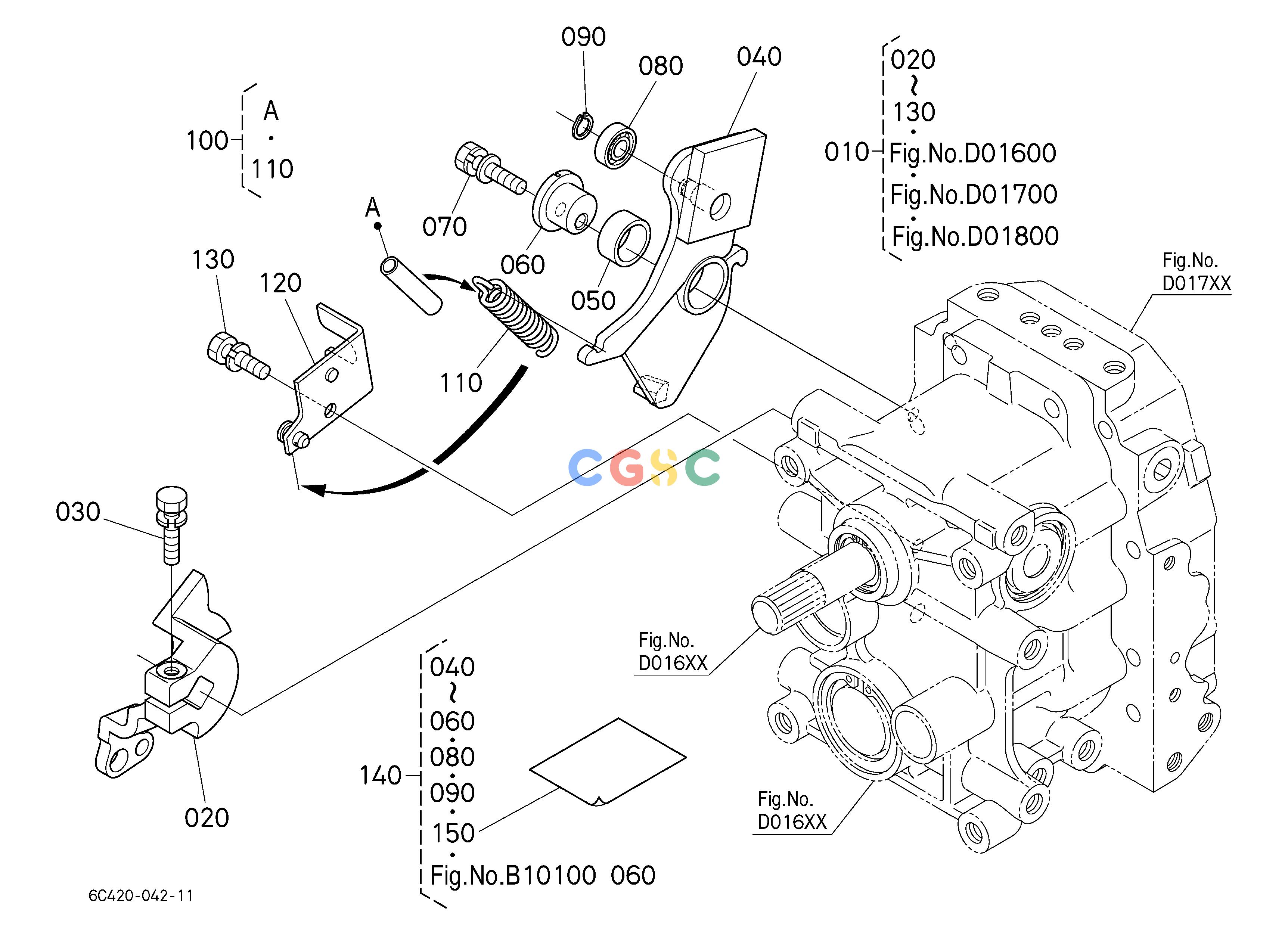

久保田零件查询D01900 HST (NEUTRAL HOLDER) [COMPONENT PARTS] 4 TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
779 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43011602
|
[1] |
HST,ASSY(T-20,D26)
|
59.4000(lbs); 27.000
|
| 010. |
6C43011603
|
[1] |
HST,ASSY(T-20,D26)
|
59.4000(lbs); 27.000
|
| 010. |
6C43011604
|
[1] |
HST,ASSY(T-20,D26)
|
59.4000(lbs); 27.000
|
| 020. |
6C20018110
|
[1] |
HOLDER,NEUTRAL
|
1.2760(lbs); 0.580
|
| 030. |
0112350835
|
[1] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 040. |
6C20018153
|
[1] |
ARM,NEUTRAL
|
0.3520(lbs); 0.160
|
| 040. |
6C20018154
|
[1] |
ARM,NEUTRAL
|
0.3520(lbs); 0.160
|
| 050. |
6620443572
|
[1] |
BUSH
|
0.0044(lbs); 0.002
|
| 060. |
6620443352
|
[1] |
SHAFT,HOLDER
|
0.1584(lbs); 0.072
|
| 060. |
6C20043350
|
[1] |
HOLDER(NEUTRAL ARM)
|
0.0000(lbs); 0.000
|
| 070. |
0112550835
|
[1] |
BOLT,W SEMS
|
0.0374(lbs); 0.017
|
| 080. |
0812106000
|
[1] |
BEARING,BALL
|
0.0440(lbs); 0.020
|
| 090. |
0461200100
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 100. |
6C20018160
|
[1] |
SPRING
|
0.0990(lbs); 0.045
|
| 110. |
6C05043470
|
[1] |
SPRING
|
0.1034(lbs); 0.047
|
| 120. |
6C20018340
|
[1] |
STAY,NEUTRAL SWITCH
|
0.1980(lbs); 0.090
|
| 120. |
6C20018342
|
[1] |
STAY,NEUTRAL SWITCH
|
0.1980(lbs); 0.090
|
| 130. |
0112350820
|
[1] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 140. |
6C20095000
|
[1] |
SWITCH,KIT(HST,SAFETY)
|
0.0000(lbs); 0.000
|
| 150. |
99999-99999
|
[1] |
MANUAL(INSTRACTION)
|
0.0000(lbs); 0.000
|
