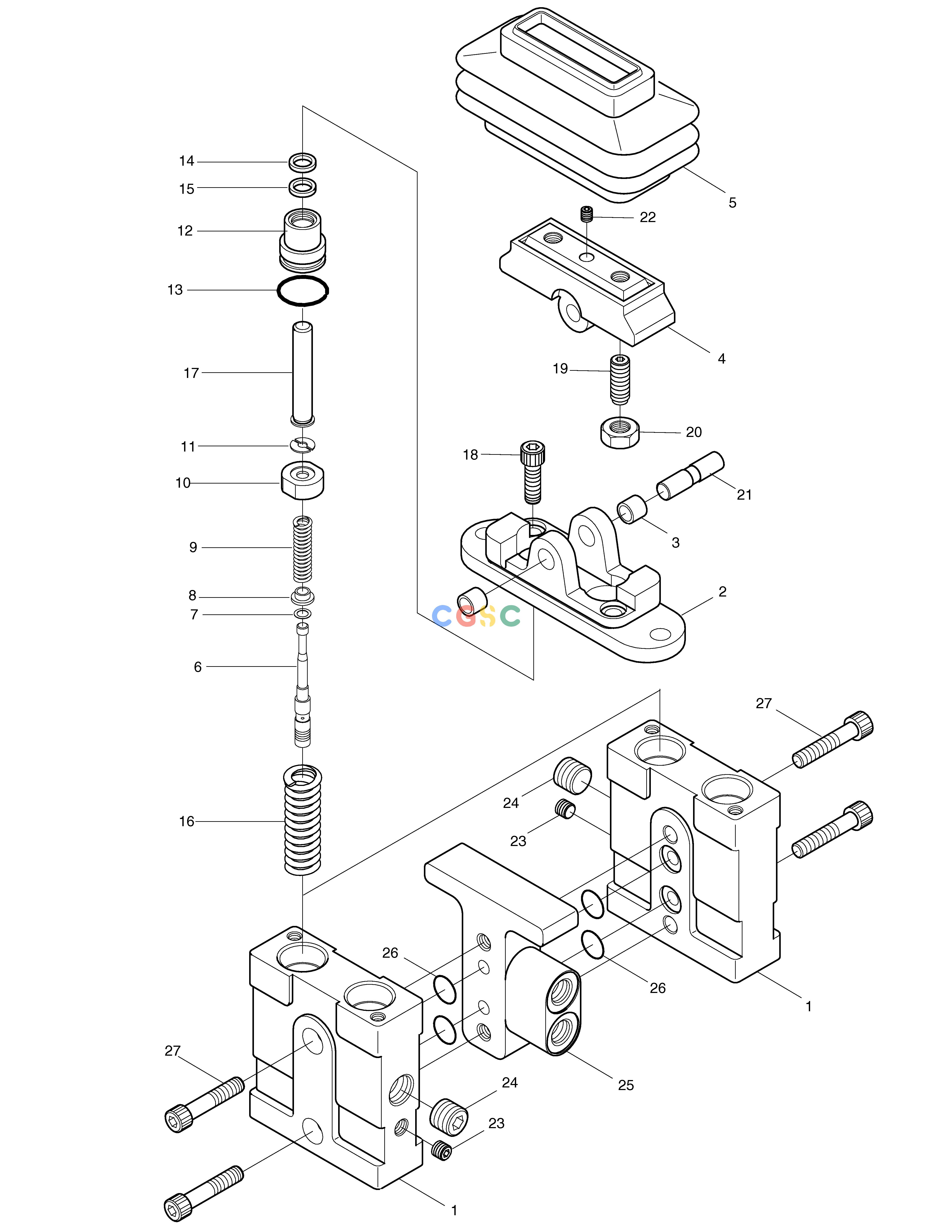

斗山零件查询PEDAL VALVE SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2420-9617A
|
[1] |
VALVE;PEDAL
|
|
| 1. |
J98D3001
|
[2] |
CASING SUB ASS'Y
|
|
| 10. |
J24D2010
|
[4] |
SET;SPRING
|
|
| 11. |
J24D2011
|
[4] |
STOPPER
|
|
| 12. |
J24D2012
|
[4] |
PLUG
|
|
| 13. |
P0020
|
[4] |
O-RING
|
|
| 14. |
DSP10
|
[4] |
SEAL;DUST
|
|
| 15. |
RSY10
|
[4] |
SEAL;ROD
|
|
| 16. |
J98D3003
|
[4] |
SPRING
|
|
| 17. |
J98D3004
|
[4] |
ROD;PUSH
|
|
| 18. |
WBM0830
|
[4] |
BOLT;WRENCH
|
|
| 19. |
J24D2015
|
[4] |
SCREW;SET
|
|
| 2. |
J24D2004
|
[2] |
COVER
|
|
| 20. |
HNM10
|
[4] |
NUT M10
|
|
| 21. |
J24D2016
|
[2] |
SHAFT;CAM
|
|
| 22. |
SBM0812
|
[2] |
SCREW;SET
|
|
| 23. |
WPT18
|
[2] |
PLUG
|
|
| 24. |
WPT38
|
[2] |
PLUG PT3/8
|
|
| 25. |
J98D3005
|
[1] |
SPACER
|
|
| 26. |
P0012
|
[4] |
O-RING
|
|
| 27. |
WBM0845
|
[4] |
BOLT;WRENCH
|
|
| 3. |
DU1010
|
[4] |
BUSHING
|
|
| 4. |
J24D2005
|
[2] |
CAM
|
|
| 5. |
J24D2006
|
[2] |
BELLOWS
|
|
| 6. |
J24D2007
|
[4] |
SPOOL
|
|
| 7. |
S090601
|
[-] |
SHIM
|
|
| 8. |
J24D2008
|
[4] |
SEAT;SPRING
|
|
| 9. |
J98D3002
|
[4] |
SPRING
|
|
