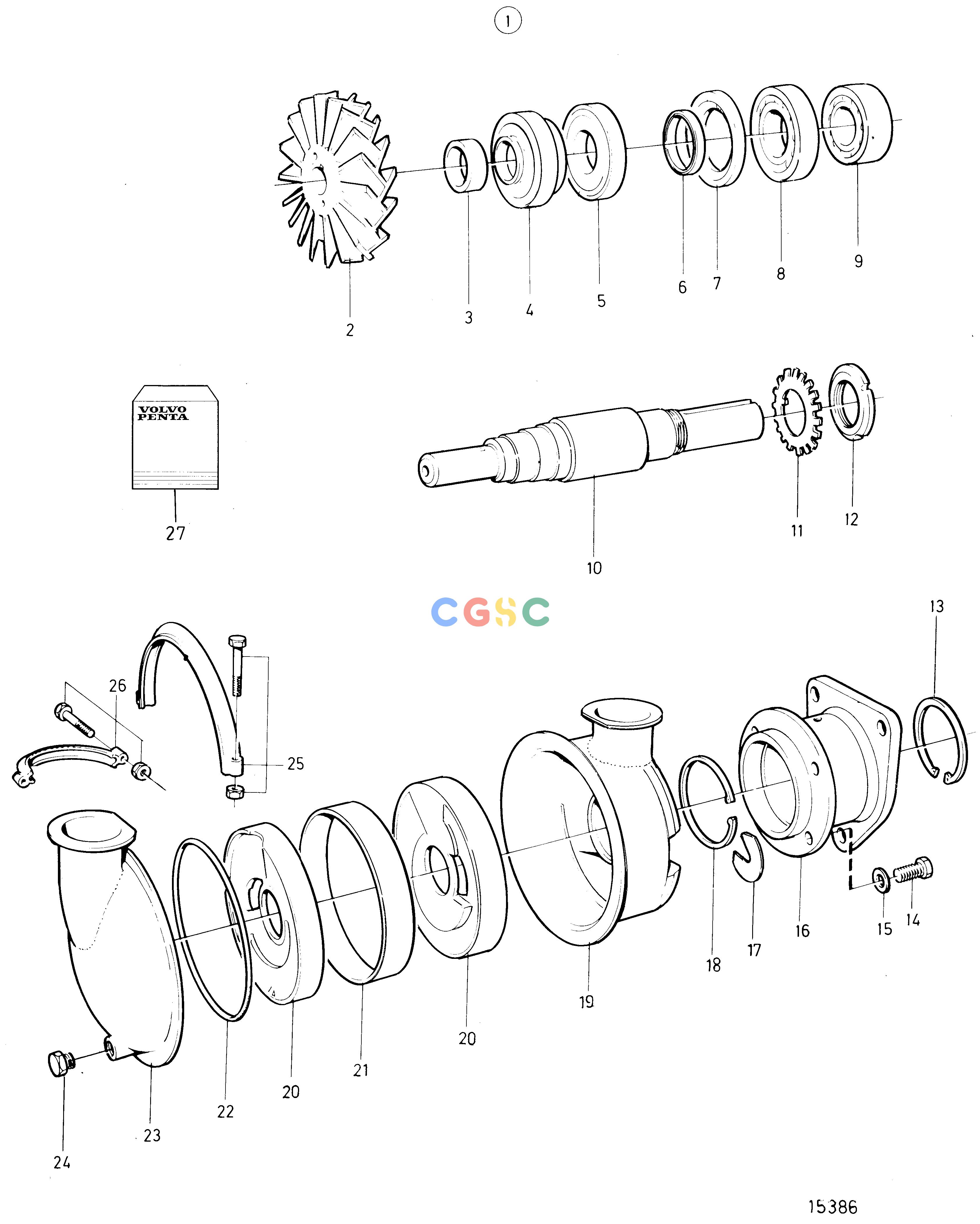

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-ACooling SystemSea Water Pump with Bronze Impeller, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1000 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
865241
|
[1] |
Water pump
|
|
| 2. |
865246
|
[1] |
Impeller
|
|
| 3. |
863901
|
[1] |
Spacer sleeve
|
Included in overhaul kit.
|
| 4. |
863900
|
[1] |
Seal
|
Included in overhaul kit.
|
| 5. |
|
|
|
|
| 6. |
863897
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 7. |
863898
|
[1] |
Sealing ring
|
Included in overhaul kit.
|
| 8. |
183121
|
[1] |
Roller bearing
|
Included in overhaul kit.
|
| 9. |
11025
|
[1] |
Ball bearing
|
Included in overhaul kit.
|
| 10. |
865245
|
[1] |
Shaft
|
|
| 11. |
863894
|
[1] |
Lock washer
|
Included in overhaul kit.
|
| 12. |
863895
|
[1] |
Nut
|
|
| 13. |
863905
|
[1] |
Retaining ring
|
Included in overhaul kit.
|
| 14. |
963567
|
[3] |
Hexagon screw
|
Included in overhaul kit., (864481)
|
| 15. |
864480
|
[3] |
Washer
|
Included in overhaul kit.
|
| 16. |
|
|
|
|
| 17. |
865527
|
[1] |
Shim
|
Included in overhaul kit., TH=0,127mm
|
| 17. |
865528
|
[1] |
Shim
|
Included in overhaul kit., TH=0,25mm
|
| 17. |
865529
|
[1] |
Shim
|
Included in overhaul kit., TH=0,305mm
|
| 17. |
865530
|
[1] |
Shim
|
Included in overhaul kit., TH=0,38mm
|
| 18. |
863896
|
[1] |
Lock ring
|
Included in overhaul kit.
|
| 19. |
865524
|
[1] |
Pump housing
|
|
| 20. |
865525
|
[2] |
Plate
|
|
| 21. |
865526
|
[1] |
Spacer ring
|
|
| 22. |
863888
|
[1] |
O-ring
|
Included in overhaul kit.
|
| 23. |
865523
|
[1] |
Pump housing
|
|
| 24. |
914390
|
[1] |
Plug
|
|
| 25. |
863906
|
[2] |
Clamp
|
|
| 26. |
863907
|
[2] |
Clamp
|
|
| 27. |
876594
|
[1] |
Repair kit
|
|
