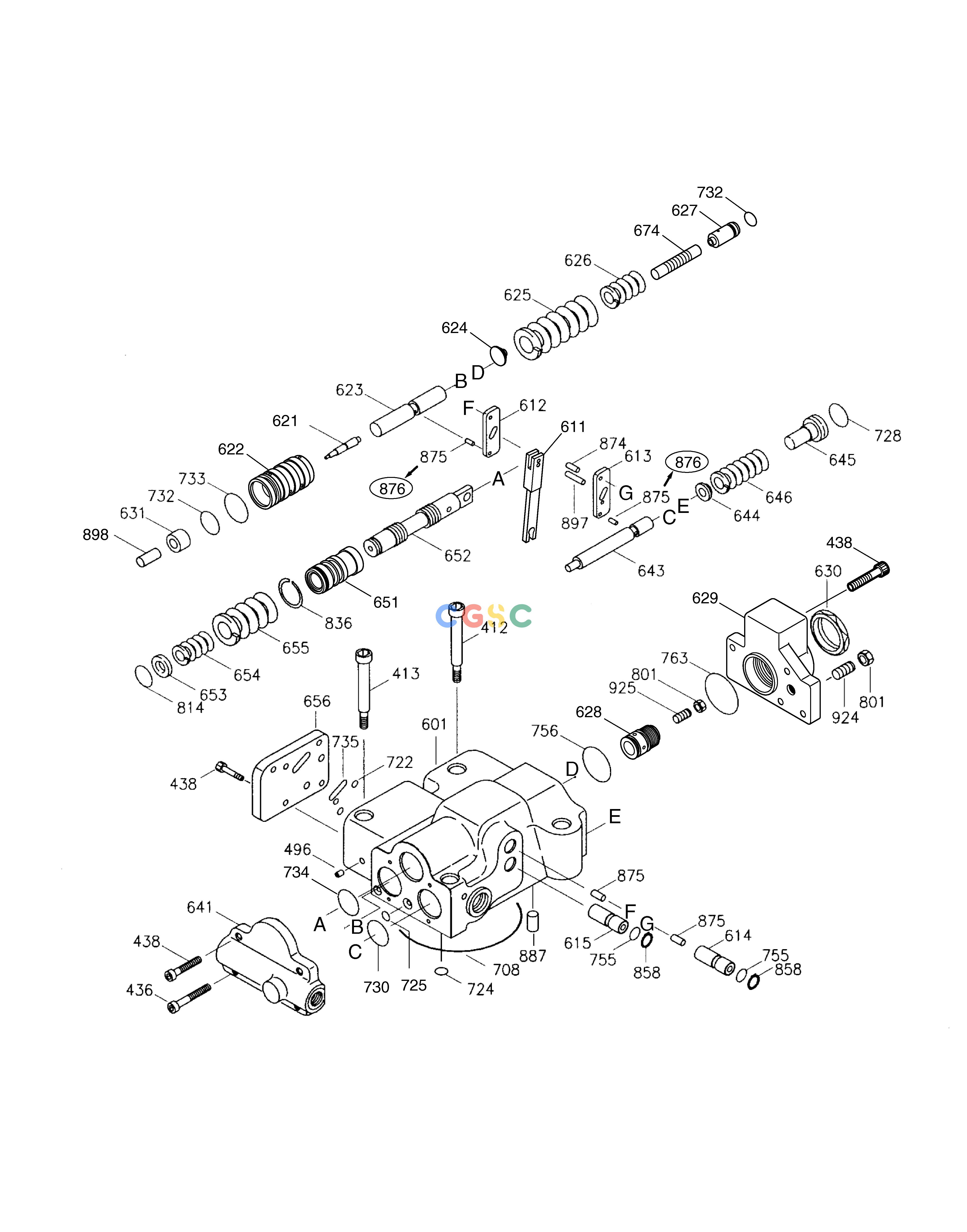

斗山零件查询REGULATOR SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
562 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
717684
|
[2] |
REGULATOR ASS'Y
|
717684A
|
| -. |
717684A
|
[2] |
REGULATOR ASS'Y
|
|
| 412. |
200852
|
[2] |
BOLT;SOCKET M8X50L
|
|
| 413. |
205526
|
[2] |
BOLT;SOCKET M8X70L
|
|
| 436. |
200833
|
[2] |
BOLT;SOCKET M6X30L
|
|
| 438. |
200830
|
[10] |
BOLT;SOCKET M6X20L
|
|
| 496. |
134596
|
[6] |
PLUG
|
|
| 601. |
113407
|
[1] |
CASING
|
|
| 601. |
140783
|
[1] |
CASING
|
|
| 611. |
113712
|
[1] |
LEVER;FEEDBACK
|
|
| 611. |
140781
|
[1] |
LEVER;FEEDBACK
|
|
| 612. |
113409
|
[1] |
LEVER(1)
|
|
| 612. |
140787
|
[1] |
LEVER(1)
|
|
| 613. |
113410
|
[1] |
LEVER(2)
|
|
| 613. |
140788
|
[1] |
LEVER(2)
|
|
| 614. |
113411
|
[1] |
PLUG;SUPPORT
|
|
| 614. |
140795
|
[1] |
PLUG;SUPPORT
|
|
| 615. |
112412
|
[1] |
PLUG;ADJUST
|
|
| 615. |
140796
|
[1] |
PLUG;ADJUST
|
|
| 621. |
113413A
|
[1] |
PISTON;COMPEN
|
|
| 622. |
113414A
|
[1] |
CASE;PISTON
|
|
| 623. |
113415
|
[1] |
ROD;COMPEN
|
|
| 624. |
113416
|
[1] |
SEAT;SPRING(C)
|
|
| 625. |
131656
|
[1] |
SPRING;OUTER
|
|
| 626. |
131658
|
[1] |
SPRING;INNER
|
|
| 627. |
120009
|
[1] |
RING;ADJUST(C)
|
|
| 628. |
120010
|
[1] |
SCREW;ADJUST(C)
|
|
| 629. |
120011A
|
[1] |
COVER(C)
|
|
| 629. |
140785
|
[1] |
COVER(C)
|
|
| 630. |
113396
|
[1] |
NUT;LOCK
|
|
| 631. |
125636
|
[1] |
SLEEVE;PF
|
|
| 641. |
115804
|
[1] |
COVER;PILOT
|
|
| 643. |
113406
|
[1] |
PISTON;PILOT
|
|
| 644. |
113431
|
[1] |
SEAT;SPRING(Q)
|
|
| 645. |
113437
|
[1] |
RING;ADJUST(Q)
|
|
| 646. |
131661
|
[1] |
SPRING;PILOT
|
|
| 651. |
113440
|
[1] |
SLEEVE
|
|
| 652. |
113441
|
[1] |
SPOOL
|
|
| 652. |
140786
|
[1] |
SPOOL
|
|
| 653. |
113442
|
[1] |
SEAT;SPRING
|
|
| 654. |
131664
|
[1] |
SPRING;RETURN
|
|
| 655. |
131665
|
[1] |
SPRING;SET
|
|
| 656. |
113445
|
[1] |
COVER
|
|
| 674. |
120055EX
|
[1] |
PISTON;PF
|
|
| 708. |
201673
|
[1] |
O-RING 1BG75
|
|
| 722. |
201757
|
[3] |
O-RING 1BP6
|
OORBP6
|
| 724. |
201765
|
[9] |
O-RING 1BP8
|
OORBG85
|
| 725. |
201685
|
[1] |
O-RING 1BP10
|
|
| 728. |
201710
|
[1] |
O-RING 1BP18
|
OORB18
|
| 730. |
201718
|
[1] |
O-RING 1BP22
|
|
| 732. |
201706
|
[2] |
O-RING 1BP16
|
OORBP16
|
| 733. |
201713
|
[2] |
O-RING 1BP20
|
OORBP20
|
| 734. |
201654
|
[1] |
O-RING 1BP25
|
|
| 735. |
204458
|
[1] |
O-RING 1BP12.5
|
|
| 755. |
201689
|
[2] |
O-RING 1BP11
|
OORBP11
|
| 756. |
201723
|
[2] |
O-RING 1BP26
|
|
| 763. |
201660
|
[1] |
O-RING 1BG35
|
OORBG35
|
| 801. |
212035
|
[2] |
NUT;HEX.
|
|
| 814. |
204956
|
[1] |
RING;SNAP
|
|
| 836. |
215018
|
[1] |
RING;STOP
|
|
| 858. |
212036
|
[2] |
RING;SNAP
|
|
| 874. |
217841
|
[1] |
PIN
|
|
| 875. |
212005
|
[4] |
PIN
|
|
| 875. |
212005
|
[2] |
PIN
|
|
| 875. |
140793
|
[2] |
PIN
|
|
| 876. |
235051
|
[2] |
PIN
|
|
| 876. |
140792
|
[2] |
PIN
|
|
| 887. |
113394
|
[1] |
PIN
|
|
| 897. |
217842
|
[1] |
PIN
|
|
| 897. |
140794
|
[1] |
PIN
|
|
| 898. |
125637
|
[1] |
PISTON
|
|
| 924. |
202523
|
[1] |
SCREW;SET
|
|
| 925. |
113395
|
[1] |
SCREW;ADJUST(Qi)
|
|
