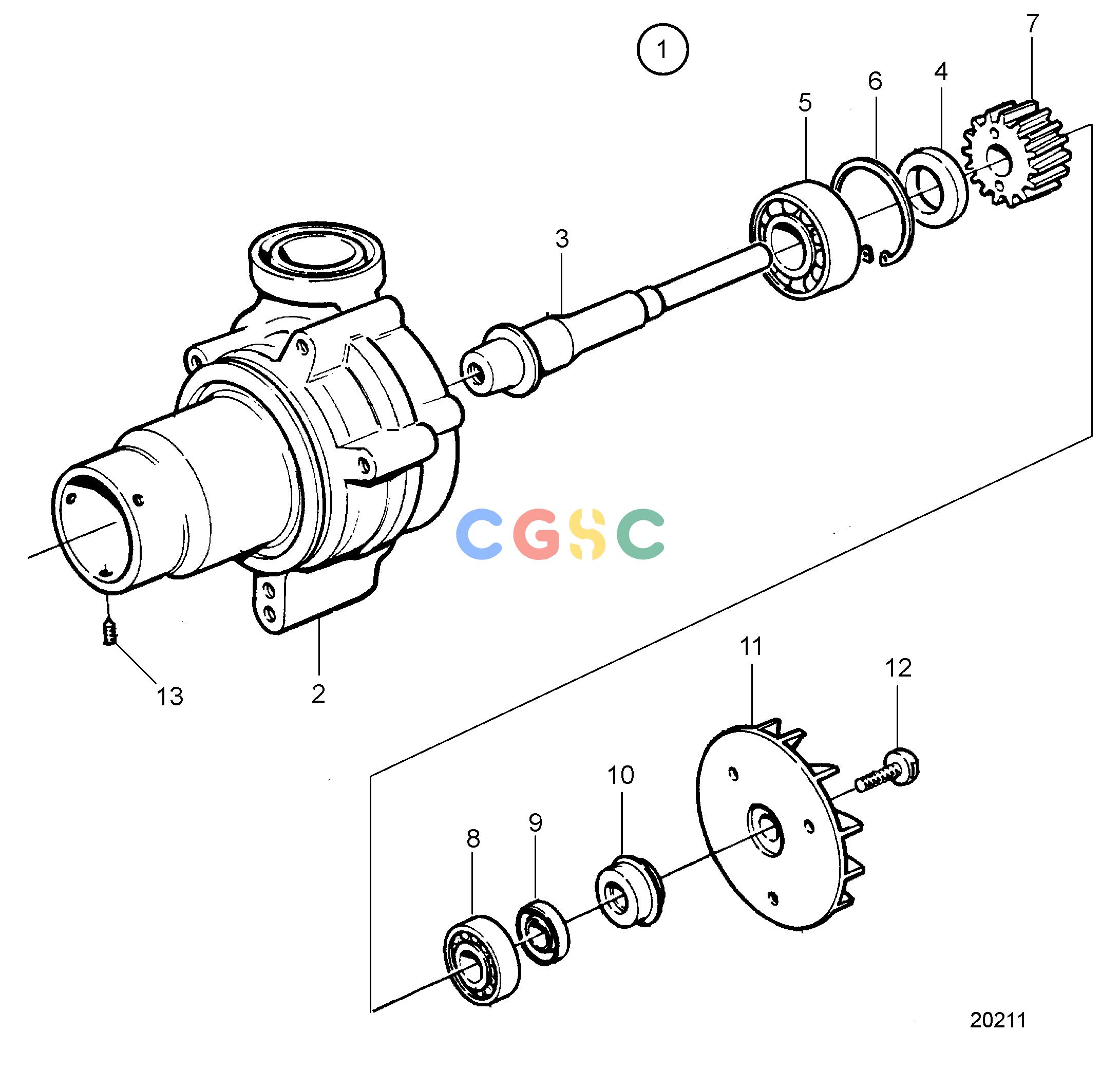

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-ACooling SystemWater Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1556330
|
[1] |
Coolant pump
|
|
| 2. |
|
|
|
|
| 3. |
1675920
|
[1] |
Shaft
|
|
| 4. |
1543906
|
[1] |
Stop ring
|
|
| 5. |
184744
|
[1] |
Ball bearing
|
|
| 5. |
184526
|
[1] |
Ball bearing
|
|
| 6. |
914537
|
[1] |
Snap ring
|
|
| 7. |
1543452
|
[1] |
Gear
|
|
| 8. |
184743
|
[1] |
Roller bearing
|
|
| 9. |
958811
|
[1] |
Sealing ring
|
|
| 10. |
1676432
|
[1] |
Sealing ring
|
|
| 11. |
1556331
|
[1] |
Impeller
|
|
| 12. |
1543188
|
[1] |
Screw
|
|
| 13. |
968784
|
[3] |
Set screw
|
|
