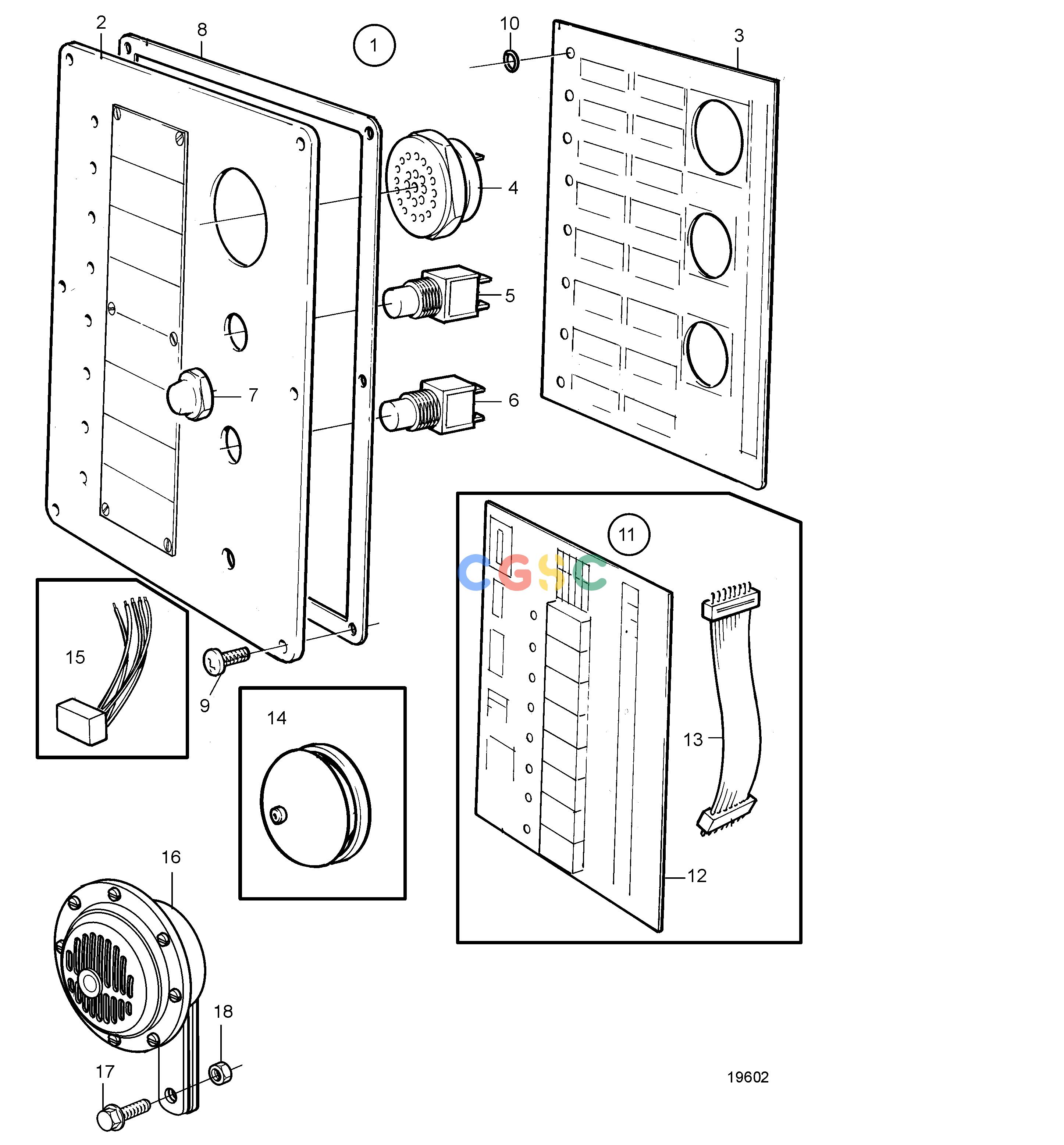

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemAlarm Panel 24V and Relay Card for Parallel Indication. Classifiable: 862935EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
512 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
862935
|
[1] |
Alarm panel
|
Repl by 873785, SN-1101053654/XXXXX
|
| 2. |
862317
|
[1] |
Front plate
|
|
| 3. |
862739
|
[1] |
Circuit board
|
Repl by 873785, SN-1101053654/XXXXX
|
| 4. |
828587
|
[1] |
Buzzer
|
|
| 5. |
862719
|
[1] |
Toggle switch
|
|
| 6. |
828584
|
[1] |
Toggle switch
|
|
| 7. |
828586
|
[2] |
Nut
|
|
| 8. |
862331
|
[1] |
Gasket
|
|
| 9. |
862217
|
[6] |
Cross recessed screw
|
|
| 10. |
955978
|
[9] |
O-ring
|
|
| 11. |
862793
|
[1] |
Circuit board
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
881806
|
[1] |
Bell
|
|
| 15. |
863043
|
[1] |
Interlocking box
|
|
| 16. |
874050
|
[1] |
Horn
|
|
| 17. |
946440
|
[1] |
Flange screw
|
|
| 18. |
948645
|
[1] |
Flange lock nut
|
|
