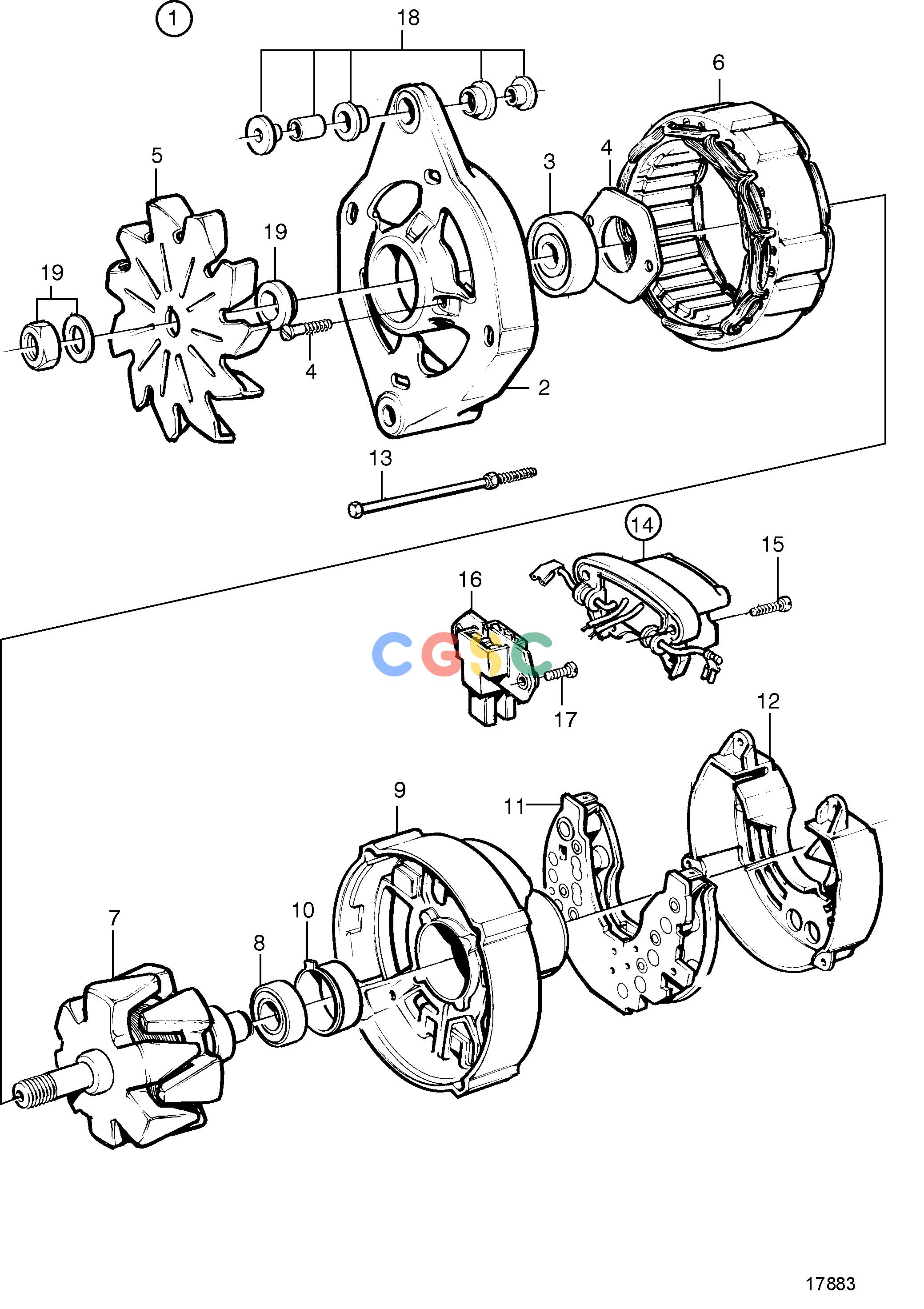

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemAlternator 28V 60A, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
982 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873771
|
[1] |
Alternator
|
28V 60A
|
| 1. |
3803443
|
[1] |
Alternator, exch
|
28V 60A
|
| 2. |
|
|
|
|
| 3. |
847708
|
[1] |
Ball bearing
|
|
| 4. |
|
|
|
|
| 5. |
847707
|
[1] |
Fan
|
|
| 6. |
864346
|
[1] |
Stator
|
|
| 7. |
|
|
|
|
| 8. |
864351
|
[1] |
Ball bearing
|
|
| 9. |
|
|
|
|
| 10. |
840629
|
[1] |
Bearing race
|
|
| 11. |
1698689
|
[1] |
Diode bridge
|
|
| 12. |
847712
|
[1] |
Protecting casing
|
|
| 13. |
847710
|
[1] |
Screw kit
|
|
| 14. |
872368
|
[1] |
Regulator kit, with brush holder
|
|
| 15. |
859312
|
[4] |
Screw
|
|
| 16. |
840632
|
[1] |
Brush retainer
|
|
| 17. |
859312
|
[2] |
Screw
|
|
| 18. |
840634
|
[1] |
Guide
|
|
| 19. |
847706
|
[1] |
Nut set
|
|
