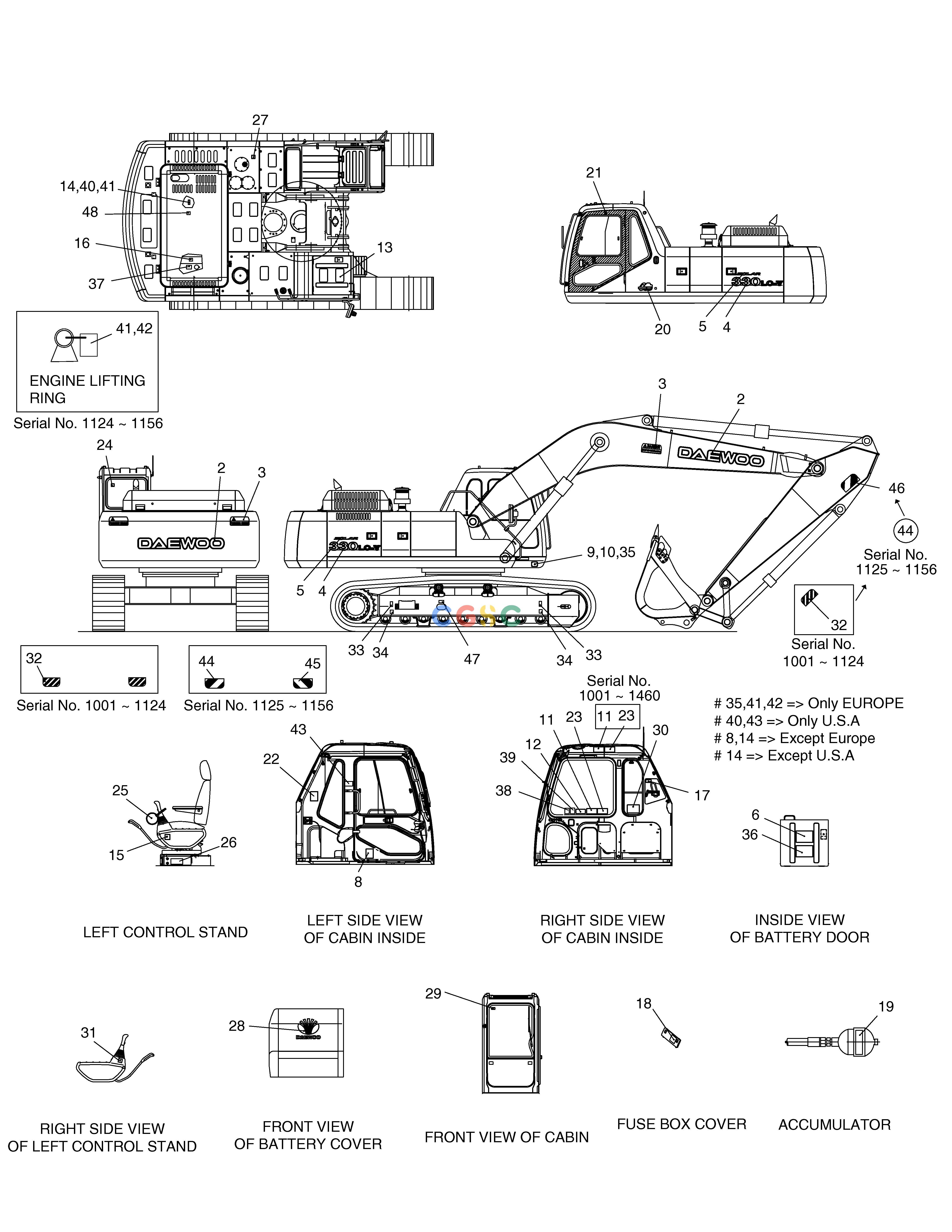

斗山零件查询NAME PLATE-ENGLISH SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
241 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2190-3565
|
[-] |
NAME PLATE ASS'Y
|
|
| 10. |
2122-1002D1
|
[4] |
RIVET
|
2122-1002D2
|
| 10. |
2122-1002D2
|
[4] |
RIVET
|
|
| 11. |
2190-3312
|
[1] |
PLATE;NAME
|
|
| 11. |
190-00688
|
[1] |
PLATE;NAME
|
|
| 12. |
2190-3297
|
[1] |
PLATE;NAME
|
|
| 13. |
2190-2314D3
|
[14] |
TAPE;ANTI-SKID
|
|
| 14. |
2190-3301D5
|
[1] |
PLATE;NAME
|
|
| 15. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 16. |
2190-3315
|
[1] |
PLATE;NAME
|
|
| 16. |
190-00694
|
[1] |
PLATE;NAME
|
|
| 17. |
2190-2480
|
[1] |
PLATE;NAME
|
|
| 18. |
2190-3244D1
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 19. |
2190-2528
|
[1] |
PLATE;NAME(ACCUMULATOR)
|
|
| 19. |
190-00703
|
[1] |
PLATE;NAME
|
|
| 2. |
2190-3385D3
|
[3] |
PLATE;NAME(DAEWOO)
|
|
| 20. |
2190-3239
|
[1] |
PLATE;NAME(WORLD 21)
|
|
| 21. |
2116-9003
|
[1] |
PLATE
|
|
| 22. |
2190-2524
|
[1] |
PLATE;NAME
|
|
| 23. |
2190-2532
|
[1] |
PLATE;NAME
|
|
| 23. |
190-00689
|
[1] |
PLATE;NAME
|
|
| 24. |
2190-3388
|
[1] |
PLATE;NAME
|
|
| 25. |
2190-2549
|
[1] |
PLATE;NAME
|
|
| 25. |
190-00695
|
[1] |
PLATE;NAME
|
|
| 26. |
2190-3386
|
[1] |
PLATE;NAME(TRACK ADJ.)
|
|
| 26. |
2190-3386A
|
[1] |
PLATE;NAME
|
|
| 27. |
2190-3318
|
[1] |
PLATE;NAME
|
|
| 27. |
190-00181
|
[1] |
PLATE;NAME(HOT OIL)
|
|
| 27. |
190-00691
|
[1] |
PLATE;NAME(HOT OIL)
|
|
| 28. |
2190-1892D2
|
[1] |
PLATE;NAME
|
|
| 29. |
2190-3384
|
[1] |
PLATE;NAME
|
|
| 3. |
2190-3379
|
[4] |
PLATE;NAME
|
|
| 3. |
2190-3379
|
[2] |
PLATE;NAME
|
|
| 30. |
2190-1420
|
[1] |
PLATE;NAME
|
|
| 31. |
2190-3383
|
[1] |
PLATE;NAME
|
|
| 32. |
2190-2552A
|
[4] |
PLATE;NAME
|
|
| 33. |
2190-2476
|
[4] |
PLATE;NAME(TIE DOWN)
|
|
| 34. |
2190-2477
|
[4] |
PLATE;NAME(LIFTING)
|
|
| 35. |
2190-2848
|
[1] |
PLATE;NAME(ONLY EUROPE)
|
|
| 36. |
2190-2533
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 36. |
2190-2533A
|
[1] |
PLATE;NAME
|
|
| 37. |
2190-3395
|
[1] |
PLATE;NAME(HOT WATER)
|
|
| 37. |
190-00692
|
[1] |
PLATE;NAME
|
|
| 38. |
2190-3270D30
|
[1] |
PLATE;NAME(SOUND POWER)
|
|
| 39. |
2190-3271D33
|
[1] |
PLATE;NAME(SOUND PRESS.)
|
|
| 4. |
2190-3483
|
[2] |
PLATE;NAME
|
|
| 40. |
2190-3451D8
|
[1] |
PLATE;NAME(E/G EMISSION)
|
|
| 41. |
2190-3558D9
|
[2] |
PLATE;NAME(E/G EMISSION)
|
|
| 42. |
2124-1622D1
|
[1] |
CLIP,BAND
|
|
| 43. |
2190-3600
|
[1] |
PLATE;NAME(ONLY U.S.A)
|
|
| 43. |
2190-3600
|
[1] |
PLATE;NAME(ONLY U.S.A)
|
|
| 44. |
2190-3528
|
[3] |
PLATE;NAME(SWING AREA)
|
|
| 45. |
2190-3530
|
[1] |
PLATE;NAME
|
|
| 46. |
190-00652
|
[2] |
PLATE;NAME
|
|
| 47. |
190-00122
|
[2] |
PLATE;NAME
|
|
| 48. |
190-00798D10
|
[1] |
PLATE;NAME(E/G EMISSION)
|
|
| 5. |
2190-3332
|
[2] |
PLATE;NAME(SOLAR)
|
|
| 6. |
2190-3566
|
[1] |
PLATE;NAME
|
2190-3566A
|
| 6. |
2190-3566A
|
[1] |
PLATE;NAME
|
|
| 6. |
2190-3566B
|
[1] |
PLATE;NAME
|
2190-3566C
|
| 6. |
2190-3566C
|
[1] |
PLATE;NAME
|
|
| 8. |
2190-2556D82
|
[1] |
PLATE;NAME(SPEC.)
|
|
| 9. |
2190-2850
|
[1] |
PLATE;NAME
|
2190-2850A
|
| 9. |
2190-2850A
|
[1] |
PLATE;NAME(SERIAL)
|
|
