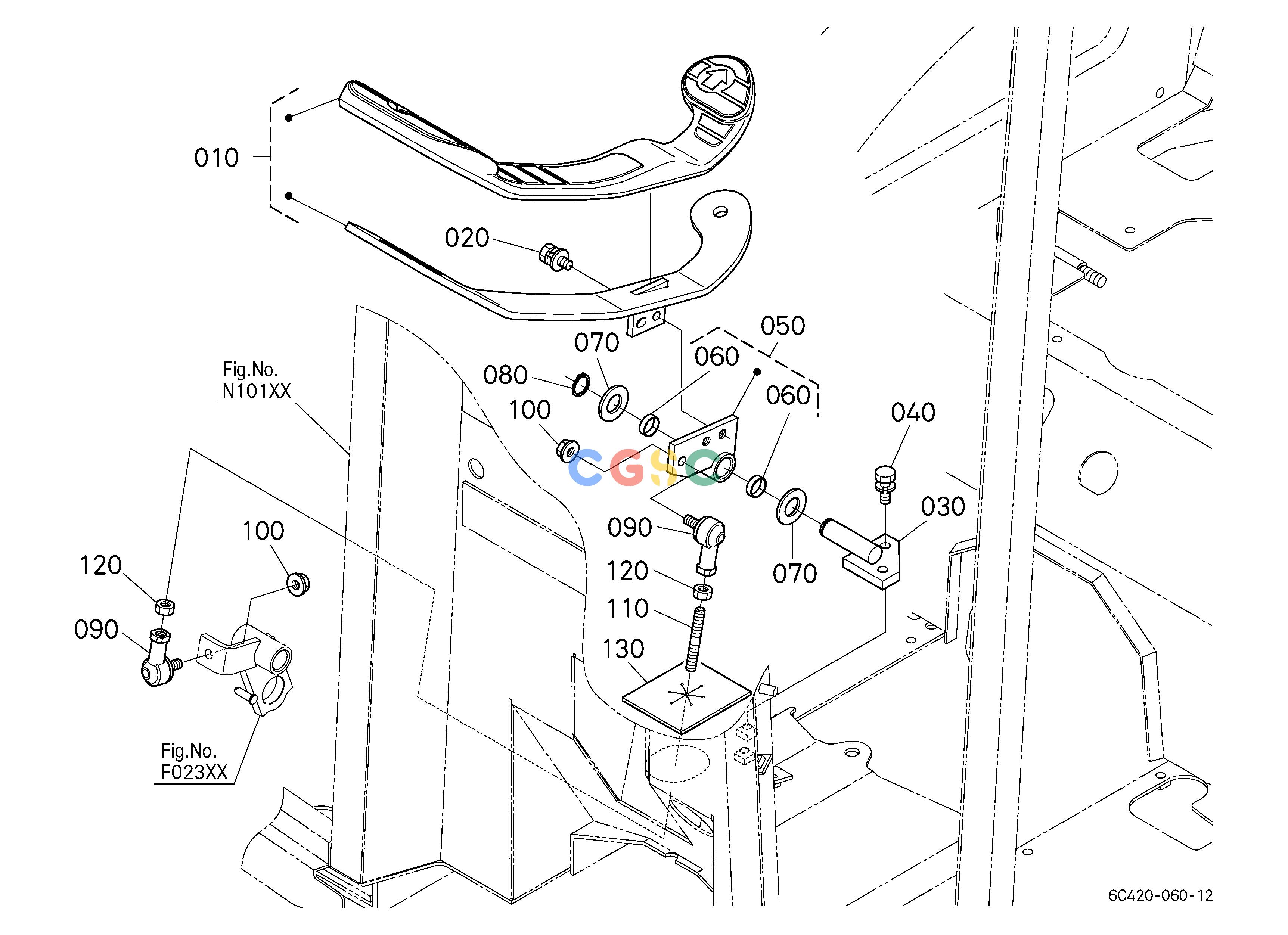

久保田零件查询F02000 SPEED CONTROL PEDAL OPERATIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43018310
|
[1] |
PEDAL(HST)
|
2.5520(lbs); 1.160
|
| 020. |
0112550820
|
[2] |
BOLT,W SEMS
|
0.0308(lbs); 0.014
|
| 020. |
0112550825
|
[2] |
BOLT,W SEMS
|
0.0396(lbs); 0.018
|
| 030. |
6C43018260
|
[1] |
BRACKET(PEDAL,HST)
|
0.4620(lbs); 0.210
|
| 040. |
0112350825
|
[2] |
BOLT,SEMS
|
0.0286(lbs); 0.013
|
| 050. |
6C43018280
|
[1] |
ARM,ASSY(HST)
|
0.4048(lbs); 0.184
|
| 060. |
0851101610
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 070. |
0401350160
|
[2] |
WASHER,PLAIN
|
0.0242(lbs); 0.011
|
| 080. |
0461200160
|
[1] |
CIR-CLIP, EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
6C43018390
|
[2] |
JOINT,BALL(M8)
|
0.1122(lbs); 0.051
|
| 100. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 110. |
TD17055150
|
[1] |
ROD,HST PEDAL
|
0.0396(lbs); 0.018
|
| 120. |
0211450080
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 130. |
6C43071882
|
[1] |
BOOTS(HST PEDAL)
|
0.0352(lbs); 0.016
|
