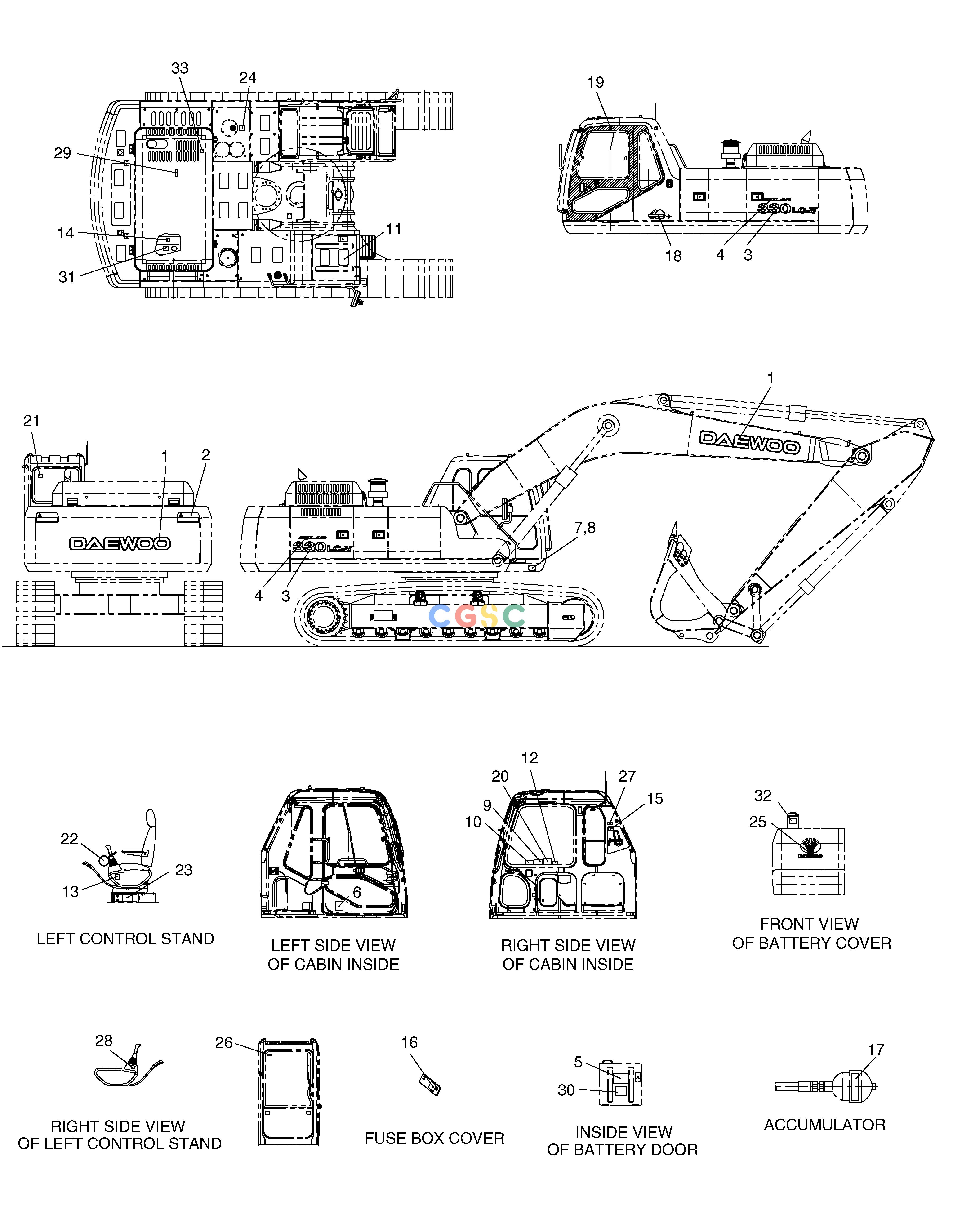

斗山零件查询NAME PLATE-JAPAN SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-00610
|
[-] |
NAME PLATE ASS'Y-JAPAN
|
|
| 1. |
2190-3385D3
|
[3] |
PLATE;NAME(DAEWOO)
|
|
| 10. |
190-00467
|
[1] |
PLATE;NAME
|
|
| 11. |
2190-2314D3
|
[14] |
TAPE;ANTI-SKID
|
|
| 12. |
2190-3570
|
[1] |
PLATE;NAME
|
|
| 13. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 14. |
6190-1024
|
[1] |
PLATE;NAME
|
|
| 15. |
2190-2839
|
[1] |
PLATE;NAME(HAMMER)
|
|
| 16. |
2190-3244D1
|
[1] |
PLATE;NAME(FUSE BOX)
|
|
| 17. |
2190-2755
|
[1] |
PLATE;NAME(ACCUMULATOR)
|
|
| 18. |
2190-3239
|
[1] |
PLATE;NAME(WORLD 21)
|
|
| 19. |
2116-9003
|
[1] |
PLATE
|
|
| 2. |
2190-3538
|
[2] |
PLATE;NAME
|
|
| 20. |
2190-2760A
|
[1] |
PLATE;NAME
|
|
| 21. |
2190-2753A
|
[1] |
PLATE;NAME
|
|
| 22. |
2190-2762A
|
[1] |
PLATE;NAME
|
|
| 23. |
2190-2754A
|
[1] |
PLATE;NAME
|
|
| 24. |
2190-2756A
|
[1] |
PLATE;NAME
|
|
| 25. |
2190-1892D2
|
[1] |
PLATE;NAME
|
|
| 26. |
2190-3544
|
[1] |
PLATE;NAME
|
|
| 27. |
2190-3567
|
[1] |
PLATE;NAME
|
|
| 28. |
2190-3545
|
[1] |
PLATE;NAME
|
|
| 29. |
190-00611
|
[1] |
PLATE;NAME(E/G MISSION)
|
|
| 3. |
2190-3483
|
[2] |
PLATE;NAME
|
|
| 30. |
2190-2761A
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 31. |
2190-2968A
|
[1] |
PLATE;NAME(HOT WATER)
|
|
| 32. |
2190-2967A
|
[1] |
PLATE;NAME(FUEL)
|
|
| 33. |
2190-3050
|
[1] |
PLATE;NAME
|
|
| 4. |
2190-3332
|
[2] |
PLATE;NAME(SOLAR)
|
|
| 5. |
190-00528
|
[1] |
PLATE;NAME
|
|
| 6. |
190-00609
|
[1] |
PLATE;NAME(SPAC.)
|
|
| 7. |
2190-2849B
|
[1] |
PLATE;NAME(SERIAL)
|
|
| 8. |
2122-1002D2
|
[4] |
RIVET
|
|
| 9. |
2190-3541
|
[1] |
PLATE;NAME
|
|
