斗山零件查询SPARE PARTS SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
187 次

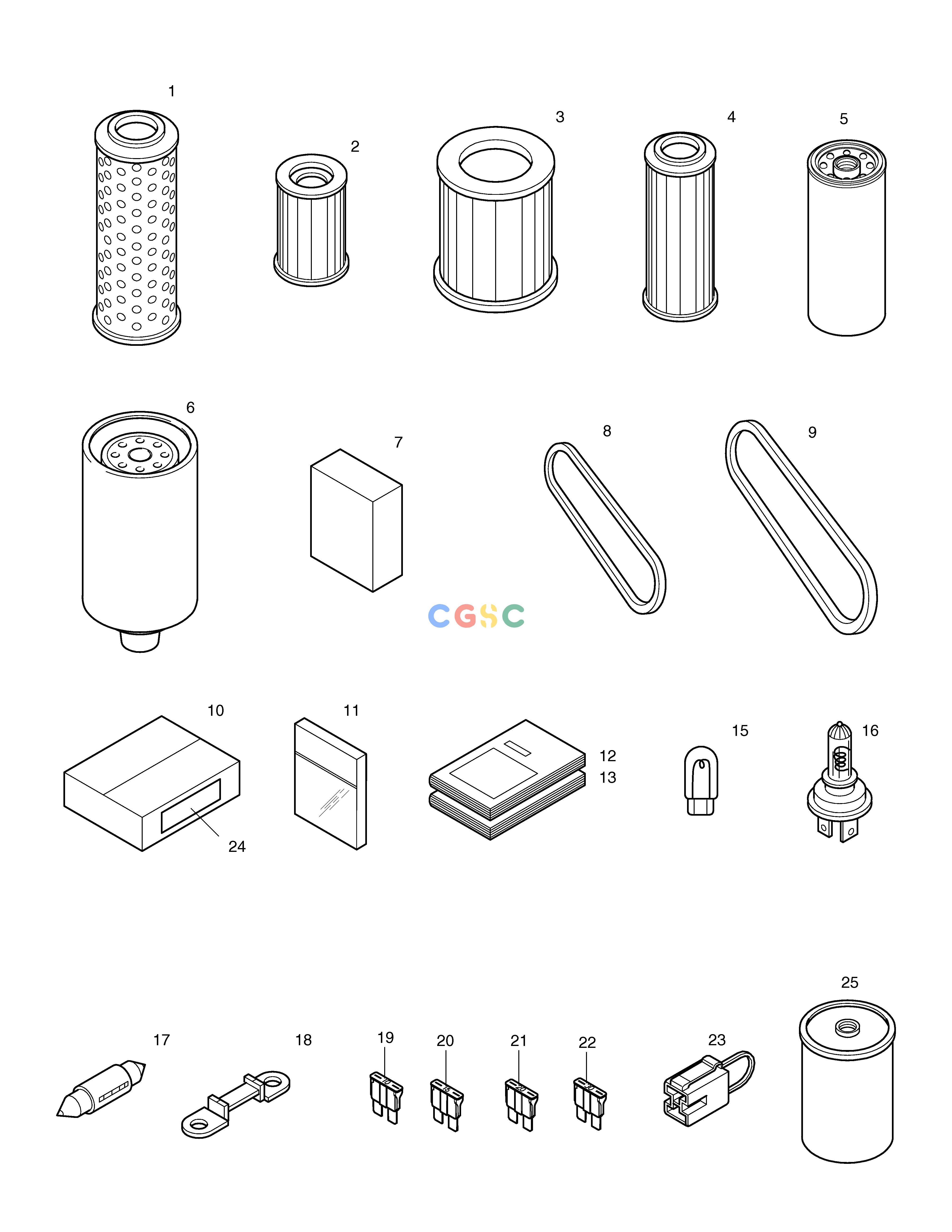

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2918-7278
|
[-] |
SPARE PARTS
|
|
| 1. |
2471-9051
|
[2] |
ELEMENT;FILTER
|
2471-9051A
|
| 1. |
2471-9051A
|
[2] |
ELEMENT;FILTER
|
2471-9051B
|
| 1. |
2471-9051B
|
[2] |
ELEMENT;FILTER
|
|
| 10. |
2512-1095D1
|
[1] |
BOX;SPARE PARTS
|
|
| 11. |
2180-9153
|
[1] |
O-RING KIT
|
|
| 12. |
2021-7149JEF
|
[1] |
|
|
| 13. |
2022-7166E
|
[1] |
OPERATION MANUAL
|
|
| 15. |
S862203H
|
[2] |
BULB 24V 3W
|
|
| 16. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 17. |
2515-1021D1
|
[1] |
. BULB
|
|
| 18. |
2527-6001
|
[2] |
FUSE;LINK
|
|
| 19. |
2527-1016
|
[2] |
FUSE,BLADE 10A
|
|
| 2. |
2474-9041
|
[1] |
ELEMENT
|
2471-1154
|
| 2. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 20. |
2527-1017
|
[2] |
FUSE,BLADE 15A
|
|
| 21. |
2527-1018
|
[1] |
FUSE,BLADE 20A
|
|
| 22. |
2527-1025
|
[1] |
FUSE,BLADE 30A
|
|
| 23. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 24. |
2190-3464
|
[1] |
PLATE;NAME
|
|
| 25. |
474-00022
|
[1] |
CARTRIDGE;BY-PASS
|
65.05501-5002A
|
| 3. |
2474-9051
|
[1] |
ELEMENT;OUTER
|
|
| 4. |
2474-9057
|
[1] |
ELEMENT;INNER
|
|
| 5. |
2474-9052A
|
[1] |
ELEMENT;ENGINE OIL
|
65.05510-5020
|
| 6. |
2474-9058
|
[1] |
ELEMENT;E/G FUEL FILTER
|
65.12503-5011B
|
| 6. |
2474-9060A
|
[1] |
ELEMENT;E/G FUEL FILTER
|
|
| 7. |
2910-9001
|
[6] |
OIL;ENGINE
|
|
| 8. |
2106-1019D12
|
[1] |
VELT;ALTERNATOR
|
|
| 8. |
2106-1019D13
|
[1] |
V-BELT;FAN(1720L)
|
|
| 8. |
2106-1019D17
|
[1] |
V-BELT;FAN(1690L)
|
|
| 9. |
2106-1019D2
|
[1] |
V-BELT
|
|
