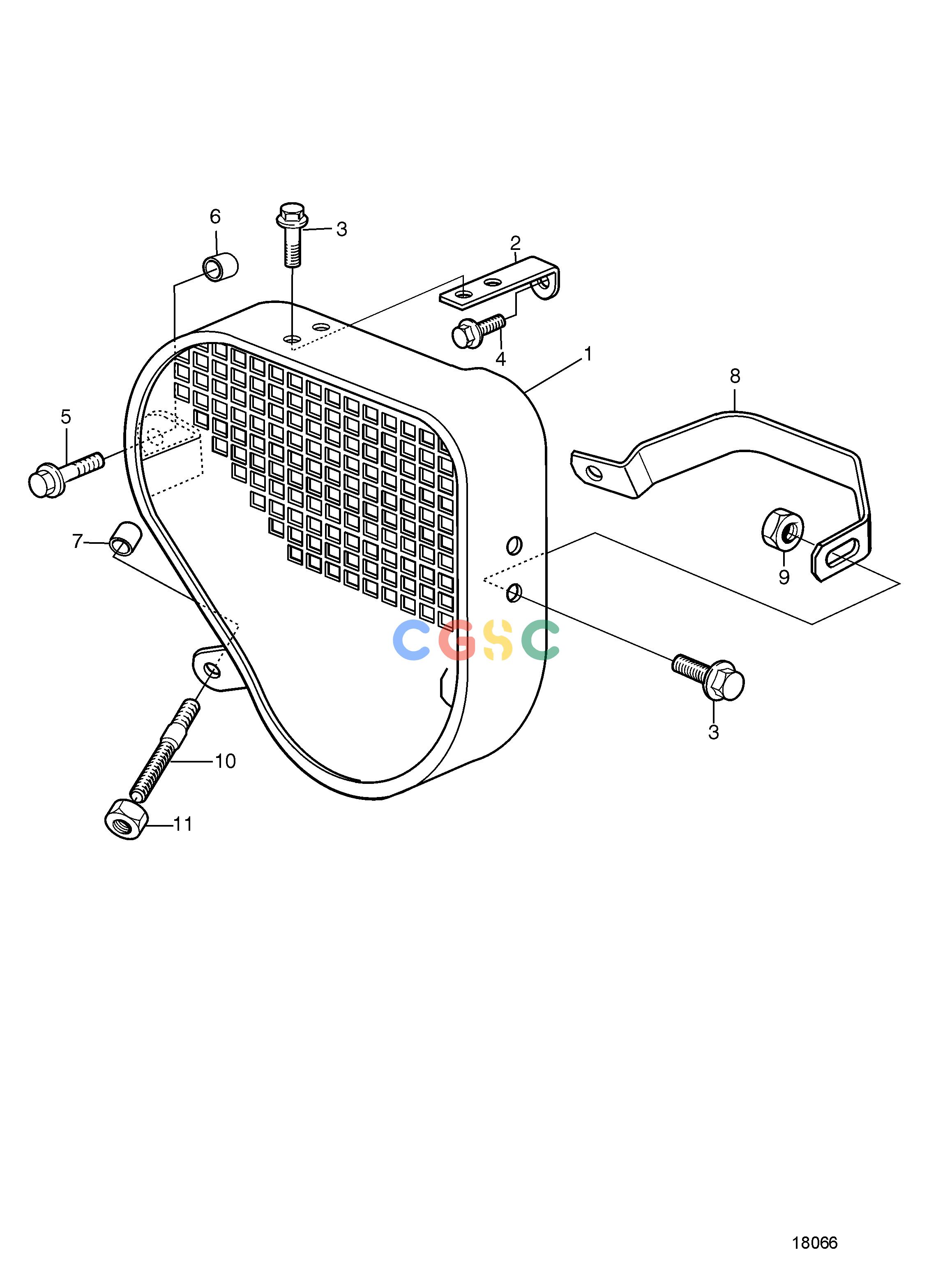

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemBelt Guard for Extra AlternatorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3826171
|
[1] |
Protecting casing
|
|
| 2. |
866805
|
[1] |
Bracket
|
|
| 3. |
947107
|
[2] |
Flange screw
|
|
| 4. |
946441
|
[1] |
Flange screw
|
|
| 5. |
965226
|
[1] |
Flange screw
|
|
| 6. |
830672
|
[1] |
Spacer sleeve
|
Should not be used when clutch casing for power take off is mounted.
|
| 7. |
1678297
|
[1] |
Spacer sleeve
|
Should not be used when clutch casing for power take off is mounted.
|
| 8. |
|
|
|
|
| 9. |
945408
|
[1] |
Flange nut
|
|
| 10. |
968684
|
[1] |
Stud
|
|
| 11. |
971073
|
[1] |
Hexagon nut
|
|
