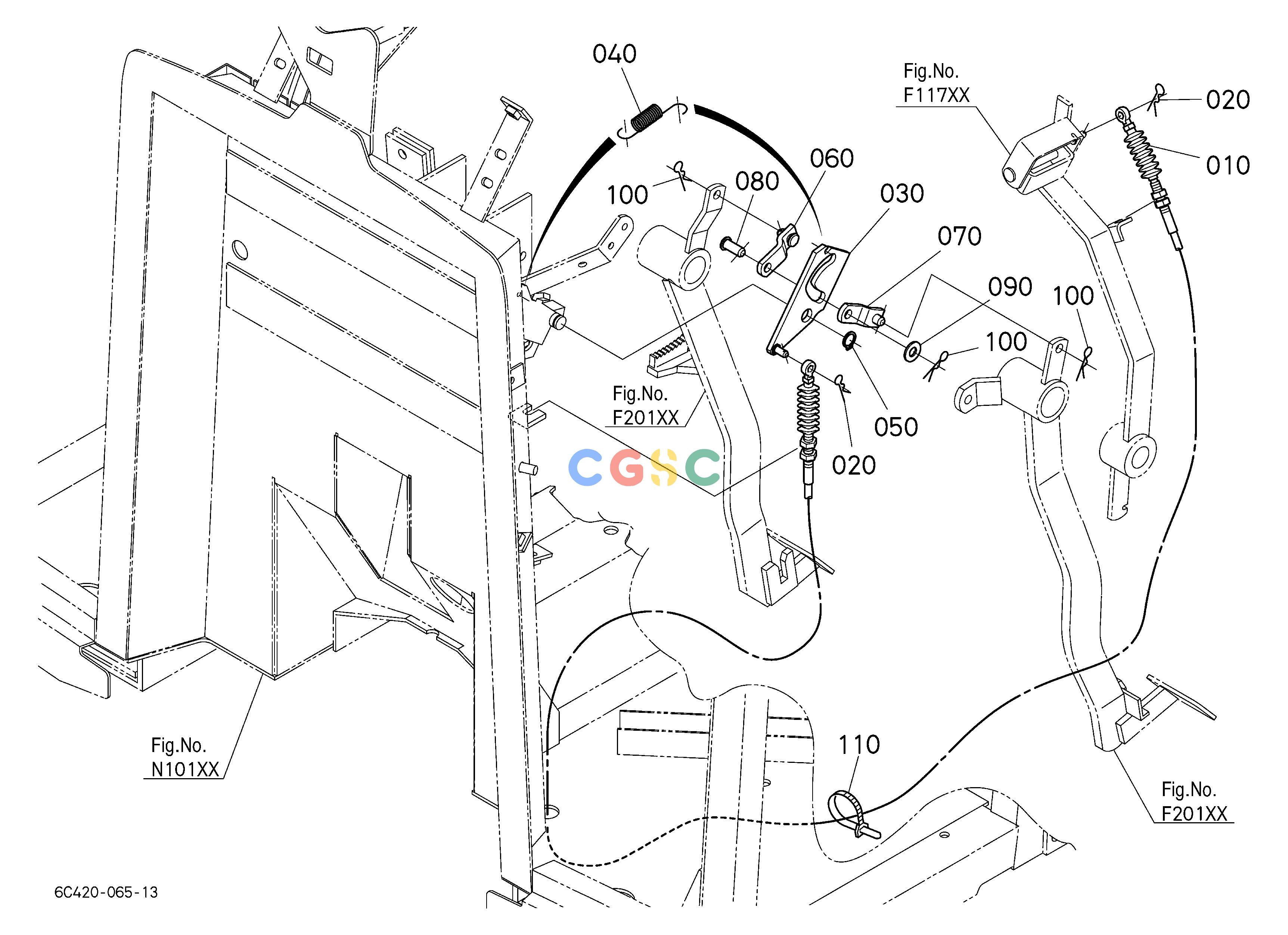

久保田零件查询F11800 CRUISE RELEASE CABLE OPERATIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
656 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43019652
|
[1] |
CABLE(CRUISE)
|
0.5544(lbs); 0.252
|
| 010. |
6C43019653
|
[1] |
CABLE(CRUISE)
|
0.5544(lbs); 0.252
|
| 020. |
0552550600
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 030. |
6C43043342
|
[1] |
PLATE(BRAKE LINK)
|
0.2134(lbs); 0.097
|
| 040. |
K750154220
|
[1] |
SPRING(LOCK)
|
0.0110(lbs); 0.005
|
| 050. |
0461200120
|
[1] |
CIR-CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
6C43043350
|
[1] |
LINK(BRAKE,2)
|
0.0682(lbs); 0.031
|
| 070. |
6C43043360
|
[1] |
LINK(BRAKE,1)
|
0.0616(lbs); 0.028
|
| 080. |
0512250820
|
[1] |
PIN,JOINT
|
0.0198(lbs); 0.009
|
| 090. |
0401350080
|
[1] |
WASHER,PLAIN
|
0.0066(lbs); 0.003
|
| 100. |
0552550800
|
[3] |
SNAP PIN
|
0.0022(lbs); 0.001
|
| 110. |
5358164150
|
[1] |
BAND,CORD
|
0.0044(lbs); 0.002
|
