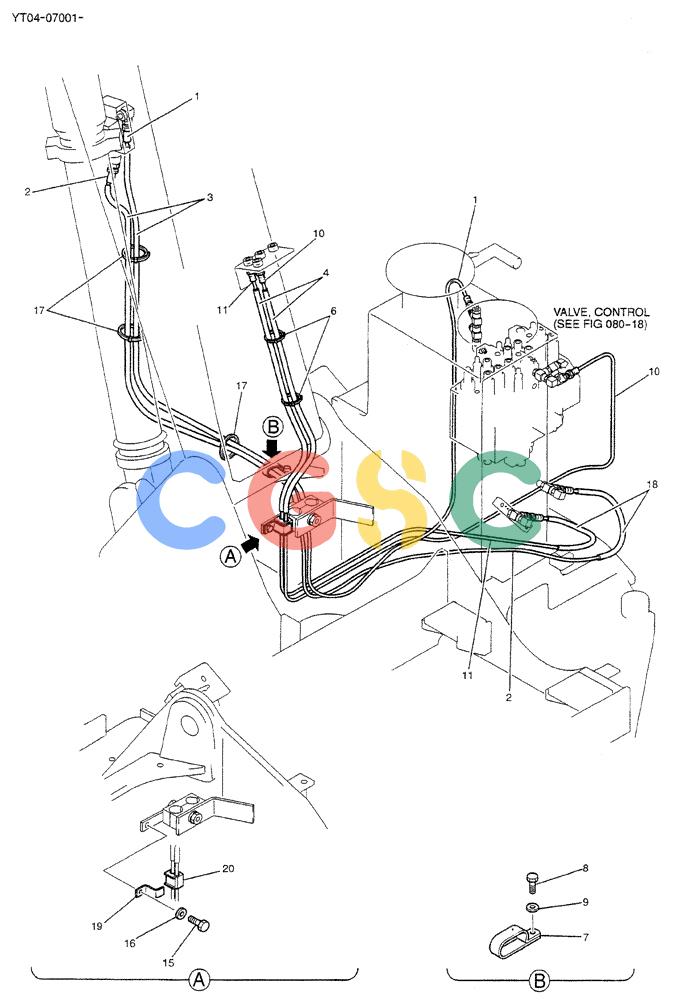

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (01-036) - CONTROL LINES, REMOTE (BOOM & ARM SAFETY) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
409 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT64H00043F3 | [1] | CONTROL LINES, VALVE | |
| 1. | ZX23M06330 | [1] | HOSE | KOB |
| 2. | ZX22M06310 | [1] | HOSE | KOB |
| 3. | 2418Z1333D35 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1800mm Length | KOBProtective Plastic |
| 4. | 2418Z1333D3 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 750mm Length | KOBProtective Plastic |
| 6. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 7. | ZC48X24014 | [1] | CLIP | KOBClamp, Double -- Ø24x85mm Long |
| 8. | ZS18C12020 | [1] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 9. | ZW16H12000 | [1] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 10. | ZX23M06250 | [1] | HOSE | KOB2500mm Long (98-7/16 in) |
| 11. | ZX22M06240 | [1] | HOSE ASSY. | KOB |
| 15. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 16. | ZW16H10000 | [1] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 17. | PY01P01043D8 | [3] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 18. | 2418Z1333D4 | [2] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 500mm Length | KOB |
| 19. | YT64H01065P1 | [1] | BRACKET | |
| 20. | YT64H01066P1 | [1] | BUSHING | |
