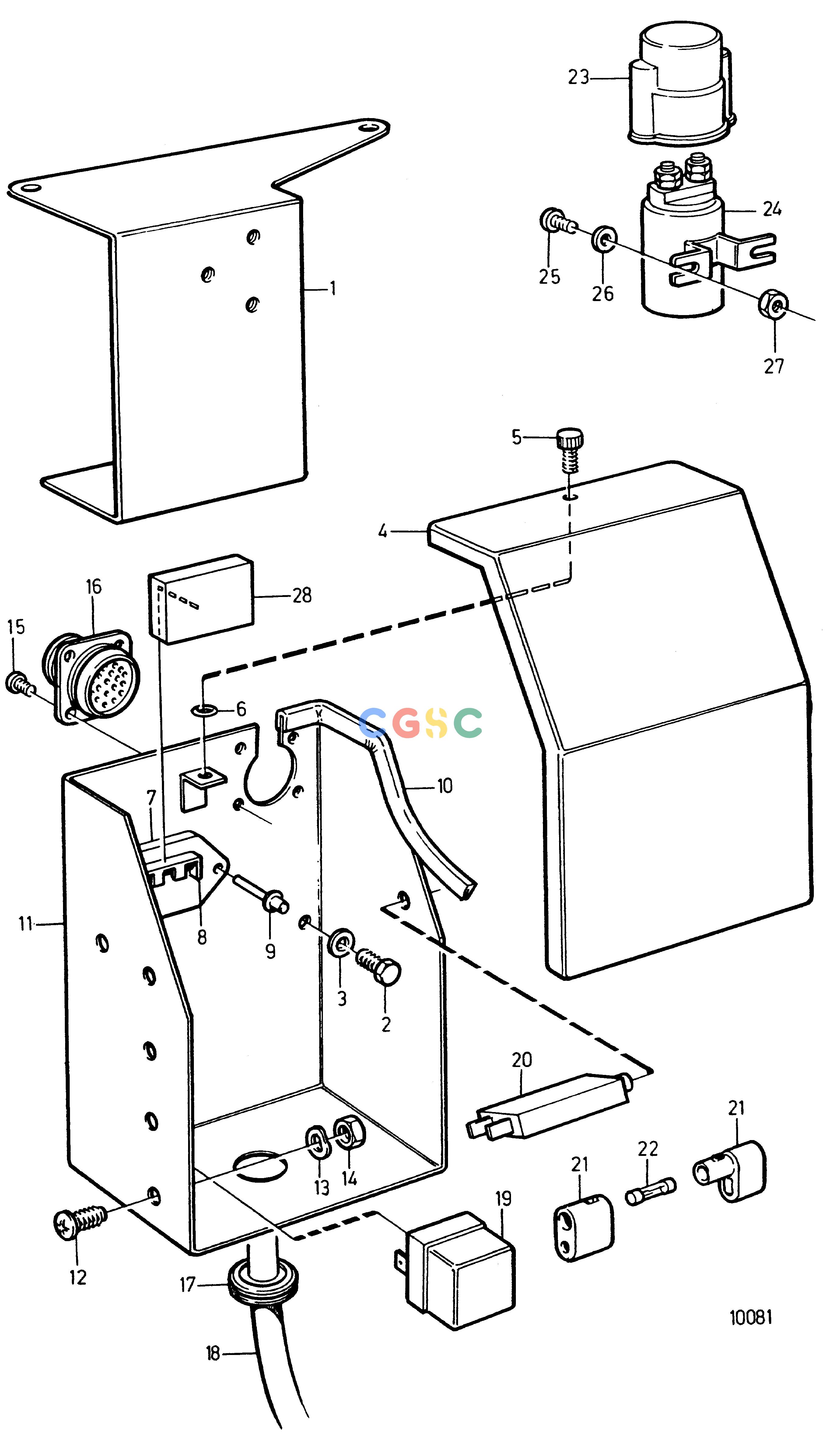

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemDistribution BoxEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
364 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
863739
|
[1] |
Bracket
|
|
| 2. |
956091
|
[3] |
Cross recessed screw
|
|
| 3. |
949607
|
[3] |
Spring washer
|
|
| 4. |
846662
|
[1] |
Cap
|
|
| 5. |
846736
|
[1] |
Lock screw
|
|
| 6. |
925051
|
[1] |
O-ring
|
|
| 7. |
1234048
|
[1] |
Bottom section
|
|
| 8. |
1234263
|
[1] |
Pin
|
|
| 9. |
942670
|
[2] |
Blind rivet
|
|
| 10. |
1214306
|
[1] |
Stop dog
|
|
| 11. |
846660
|
[1] |
Electrical distribut
|
Replaced by 1eu distribution box 3825254.
|
| 12. |
956075
|
[5] |
Cross recessed screw
|
|
| 13. |
941905
|
[5] |
Spring washer
|
|
| 14. |
955780
|
[5] |
Hexagon nut
|
|
| 15. |
955119
|
[4] |
Cross recessed screw
|
|
| 16. |
846611
|
[1] |
Housing
|
|
| 17. |
943920
|
[1] |
Plug
|
(961962)
|
| 18. |
863839
|
[1] |
Cable harness
|
|
| 19. |
3171420
|
[1] |
Relay
|
(9518230)
|
| 20. |
966689
|
[2] |
Fuse
|
8A
|
| 21. |
966334
|
[1] |
Fuse holder
|
|
| 22. |
11433
|
[1] |
Fuse
|
8A
|
| 23. |
1581123
|
[1] |
Casing
|
|
| 24. |
1577376
|
[1] |
Relay
|
Replaced by 1pc relay 872962, 2pcs cable shoes 881493 and 1pc attaching plate 866463.
|
| 25. |
969405
|
[2] |
Six point socket scr
|
(955244)
|
| 26. |
940090
|
[2] |
Washer
|
|
| 27. |
963104
|
[2] |
Lock nut
|
|
| 28. |
9162425
|
[1] |
Upper section
|
(1234264)
|
