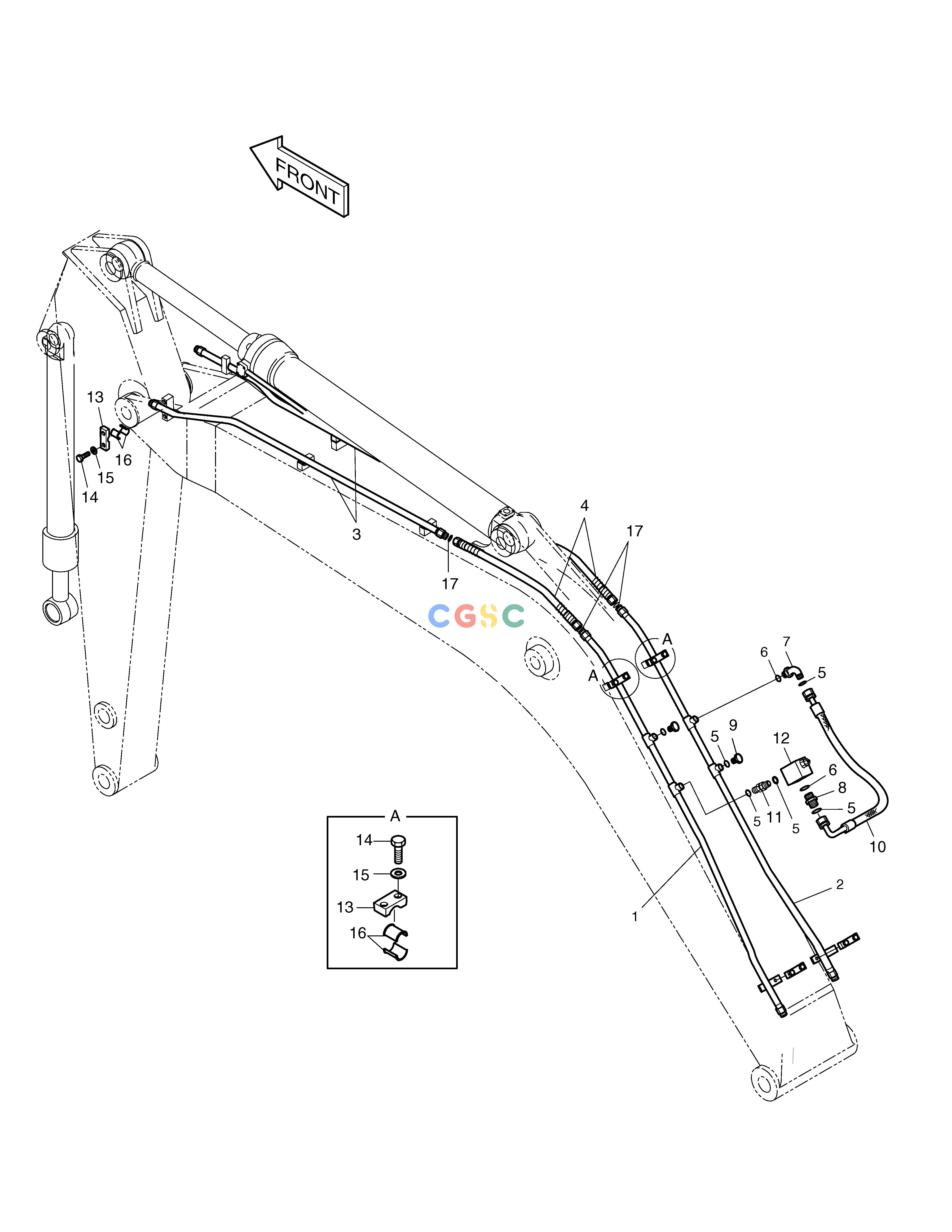

斗山零件查询BOOM PIPING-ONE WAY SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-2156
|
[-] |
BOOM PIPING-ONE WAY
|
|
| 1. |
2140-1690A
|
[1] |
PIPE
|
|
| 10. |
2184-1197D97
|
[1] |
HOSE PF1-700L
|
|
| 11. |
2181-2818
|
[1] |
ADAPTER
|
|
| 12. |
2420-9627
|
[1] |
VALVE;RELIEF
|
2420-9627A
|
| 12. |
2420-9627A
|
[1] |
VALVE;RELIEF
|
|
| 13. |
2124-1693
|
[12] |
CLAMP;PIPE
|
|
| 14. |
S0560953
|
[24] |
BOLT M12X1.75X60
|
|
| 15. |
S5102703
|
[24] |
WASHER
|
|
| 16. |
2161-2505
|
[24] |
RUBBER
|
|
| 17. |
2180-1026D37
|
[4] |
O-RING
|
|
| 2. |
2140-1691A
|
[1] |
PIPE
|
|
| 3. |
2140-1693A
|
[2] |
PIPE
|
|
| 4. |
2184-1196D131
|
[2] |
HOSE PF1 1/4-1200L
|
|
| 5. |
S8000291
|
[6] |
O-RING
|
|
| 6. |
S8030161
|
[2] |
O-RING
|
|
| 7. |
2181-2815D1
|
[1] |
ELBOW
|
|
| 8. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 9. |
2181-1950D9
|
[2] |
PLUG
|
|
