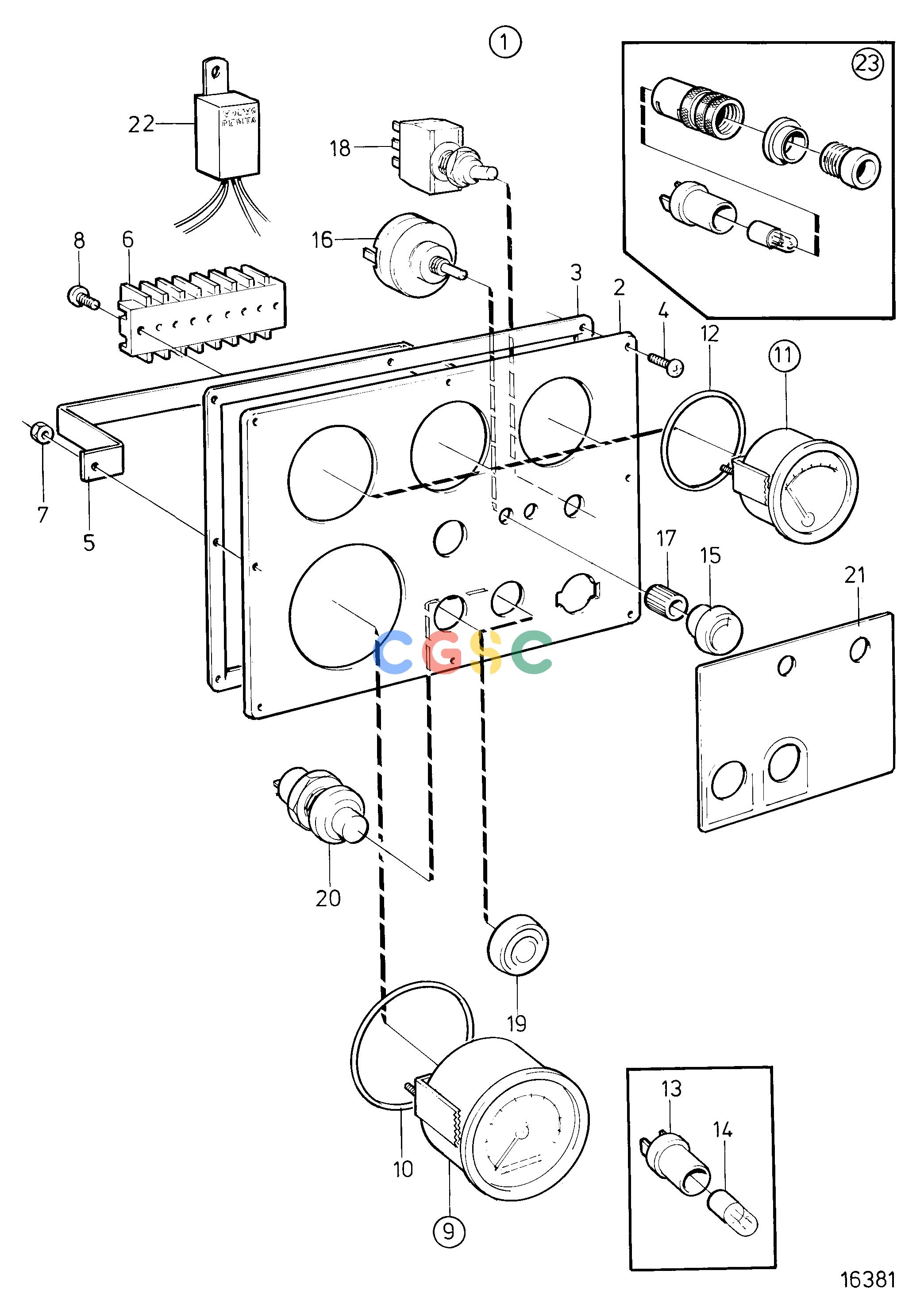

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemInstrument Panel 24V for A Second Control Station. Classifiable SN-1101054003/XXXXXEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1030 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873680
|
[1] |
Instrument panel
|
Repl by 873810
|
| 2. |
862063
|
[1] |
Instrument plate
|
|
| 3. |
862152
|
[1] |
Gasket
|
|
| 4. |
862217
|
[8] |
Cross recessed screw
|
|
| 5. |
862198
|
[1] |
Brace
|
|
| 6. |
862181
|
[2] |
Terminal block
|
|
| 7. |
955779
|
[2] |
Hexagon nut
|
|
| 8. |
956062
|
[4] |
Cross recessed screw
|
M4x14mm
|
| 9. |
872286
|
[1] |
Tachometer
|
|
| 10. |
|
|
|
|
| 11. |
862076
|
[1] |
Thermometer, coolant water
|
|
| 11. |
862079
|
[1] |
Thermometer, oil temperature engine
|
|
| 11. |
862082
|
[1] |
Pressure gauge, oil pressure-engine
|
|
| 12. |
|
|
|
|
| 13. |
808175
|
[4] |
Bulb socket
|
|
| 14. |
828818
|
[4] |
Bulb
|
|
| 15. |
862180
|
[1] |
Knob
|
|
| 16. |
1578846
|
[1] |
Rheostat
|
|
| 17. |
843002
|
[1] |
Nut
|
|
| 18. |
862853
|
[1] |
Switch
|
|
| 19. |
837533
|
[2] |
Rubber cap
|
|
| 20. |
843684
|
[2] |
Button
|
|
| 21. |
|
|
|
|
| 22. |
864150
|
[1] |
Transformer
|
|
| 23. |
862819
|
[1] |
Indicator lamp
|
Included in kit 873810, but will be mounted in the main instrument.
|
