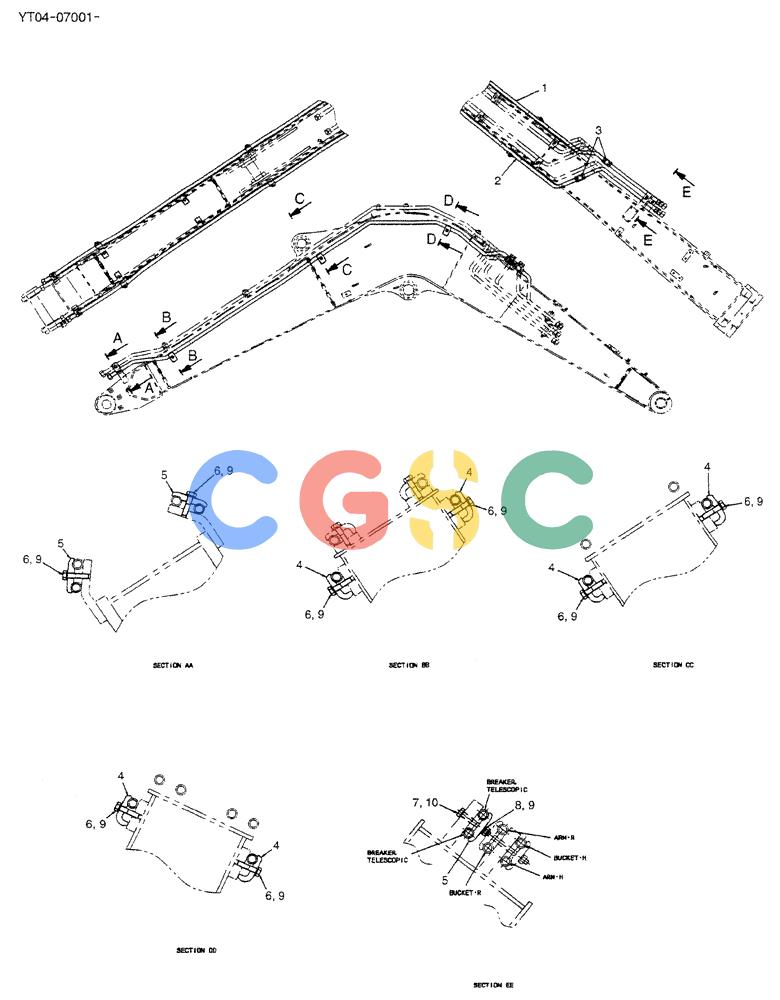

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (02-004) - HYD LINES, BOOM 3.72M (BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
143 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT42H00063F1 | [1] | HYD LINES, BOOM 3. 72M | |
| 1. | YT42H01253P1 | [1] | TUBE | KOB |
| 2. | YT42H01254P1 | [1] | TUBE | KOB |
| 3. | ZE72X12000 | [2] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 4. | ZC26X22011 | [6] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 5. | ZC36X22011 | [3] | CLAMP | KOBDouble Line -- 75x38x13mm (Ø24mm) |
| 6. | ZS18C10045 | [8] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 7. | ZS18C10075 | [1] | SCREW,Hex, M10 x 75mm | KOBM10x1.50x75mm |
| 8. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 9. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 10. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
