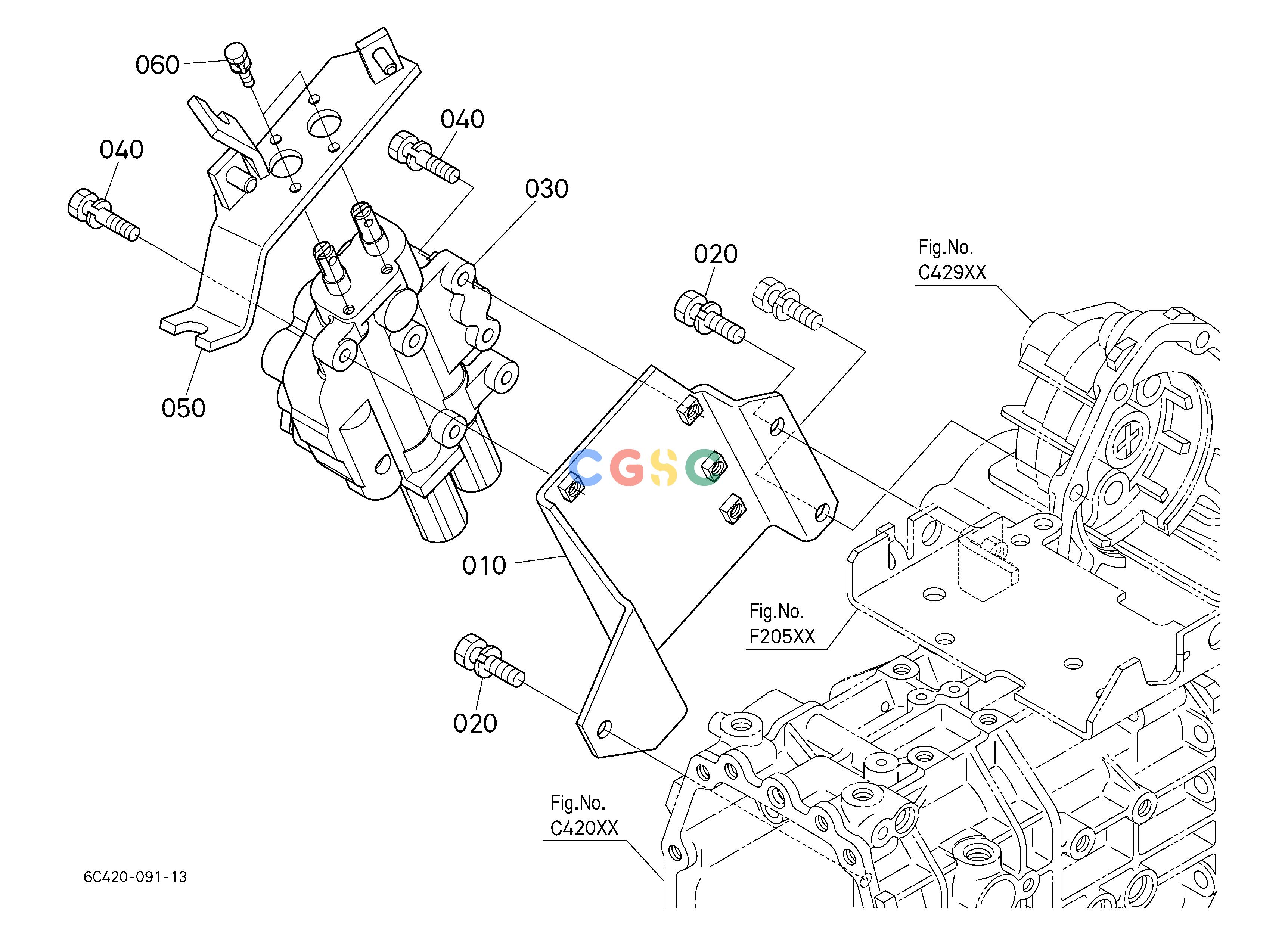

久保田零件查询J28000 LOADER VALVE ## NOTE:ORDER BY REF.No.050 and Fig.No.F11700 REF.No.120 and Fig.No.J28500 REF.No.010,030 NEW PARTS. HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C43038110
|
[1] |
BASE(LOADER VALVE)
|
3.0690(lbs); 1.395
|
| 010. |
6C43038112
|
[1] |
BASE(LOADER VALVE)
|
3.0690(lbs); 1.395
|
| 020. |
0112351025
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 030. |
YW44000100
|
[1] |
VALVE,ASSY(CONTROL)
|
10.8240(lbs); 4.920
|
| 040. |
0112350835
|
[4] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 050. |
6C43038120
|
[1] |
STAY(LOADER LEVER)
|
1.2144(lbs); 0.552
|
| 050. |
6C43038122
|
[1] |
STAY(LOADER LEVER)
|
1.2144(lbs); 0.552
|
| 050. |
6C43038123
|
[1] |
STAY(LOADER LEVER)
|
1.2144(lbs); 0.552
|
| 050. |
6C43038124
|
[1] |
STAY(LOADER LEVER)
|
1.2144(lbs); 0.552
|
| 060. |
0102350616
|
[4] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
