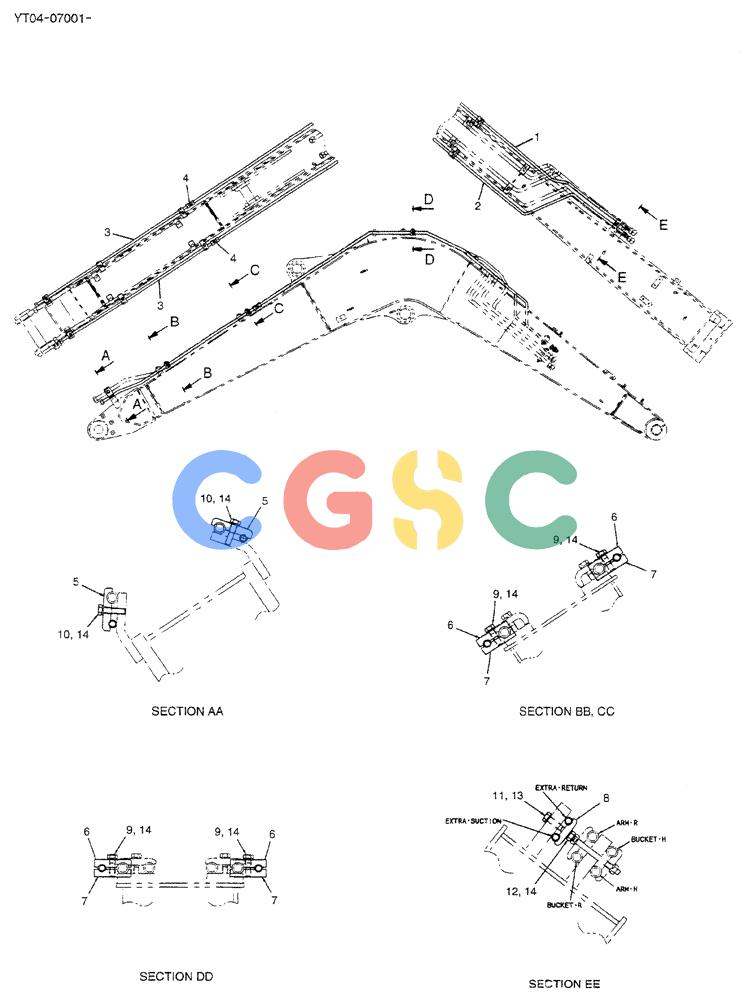

神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK70SR-1E/SK70SR-1ES ASN YT04-07001 (9/04-) (02-006) - HYD LINES, BOOM 3.72M (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
872 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT42H00074F1 | [1] | HYD LINES, BOOM 3. 72M | |
| 1. | YT42H01111P1 | [1] | RIGID TUBE | KOB |
| 2. | YT42H01112P1 | [1] | TUBE | KOB |
| 3. | YT42H01272P1 | [2] | TUBE | KOB |
| 4. | ZA23B15000 | [2] | HYD CONNECTOR | KOB |
| 5. | LE42H01088P1 | [2] | CLAMP | KOB |
| 6. | YT42H01114P1 | [6] | CLAMP | KOB |
| 7. | YT42H01115P1 | [6] | CLAMP | KOB |
| 8. | ZC36X18011 | [1] | CLAMP | KOB |
| 9. | ZS18C10035 | [6] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 10. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 11. | ZS18C10065 | [1] | SCREW,Hex, M10 x 65mm | KOBM10x1.50x65mm |
| 12. | ZN18C10008 | [1] | NUT | KOBM10x1.50mm |
| 13. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 14. | ZW26X10000 | [9] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
