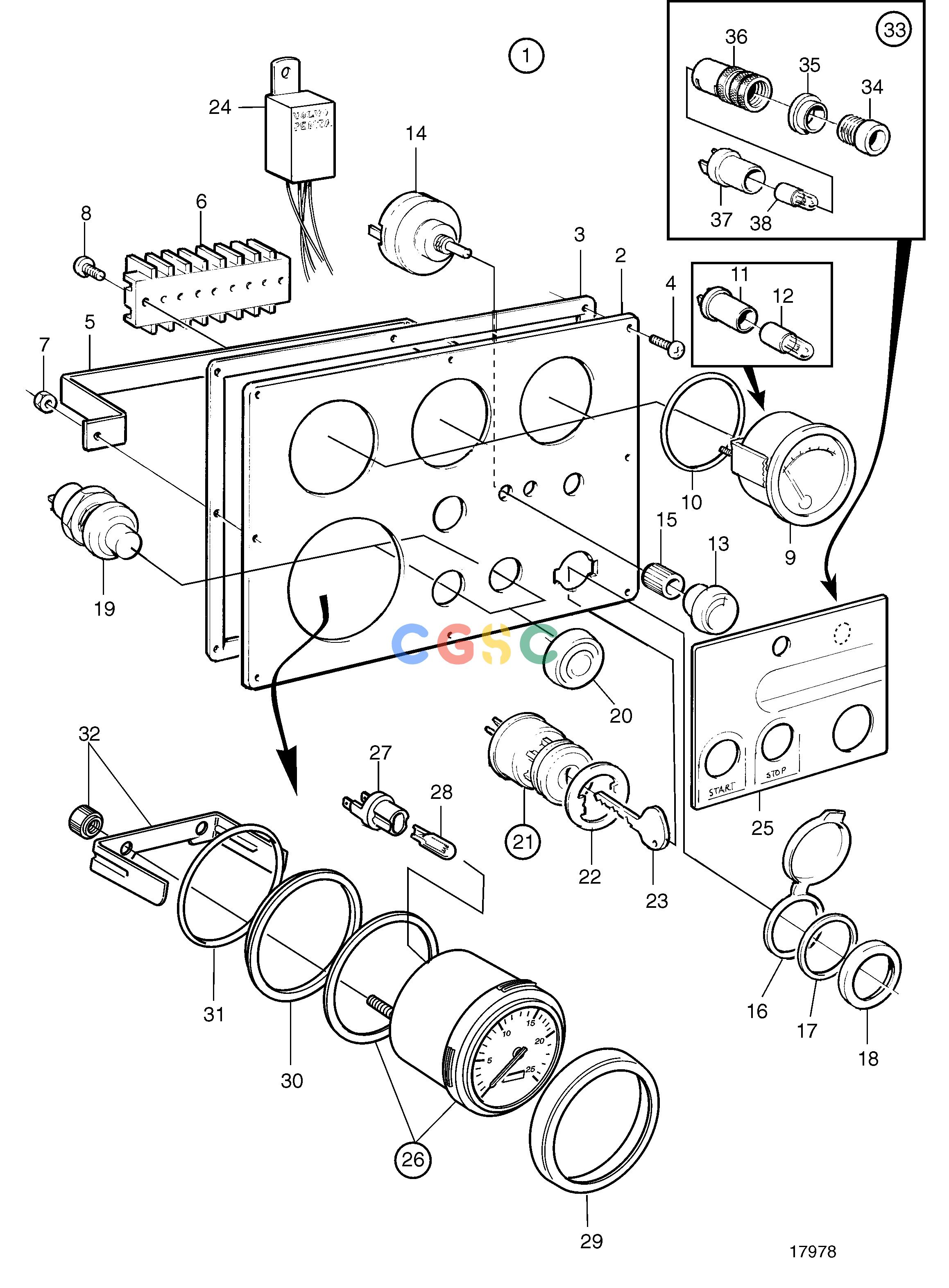

沃尔沃零件查询TAMD162C-C; TAMD163A-A; TAMD163P-AElectrical SystemMain Instrument Panel 24V. Classifiable SN1101054004/XXXXX-EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
591 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
873809
|
[1] |
Instrument panel
|
|
| 2. |
862063
|
[1] |
Instrument plate
|
|
| 3. |
862152
|
[1] |
Gasket
|
|
| 4. |
862217
|
[8] |
Cross recessed screw
|
|
| 5. |
862198
|
[1] |
Brace
|
|
| 6. |
862181
|
[2] |
Terminal block
|
|
| 7. |
955779
|
[2] |
Hexagon nut
|
|
| 8. |
956062
|
[4] |
Cross recessed screw
|
M4x14
|
| 9. |
862076
|
[1] |
Thermometer, coolant water
|
|
| 9. |
862079
|
[1] |
Thermometer, oil temperature engine
|
|
| 9. |
862082
|
[1] |
Pressure gauge, oil pressure-engine
|
|
| 10. |
|
|
|
|
| 11. |
808175
|
[3] |
Bulb socket
|
|
| 12. |
828818
|
[3] |
Bulb
|
|
| 13. |
862180
|
[1] |
Knob
|
|
| 14. |
1578846
|
[1] |
Rheostat
|
|
| 15. |
843002
|
[1] |
Nut
|
|
| 16. |
862151
|
[1] |
Protecting cover
|
|
| 17. |
862308
|
[1] |
Washer
|
|
| 18. |
862466
|
[1] |
Round nut
|
|
| 19. |
843684
|
[2] |
Button
|
|
| 20. |
837533
|
[2] |
Rubber cap
|
|
| 21. |
837437
|
[1] |
Starter switch
|
|
| 22. |
|
|
|
|
| 23. |
240321
|
[2] |
Key, type s
|
State key code when ordering
|
| 23. |
241383
|
[2] |
Key, type e
|
State key code when ordering
|
| 24. |
864150
|
[1] |
Transformer
|
|
| 25. |
|
|
|
Volvo Penta
|
| 26. |
|
|
|
Repl by 874496
|
| 26. |
874496
|
[1] |
Tachometer kit, incl hour-meter
|
2600 rpm, (873995)
|
| 27. |
863945
|
[1] |
Bulb socket
|
|
| 28. |
863947
|
[1] |
Bulb
|
|
| 29. |
873683
|
[1] |
Ring
|
|
| 30. |
873721
|
[1] |
Intermediate ring
|
|
| 31. |
925256
|
[1] |
O-ring
|
|
| 32. |
873208
|
[1] |
Brace kit
|
|
| 33. |
862819
|
[1] |
Indicator lamp
|
Included in kit 873810, but will be mounted in the main instrument.
|
| 34. |
|
|
|
Blue
|
| 35. |
|
|
|
|
| 36. |
819350
|
[1] |
Sleeve
|
|
| 37. |
808175
|
[1] |
Bulb socket
|
|
| 38. |
828818
|
[1] |
Bulb
|
|
